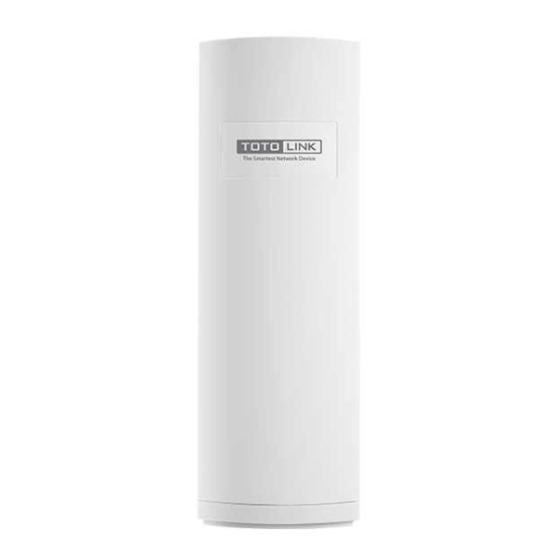

Toto Link CP150 User Manual

Wireless outdoor cpe
Hide thumbs Also See for CP150:
Table of Contents

Advertisement

Quick Links

User Guide
Wireless Outdoor CPE
CP150, CP300
Suitable for:
Manufacturer: ZIONCOM ELECTRONICS (SHENZHEN) LTD.
ADD: Room 702, Unit D, 4 Building Shenzhen Software Industry Base,
Xuefu Road, Nanshan District, Shenzhen, Guangdong, China.
Website: http://www.totolink.net
Copyright ⓒ TOTOLINK., All rights reserved.
Information in this docutment is subject to change without prior notice.
V2.0 | 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP150 and is the answer not in the manual?

Questions and answers

Related Manuals for Toto Link CP150

Summary of Contents for Toto Link CP150

  • Page 1 User Guide Wireless Outdoor CPE CP150, CP300 Suitable for: Manufacturer: ZIONCOM ELECTRONICS (SHENZHEN) LTD. ADD: Room 702, Unit D, 4 Building Shenzhen Software Industry Base, Xuefu Road, Nanshan District, Shenzhen, Guangdong, China. Website: http://www.totolink.net Copyright ⓒ TOTOLINK., All rights reserved.

  • Page 2: Table Of Contents

    Contents 1. Hardware Installation 1.1 Device Mounting 1.2 Network Connection 1.3 Port, Button, LED Indicators Description 2. Typical Application 3. Set Up PC 4. Configure the Device 5. Working Modes 5.1 AP Mode 5.2 Client Mode 5.3 Repeater Mode 5.4 WISP Mode FAQs...

  • Page 3: Hardware Installation

    Hardware Installation 1.2 Network Connection 1.1 Device Mounting Switch Pole Mount PoE Power Adaptor DCP026 1. Attach the groove part of the device to the pole. 2. Thread through the hole of CP300 and ties the straps firmly on the pole. Wall Mount 1.

  • Page 4: Port, Button, Led Indicators Description

    Typical Application 1.3 Port, Button, LED Indicators Description RJ45 PORT RESET (PoE Supported) Port and Button Description This port is used to access RJ45 cable to connect to PoE Power Adapter, meanwhile realize data transmission. With the CPE powered on, press and hold the button for about 10 Reset seconds, the CPE will reboot to factory default settings.

  • Page 5: Set Up Pc

    Configure the Device Set Up PC Right-click “My Network Right-click “Local Area Please set up the CPE following below steps. Places”, click “Properties” Connection”, click “Properties” Run the Web browser. Type 192.168.1.1 in the Web browser address bar, then press Enter. Double-click “Internet Protocol Choose “Use the following IP Input User Name and Password and click “Login”.

  • Page 6: Working Modes

    Working Modes Select the proper Operation Mode as your requirement. TOTOLINK CPE supports multiple Operation Modes to satisfy diversified network requirements, including AP Mode, Client Mode, Repeater Mode and WISP Mode. The following guide introduces 5.1 AP Mode typical scenarios of each mode. Please choose the proper Operation Mode according to your needs.
  • Page 7 Scenario 2 Connect two office areas Access Point LAN: 192.168.1.1 Switch Switch Client WISP LAN: 192.168.1.2 LAN: 192.168.1.1 WAN: Dynamic IP WISP Access Point LAN: 192.168.1.1 LAN: 192.168.7.2 Office Network Office Network WAN: PPPoE AP Settings 1) Go to the CPE’s Operation Mode page. 2) Choose “AP Mode”, setup the CPE’s SSID,Channel and Key Router (pass word), click Finishd.

  • Page 8: Client Mode

    3) After the settings, please connect the PoE Power Adapter LAN port to upper level network device 5.2 Client Mode Scenario 1 IP Camera Access Point Client LAN: 192.168.1.1 LAN: 192.168.1.2 Connect two office areas 3 ) Choose the SSID you need to connect. Enter correct Password, Access Point LAN: 192.168.1.1 click “Finished”.

  • Page 9: Repeater Mode

    5.3 Repeater Mode SSID: abc Smart Phone Scenario 1 Laptop SSID: abc Tablet PC Smart Phone Repeater LAN: 192.168.7.3 Laptop SSID: abc Tablet PC Router Access Point LAN: 192.168.7.1 LAN: 192.168.7.2 3）Select the SSID that you want to connect, enter correct key. Then Repeater click “Next”...

  • Page 10: Wisp Mode

    5) Now setup your PC’s LAN card IP address to “Obtain the IP address automatically. Or you can access the Wi-Fi network through wireless devices. 5.4 WISP Mode Scenario 1 Smart phone WISP Laptop 3 ) Select the ISP Wi-Fi you need to connect. Enter correct Password, Then click “Finished”.
  • Page 11 ① DHCP, the device will obtain IP address from ISP router automatically. PPPoE, please input the User Name and PASSWORD provided by ③ Click “Next” to setup the CPE’s wireless parameters. your ISP, click “Next” to setup the wireless parameters. If your ISP provides static IP address, please choose “Static IP”, and ②...

  • Page 12: Faqs

    6) Now setup your PC’s LAN card IP address to “Obtain the IP address automatically.” Or you can access the Wi-Fi network through wireless devices. 1. How to reset the CPE to factory default Settings? Keep the CPE powered on, press and hold the RESET button on CPE for about 8 seconds, then the CPE will be restored to the factory default settings.

This manual is also suitable for:

Cp300
