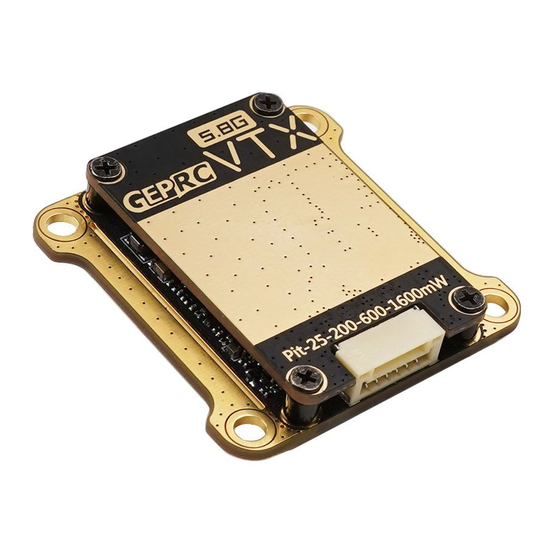

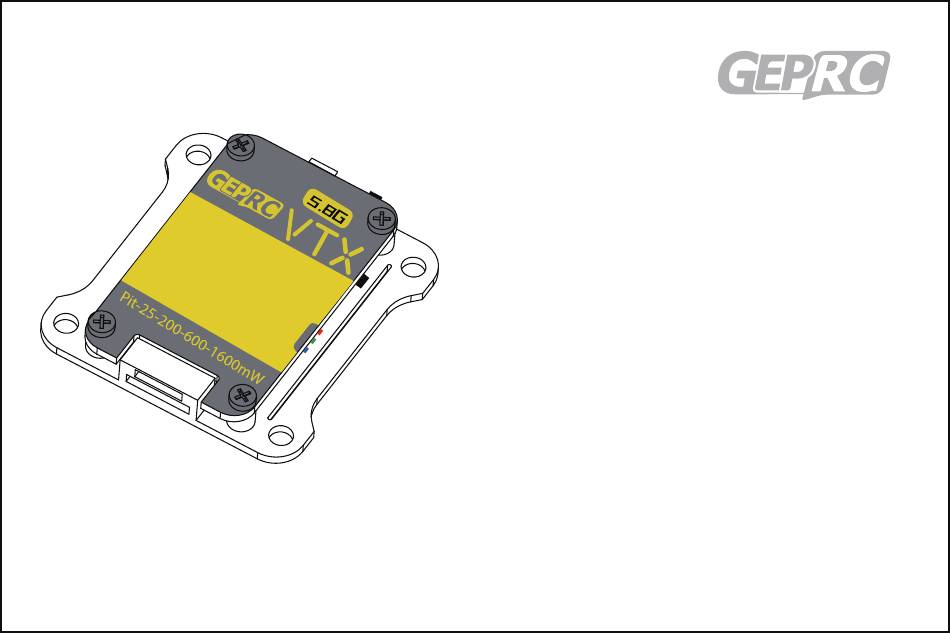

- Page 1 RAD VTX 5.8G 1.6W User Manual...
-
Page 2: Specification
Specification: Model: GEPRC RAD VTX 5.8G 1.6W Input voltage: DC 7-36V(2-8S Battery) Output: 5V@600mA(Power 5V to camera) Input impedance: 75Ω Protocol: IRC Tramp Antenna connector: MMCX connector Cable connector: GH1.25-6P connector Output power: 25mW/200mW/600mW/1600mW/Pit mode Frequency tables: 40 CH/37 CH(FCC)/26CH(EU) Video format: PAL / NTSC Microphone: Built in microphone Size: 36.5mmx36.5mmx5.5mm Weight: 9.7g(without cable) - Page 3 Features: 1. 1.6W super-power ,suitable for Long Range flight with good stability. 2. Five power levels: 25mW/200mW/600mW/1600mW/Pit mode . 3. Two-layer board cooling structure,separate power BEC and main-board,reduc- ing and shielding from the insinal interference. 4. Temperature control protection function that can prevent high temperature burning. 5. Wide voltage input, supports 7V-36V voltage input. 6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment. 7. VTX built in microphone,real-time return of Drone's sounds. 8. Has 3 regional frequency tables to meet the needs of various regions. 9. Two function buttons, three indicator lights, easy to operate. 10. Mounting holes is 30.5mmx30.5mm.
- Page 4 MMCX socket Introduction: BUTTON Both buttons have the same function and are easy to operate Power indicator light Band indicator light CH indicator light Pit-25-200-600-1600mW AGC MIC DC 7-36V 5V OUT...
- Page 5 1. How to set Channel: Press and hold for 3 seconds to enter the Channel Selection: LED Color Blue Flash 1X Flash 2X Flash 3X Flash 4X Flash 5X Flash 6X Flash 7X Flash 8X 2. How to set Band: Press and hold for 3 seconds to enter the Band Selection: LED Color Band A...
- Page 6 3. How to set Power: Press and hold for 3 seconds to enter the Power Selection : LED Color 25mW 200mW 600mW 1600mW Lignt ON Flash 1X Flash 2X Flash 3X Flash 4X WARNING: 1. Install antenna before use. 2.To prevent overheating, provide constant airfiow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
- Page 7 How to use IRC Tramp: 1. Connect the IRC Tramp port to the FC’s free UART-TX . DC 7-36V F722 5V OUT IRC Tramp UART-TX 2. Open BetaFlight ,enter Ports tab,under perlpherals next to the UART-TX which is connected to the IRC port of the VTX select IRC Tramp,save the settings. Peripherals Disabled AUTO...
-
Page 8: Load From File
3. Enter configuraton tab,turn the OSD on under Other Features,save the settings. Other Features AIRMODE Permanently enable Airmode On Screen Display DYNAMIC_FILTER Dynamic gyro notch filtering 4. Enter Video Transmitter tab ,Load from file ,save the settings.(The file can be downloaded from the GEPRC website.) Load from file Table.json... - Page 9 5. Turn on the remote control,THR middle,YAW left,PITCH up,enter the OSD menu. The PITCH moves the cursor up and down, and the ELE right to enter the next item. Finally,save and exit. Mode-2 Mode-1...
- Page 10 - - MAIN - - - - - FEATURES - - - PROFILE BLACKBOX FEATURES LED STRIP FC&FIRMWARE POWER MISC FAILSAFE SAVE / EXIT BACK - TRAMP - X R7 5880 CONFIRM BAND RACE CHAN ( FREQ ) 5880 POWER T ( C ) BACK...
-
Page 11: Frequency Table
Frequency table:... -
Page 12: Warranty Policy
Warranty Policy: 1. If VTX is damaged or unknow issue,please contact GEPRC. We'll do our best to get this taken care of quickly for you. 2. Any impact damage, product liquid damage, high temperature burn or other artificial damage is not covered by warranty. - Page 13 Include: 1 x GEPRC ROS VTX 1.6W 1 x 5.8G Antenna MMCX 72mm 1 x MMCX connector to SMA connector 82cm 1 x GH 1.25-6P connector cables 150mm 1 x Matching screw package Contact: Website: http://geprc.com...
