Summary of Contents for Huazheng HZQ-1090

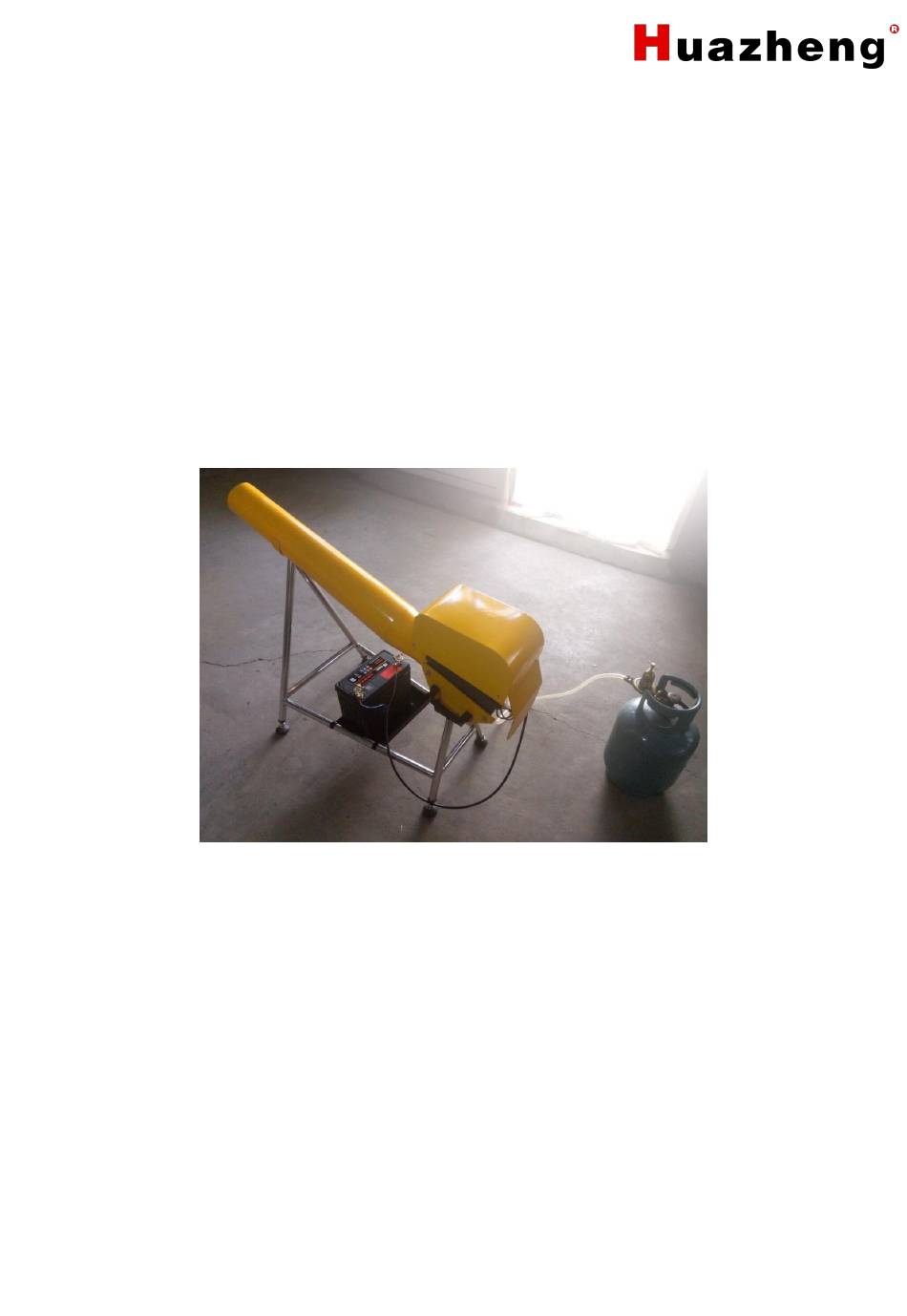

- Page 1 HZQ-1090 LPG Bird Scare Cannon Huazheng Electric Manufacturing (Baoding) Co., Ltd...
- Page 2 Contents I.Product Technical Specification....................1 II.Main Structure of Bird Repellent....................2 III.Attention............................2 IV. Daily Maintenance and Troubleshooting Methods for Bird Repellent........3 IV. Packing List..........................5...
- Page 3 I.Product Technical Specification Airport LPG cannon Bird repellent Model: HZQ-1090 Acceptance technical requirements: 1. Time control: time switch machine, fixed 2 minutes firing or 2-8 minutes random firing mode; 2. The main body of the fuselage is reinforced design to improve the durability of the whole machine;...
- Page 4 II.Main Structure of Bird Repellent 1、Power Line 2、Gas inlet pipe 3、Single chip controller 4、Intake solenoid valve 5、Intake nozzle 6、High pressure ignition head 7、Combustion chamber air inlet 8、Burning chamber 9、Isolation sound film of Gun barrel and combustion chamber 10、Gun barrel 11、connector 12、Medium pressure relief valve III.Attention (1) The gas gun should be placed firmly above the ground surface to ensure that it does not accumulate water at its location.
- Page 5 and quick-connect assembly is clean and clean, so as to avoid damage caused by other impurities. (7) The gas intake pipe is designed as a two-body structure, which is connected by the quick-connect assembly. It is convenient to check whether there is gas residual liquid in the intake pipe, and open the quick-connect assembly to release the gas residual liquid.
- Page 6 If there is no sound from the fire, replace the solenoid valve. If there is still no air intake sound after replacing the solenoid valve, the circuit board is faulty.The most problematic in the actual work of the gas gun is that the gas gun inlet nozzle is blocked. Because impurities in the gas (such as condensate, tar, etc.), these impurities will accumulate the moving parts, it is necessary to clean regularly to keep the equipment working properly.
- Page 7 IV. Packing List Item Main engine Front bracket（Including 2 pieces of connecting parts） Rear bracket（Including 2 pieces of connecting parts） Support tube...
