TS-35A

Thermal Fog Generator

Huazheng Electric Manufacturing (Baoding) Co., Ltd

Table of Contents

Need help?

Do you have a question about the TS-35A and is the answer not in the manual?

Questions and answers

Summary of Contents for Huazheng TS-35A

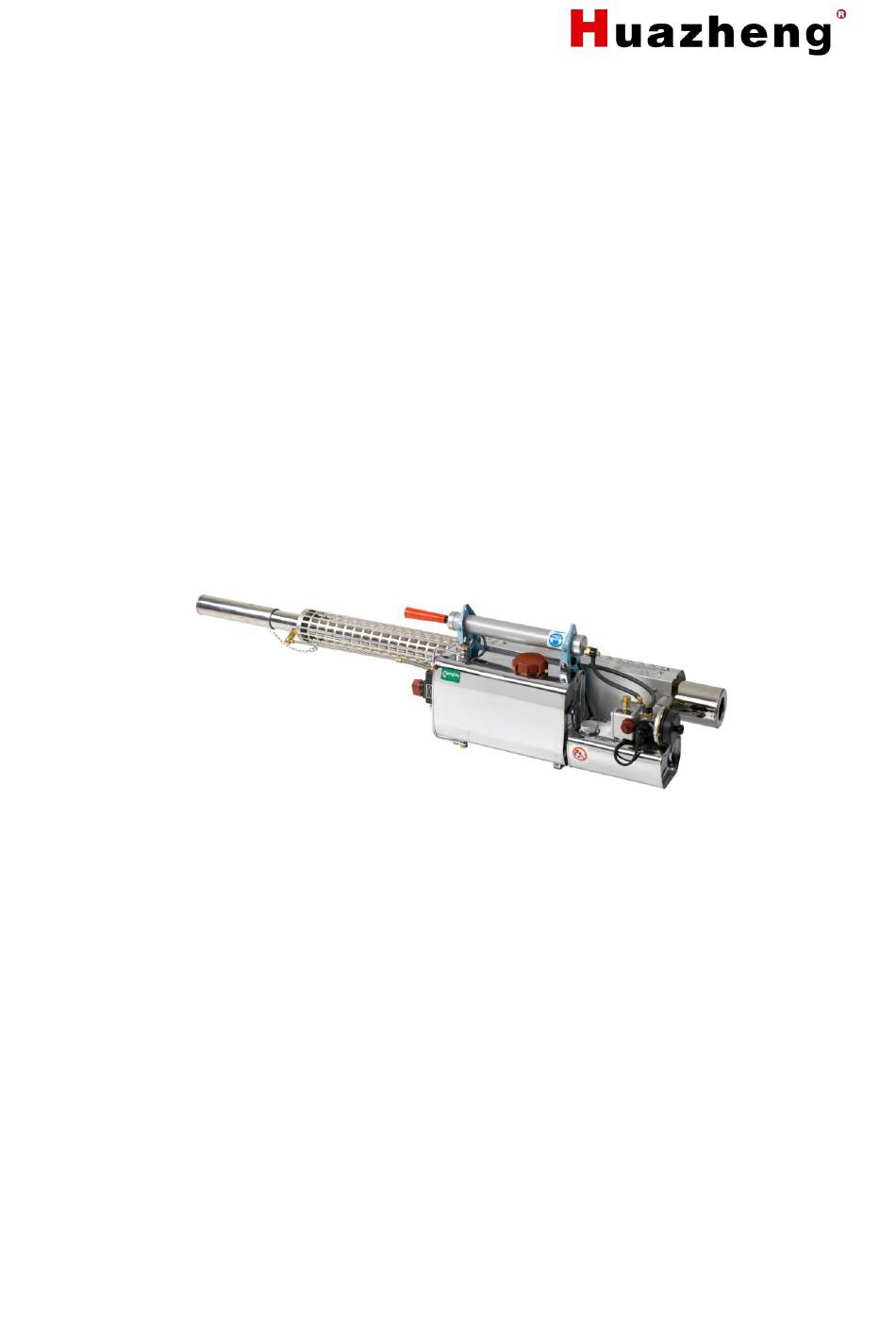

Page 1 TS-35A Thermal Fog Generator Huazheng Electric Manufacturing (Baoding) Co., Ltd...
Page 2: Table Of Contents
Contents Note..............................1 Announcement..........................1 WARNING............................1 TECHNICAL SPECIFICATION..................... 3 INSTALL Fogging Tube Adapter....................3 Operation Method........................... 4 Prepare Operation...........................4 Adjust Knob............................7 Start Up............................. 7 Start Spray Fog..........................8 Stop Machine........................... 8 Push down oil button........................8 Start up skill............................9 Maintenance Tip..........................9 Trouble Shooting...........................
Page 3: Note
Note Forbid spray strong corrosive chemicals, such as peroxyacetic acid, if spray occasionally, use clean water clean chemicals tank, then, start up machine spray clean water for clean inside chemicals pipeline. Announcement Due to product development and improvement, in future, if the user’s manual has any change, we are sorry will not inform additionally.
Page 4 7. When working in closed place, Operator should wear breathing mask. Do not leave the unit working alone unattended. Please note the maximum spraying quantity, do not excess the limit. For indoor operation: If the concentrations of some special carriers which have been dispersed as aerosols exceed certain amounts, could incur fire, so the dosage of these combustible materials if used as fogging formulations should not exceed the following maximum concentrations limit per 1,000.00 CBM.
Page 5: Technical Specification
TECHNICAL SPECIFICATION Performance of combustion chamber, approx. 18.6 KW/25.2HP Fuel consumption , approx. 1.5 L/H Fuel tank capacity 1.5 L Solution tank capacity Pressure in solution tank, approx. 0.25 bar Pressure in fuel tank, approx. 0.06 bar Batteries 4×1.5V Solution output, approx. 8-42 L/H Weight(empty), approx.
Page 6: Operation Method
Knowing Machine, Air pump Igniter button Oil button Carburettor Solution tap Chemical tank Fuel tank Release chemicals Carburettor Accelerator Adjust Knob Operation Method Prepare Operation 1. Remove battery cover and insert 4 pcs 1.5V alkaline battery into battery tube under machine pedestal, fix back battery cover.
Page 7 3. Fill fuel tank Remove fuel tank lid, use funnel to fill gasoline, then tighten fuel tank lid firmly. Note: The filling volume shall better reach 1-2cm position of fuel tank neck. Note: When unscrew or fix back fuel tank lid, do it lightly, do not tight fuel tank lid too tightly, do not break the black rubber O-Ring inside fuel tank lid.
Page 8 5. Make sure solution tap is closed. Handle points to "OFF" position. Knowing solution tap Clean Solution 6. Knowing Button, Pull up is open, Push down is close, 7. Carburettor Accelerator Adjust Knob The “O” scale points to “Convex” mark means Adjust Knob have been located at standard site.
Page 9: Adjust Knob
Adjust Knob 1. Rotate Adjust Knob to anti-clockwise direction for increase power, Rotate to clockwise direction for decrease power. 2. If feel not work strong, could increase power, do not rotate more than 3 scales. 3. Judge Adjust Knob Locate at “Strong” or “Weak” site. Listen engine working sound, If runs normally, explosion should sounds clearly;...
Page 10: Start Spray Fog
Start Spray Fog Turn solution tap handle points to "ON". Notice: 1. Keep machine warm up for 1 minute and keep solution tap in “ON” position. 2. While spray fog, walk against wind direction, spraying to wind direction. 3. Make sure fogging tube keep 2 meters away from spraying targets. Stop Spray Fog Firstly, turn solution tap handle points to “Clean Solution".
Page 11: Start Up Skill
Start up skill Actuate air pump slowly, evenly, and gently, please do not actuate fast and strongly; When start up hot machine, please actuate more slowly, lightly; "Drowning": When start up hot machine, if actuate fast, strongly, it will press too much pressure into fuel tank, the pressure will press too much gasoline into carburetor, so the carburetor will be flooded, in this case, it will difficult start up.
Page 12: Trouble Shooting
Trouble Shooting 1. Could not start up, check below, 1.1 Check igniter, Take out ignition high voltage cap, put on carburettor. Press down igniter button, If hear buzzing sound clearly, sound like “Ta, Ta, Ta…”, means ignition system is ok; If could not heard ignition sounds, check whether battery have enough power, whether igniter button is broken? 1.2 Check whether air intake valve stained, Disassemble air intake valve, clean diaphragm, spacer plates, diaphragm must clean,...
Page 13 1.3 Clean swirl pole, Unscrew swirl pole, make sure the two needles be clean, sharp, symmetrical, if stained, use copper brush to clean deposited carbon, check below, 1.4 Check whether one-way diaphragm is properly placed? Illustration A is in gear, the one-way diaphragm is properly placed; But the Illustration B is not in gear, need fix back appropriately, if the diaphragm is broken, change new diaphragm.
Page 14 Please note: Check photo below, when fix back the one-way valve, please screw it only a little bit tight will be ok, please do not screw it too tightly, if too tightly, the air could not get through, so the machine could not start up, 1.5 Check whether air-pump rubber is broken, if it is broken, please change and fix back appropriately, 1.5 Check whether the rubber O-Ring is lost,...
Page 15 1.7 After check all the above parts is ok, if still could not start up, check below, Take out ignition high voltage cap, unscrew the 2 screws, take out swirl pole, Put finger into the hole where swirl pole have been taken out. Keep put finger into the hole, use left hand to pump air pump, then use finger to feel whether if there have gasoline spray out, if do not have, rotate Adjust Knob of carburetor to increase power a little bit until finger could feel there have gasoline spray out.
Page 16 2.2 If the screw is not jammed, check below, Illustration A is in gear, the one-way diaphragm is properly placed; But the Illustration B is not in gear, the one-way diaphragm is not properly placed, need correct the position of one-way diaphragm.
Page 17: Brief Procedure Start Up Machine
2.4 Check chemicals tank filter, if it is jammed, clean and fix back appropriately. 2.5 If the above parts is ok, check below, Check whether the nozzle is jammed, if it is jammed, clean and fix back appropriately. Note: When the machine is hot, do not change or unscrew the nozzle, or please unscrew the nozzle lightly, do not break the nozzle.
Page 18 hand hold air pump handle while right hand press down igniter button to actuate slowly , Until after heard 1 or 2 explosion sounds, pull up oil button, then, pump a little bit fast will start up machine, if still could not start up, please repeat this procedure.) 5.
Page 19: Parting List
Please note: 1. When steel rope is loose, loose lock-up nut, adjust it, tighten steel rope, then tighten lock-up nut. 2. When the auto-cut device does not work freely, add a few lubricating butter into auto-cut device. Thanks for choosing us, if you have any question or need any further help for use & maintain our machine, please feel free to contact us, we will be very happy to help you.
Page 20 O-ring Φ5×1 36 Plunger Plastic limited block Cross recessed small pan head screws Plastic throttle knob Hexagon socket set screws M3×10 BL-Oil tank O-ring Φ30×3.1 35A-oil tank cover Felt tube oil filter Oil pipeline 35A-hollow bolt O-ring Φ9×2 Tighten nut M5-short hinge screws Articulated body pillow Red gasket...
Page 21 Flat hexagon socket set screws M6x20 M10-transition nut One-way valve body One-way valve gasket One-way valve diaphragm O-ring Φ8×1.5 One-way valve cap Asbestos gasket Φ5×10 M5-copper nut I-type hexagon nuts Rubber tube Long hinge pin 35A-Long air conduct pipe 35A-Drain bolt Catheters Airway pipe Chemicals valve connector...
Page 22 Spool valve Butterfly spring PTFE pad Valve cover Cross recessed small pan head screws M4×25 Drug Valve knob Cross recessed small pan head screws M4×20 5.5-Nozzle 35A-Fluid pipe Copper gasket 35A-Spray connected nail BL-Oil tank cover O-ring Φ56×3.1 35A-Solution tank Cross recessed pan head screw M3×5 Butterfly screw...
Page 23 Cross recessed small pan head screws M5×18 Rubber tube 150mm One-way valve connected nail Red gasket Φ8×12 36-Front pump cover 36-pump cylinder 36-Leather cup 36-Pump plug 36-Core rod pump Cylindrical helical compression spring Φ1.2×Φ14×55 36-Back pump cover Cylinder sleeve Pump shock pad Pump handle 310S-Fog tube joint Linked to buckle assembly...
