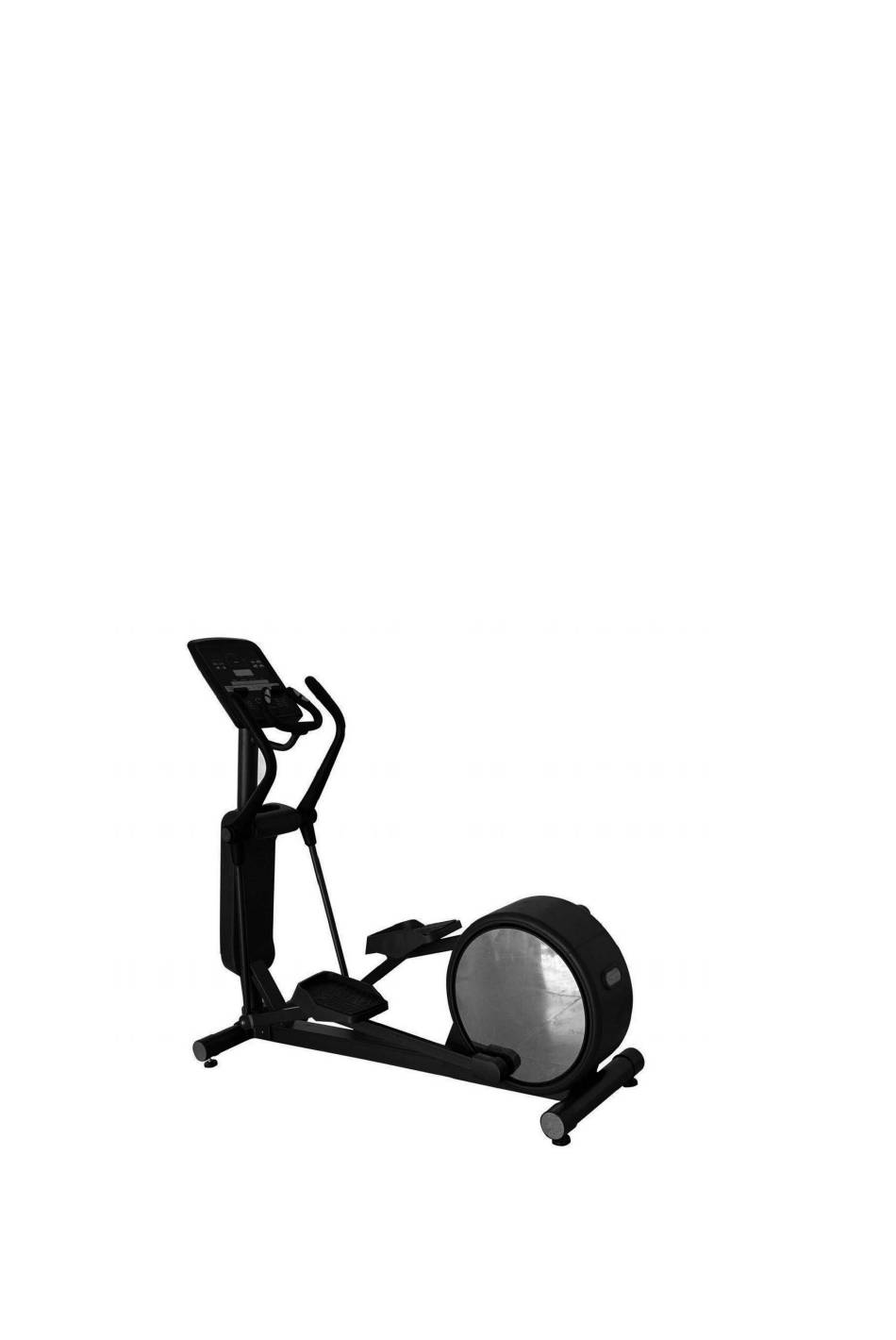

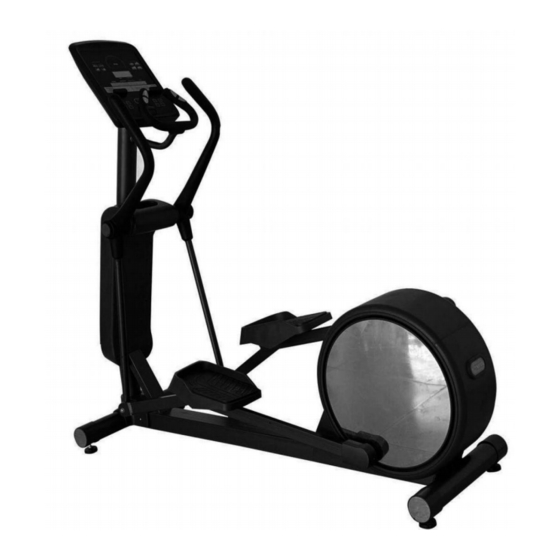

- Page 1 Metagenics Fitness MF-9300 Elliptical INSTRUCTIONS FOR THE USE OF THE ELLIPTICAL MACHINE This instruction must be read in detail before using the equipment...
-
Page 2: Matters Need Attention
MATTERS NEED ATTENTION 1. Please read this instruction carefully before use and pay attention to the following safety matters 2. Check your body and consult your doctor to exercise according to your physical condition 3. Wear the proper sportswear, sneakers 4. - Page 3 equipment 13. Do not remove them by yourself and replace the original parts to avoid accidental injury A Check the body and consult the doctor to exercise according to the physical condition.
-
Page 4: Brief Introduction
BRIEF INTRODUCTION Congratulations on buying the best autoelectric commercial elliptical machine in the current fitness equipment market, and its strong structure, superior performance, safety and reliable, is your indispensable sports equipment. The following figure is the main components and names of the commercial elliptical machine: Schematic diagram of the main parts TECHNICAL PARAMETER... - Page 5 Operating environment temperature: -5°C~ + 40°C Fixed slope: 17.5° Resistance level: 1-20...
-
Page 6: Installation Steps
INSTALLATION STEPS 1. Complete machine display. - Page 7 Wood the box, take out the accessories from top to bottom, Remove all accessories and place them on level ground O Install the head column on the main frame and connect the Detailed assembly steps Detailed assembly: fix the upper watch head column and the main frame pipe with 4 M10 screws.
- Page 8 4. Assembly of the front plastic shell and the main frame, with the specific steps: . Assemble No.1 plastic shell with No.2 plastic shell with M4 screws. . Combine the No.3 plastic shell with the main frame with the M5 screw. .
- Page 9 Step 3: No.4 plastic parts, settle down to 1. 2. 3 plastic parts. 5. Assembly of the forearm and the main frame.Assembly steps: . Install the left and right arms to the main shaft in the illustrated direction and lock with M10 screw. .
- Page 10 6. Assembly of foot and main frame.Assembly steps: . Install the left foot in screw direction. . Install right foot with left foot step...
-
Page 11: Panel Description
Panel description 1. Press the pedal to energize the operation panel, and select the desired motion mode 2. Press the start key to start 3. During motion, you can pause with the pause button Panel and key button description Digital button Time: to match + -use, press the time button, said training target is time, press + -key to change time target distance: + to cooperate with + -use, press the distance button, said training target To cooperate with the + -use, press the program button, press the +... - Page 12 VOL-Adjust the sound and reduce one scale at one volume The TV keypress display panel Time: Display time unit: points.second Distance: Displays the distance in the unit: m Heat: Display heat unit: card Speed: Display speed unit: step / minute Armatrix window: display difficulty level, text prompt.
- Page 13 operation manual Elliptics training Target Training Mode: 1、 Press the pedal to energize the panel for display 2、 select the target. For example: Select a time target: Press time, press + -key to change the time, flash the time value, press the start key to start running, press ▲▼...
- Page 14 Normal operating mode: 1、 Press the pedal to make the panel display 2、 Press Start to run into normal mode 3、 Press ▲▼ can change resistance and all windows are plus counts 4、 Stop and clear the data again.Return to the initial state. Exercise reference 1）...
- Page 15 biggest heart...
-
Page 16: Common Faults And Troubleshooting Methods
maintenance overhaul 1. Cleaning and maintenance Clean the control panel with a damp but not wet cloth Once a week, complete cleaning machines do not use chemicals or dissolving items. 2. Warranty regulations Warranty period is within one year from the date of purchase.For quality problems, please contact us or your local seller.
