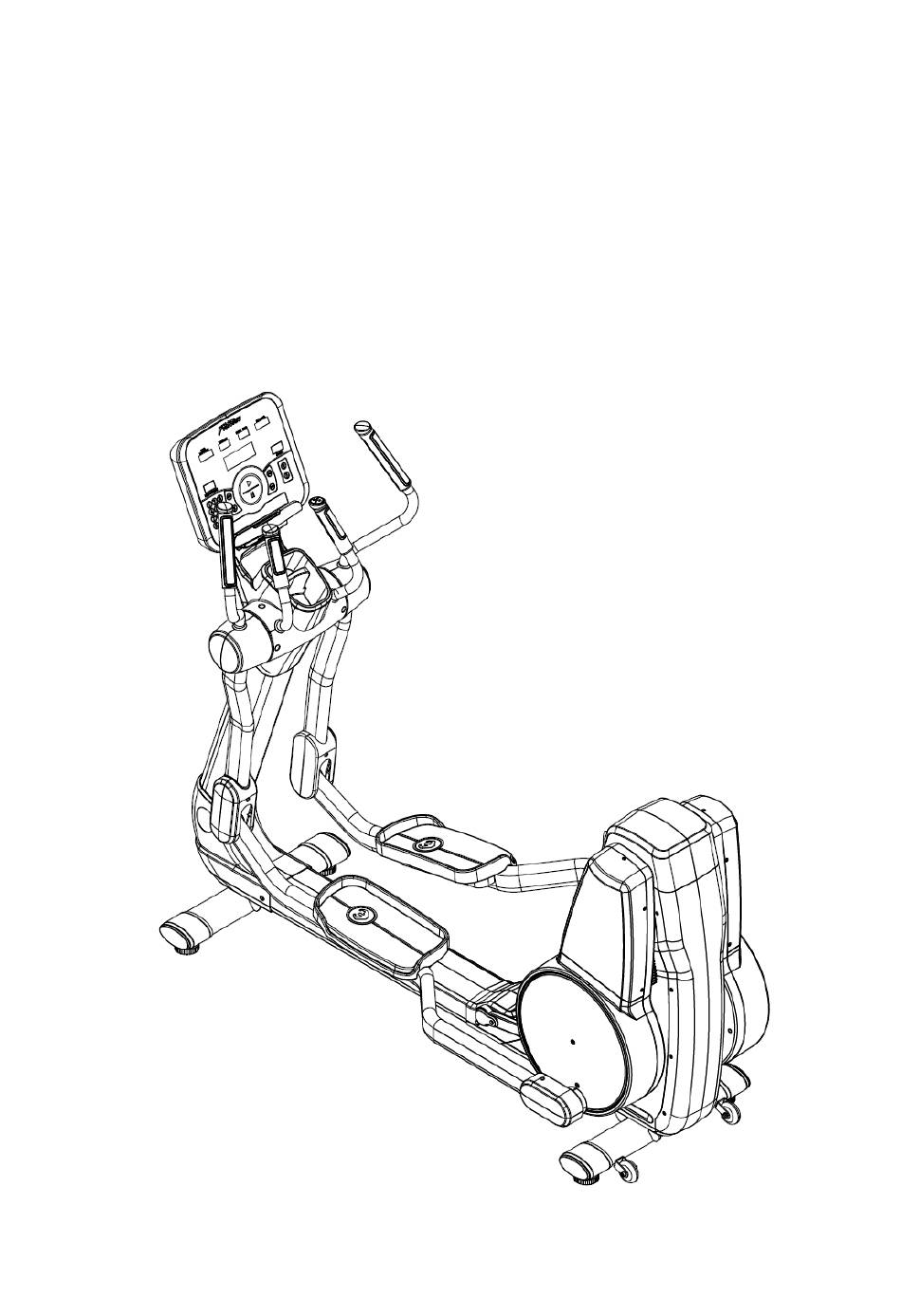

- Page 1 Metagenics Fitness Inc. MF-8000 Elliptical Machine Owners Manual Model: MF-8000 Dear Customer: Thanks for choosing our products, which will bring you health and happiness in the process of using this product.
-
Page 2: Safety Precautions
Safety Precautions Note: Please read this manual carefully before use and pay attention to the following safety precautions. Health-related injuries may result from incorrect or excessive use of exercise equipment. The manufacturer STRONGLY recommends seeing a physician for a complete medical exam before undertaking an exercise program, particularly if the user has a family history of high blood pressure, heart disease, is over the age of 45, smokes, has high cholesterol, is obese or has not exercised regularly in the past year. -
Page 3: Technical Parameters
Technical Parameters Number of resistance levels: 26 . Self-propelled elliptical self generating system. Packing size: wooden box outer size L2200*W850*H1140mm (L87” W33” H45”). Equipment footprint: L2095*W780*H1685mm (L82” W31” H66”) Maximum weight: 180KG/ 400 lbs. Net weight of the elliptical: 200KG / 440 lbs. Assembly Instructions Part 1... - Page 4 Step 1: as shown in the above figure, first attach (left and right moving handles) with A1 (M8*16 cylindrical head socket head cap screws) on the mainframe, and pry out the a1-1 and a1-2 terminals; Step 2: Fix 2 (left and right fixed handles) to the main frame with A3 (M8 self-locking nut), and pry out the b1-1, b1-2, c1-1 terminals.
- Page 5 As shown in the figure above, use B1 ST4.2*12 cross-flowered semi-circular head self-tapping) to fix the plastic parts at the armrest of the boom to the main frame. Section Three Fix the front and rear plastic parts on the main frame with C1 (M5*10 semi-circular head cross-stitch screws) and C2 (ST4.2*12 cross-flowered semi-circular head self-tapping screws).
-
Page 6: Button Functions
System operation instructions Button Functions： Numeric keypad keys: Press the numeric keypad key during exercise to quickly set the number of motion resistance segments; Program key: Press this key to select the motion program (P-1 to P-8). Set button: Press this button to select the sport mode (countdown time mode, countdown distance mode, countdown calorie mode). - Page 7 pauses counting, press this button twice to end the motion Quick Start button: Press this button to start the exercise, and the various sports data starts counting. Mode key: Switch between TIME and DISTANCE at the start of operation, RPM and SPEED display. Stop button: Press this button to stop the motion and the various motion data is cleared.
- Page 8 “pause” button to pause the motion or end the motion. Stop button to stop motion III. Function data display instructions: Item Program Display range Setting Zero Discription range 1.The number of cycles is counted when there 0:00~99:00 0:00~99:59 is no setting. TIME ±1 minute Min Sec Min Sec...
- Page 9 Function Description: 1.Mode: Time (TIME) Mode / Distance (DISTANCE) Mode / CALORIES mode 1) Pedal the elliptical and press “Settings” button in the standby interface, the time window will flash. At this time, press the “ up/down arrows” button to set the target time value.
-
Page 10: Maintenance Schedule
Check contact heart rate function. Console and pedal arms should be cleaned after every workout with a damp cloth with water and or antibacterial neutral solution. • Check tightness on the bolts console and that the elliptical is levelled. Manufactured for Metagenics Fitness Inc. www.metagenics.ca...
