Echo DCS-5000 Operator's Manual
  1. Manuals
  2. Brands
  3. Echo Manuals
  4. Chainsaw
  5. DCS-5000
  6. Operator's manual

Echo DCS-5000 Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

This product contains chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm.
Cancer and Reproductive Harm www.P65Warnings.ca.gov
Read and understand all provided literature before use.
Failure to do so could result in serious injury.
99922205708
© 08/2021 ECHO Incorporated
Operator's
Manual

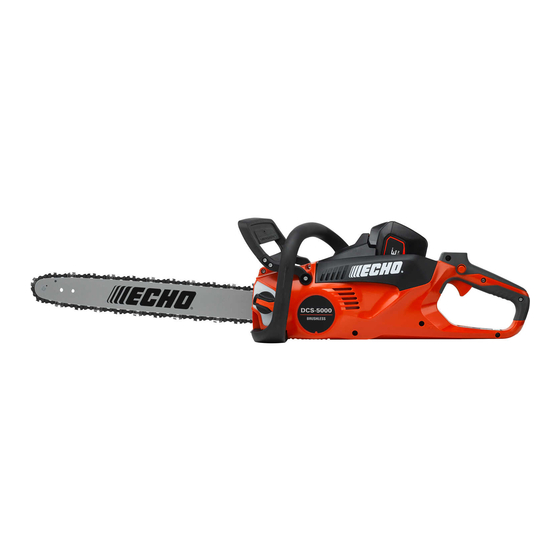

DCS-5000
Chainsaw

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DCS-5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Echo DCS-5000

Summary of Contents for Echo DCS-5000

  • Page 1 This product contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Cancer and Reproductive Harm www.P65Warnings.ca.gov Read and understand all provided literature before use. Failure to do so could result in serious injury. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS DCS-5000 TABLE OF CONTENTS Introduction......................3 Servicing Information......................3 Parts / Serial Number....................3 Service........................4 ECHO Consumer Product Support ................4 Product Registration....................4 Additional Literature.....................4 Packing List........................4 Safety..........................5 Manual Safety Symbols and Important Information..........5 International Symbols....................6 General Power Tool Safety Warnings.................7 General Chainsaw Safety Warnings.................10...

  • Page 3: Introduction

    SERVICING INFORMATION Parts / Serial Number Genuine ECHO Parts and Assemblies for your ECHO products are available only from an Authorized ECHO Dealer. When you do need to buy parts always have the Model Number and Serial Number of the unit with you.

  • Page 4: Service

    Due to packaging restrictions, some assembly may be necessary. After opening the carton, check for damage. Immediately notify your retailer or ECHO Dealer of damaged or missing parts. Use the contents list to check for missing parts. Chainsaw Operator's Manual...

  • Page 5: Safety

    Note: This enclosed message provides tips for use, care and maintenance of the unit. CIRCLE AND SLASH SYMBOL This symbol means the specific action shown is prohibited. Ignoring these prohibitions can result in serious or fatal injury. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 6: International Symbols

    Direct current operate the chainsaw Wear Eye, Ear and Volts Head Protection Chain brake operation Beware of electric shocks Environmentally safe Chain oil fill battery disposal Do not expose the product to rain or moist conditions. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 7: General Power Tool Safety Warnings

    • If operating a power tool in a damp location is unavoidable, use a RESIDUAL CURRENT DEVICE (RCD) protected supply. Use of an RCD reduces the risk of electric shock. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 8 Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. • Maintain power tools and accessories. Check for misalignment or 99922205708 © 08/2021 ECHO Incorporated...
  • Page 9 A charger that is suitable for one type of battery may create a risk of fire when used with another battery. • Use only with ECHO eFORCE™ 56V battery series. Use of any other batterys may create a risk of injury and fire. •...

  • Page 10: General Chainsaw Safety Warnings

    • Do not operate a chainsaw in a tree, on a ladder, from a rooftop, or any unstable support. Operation of a chainsaw in this manner could result in serious personal injury. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 11 39 ˚F (4 °C) ~ 104 ˚F (40 ˚C) Battery storage temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C) Battery discharging temperature range 32 ˚F (0 ˚C) ~ 113 ˚F (45 ˚C) 99922205708 © 08/2021 ECHO Incorporated...

  • Page 12: Environmentally Safe Battery Disposal

    DO NOT put these batteries in your regular household trash. DO NOT incinerate. DO NOT put them where they will become part of any waste landfill or municipal solid waste stream. Take them to a certified recycling or disposal center. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 13: Rules For Safe Operation

    Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback. • Follow the manufacturer’s sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 14: Correct Use Of Chain Brake

    The chain should stop immediately. Release the trigger switch. If the chain does not stop immediately, take the chainsaw to your ECHO dealer to repair. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 15 Chain brakes have been designed and tested to comply with international safety standards as follows: UL 62841-1, UL 62841-4-1, CAN/CSA C22.2 No.62841-1, CAN/CSA C22.2 NO. 62841-4-1 99922205708 © 08/2021 ECHO Incorporated...
  • Page 16 The impact should lock the chain brake. When checking the operation of the automatic chain brake, use a soft surface substance like wood to absorb the impact so the chain is not damaged. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 17: Description

    Locate the safety label(s) on your unit. Make sure the label(s) is legible and that you understand and follow the instructions on it. If a label cannot be read, a new one can be ordered from your ECHO dealer. Safety label is for example only. Your label my appear slightly different.
  • Page 18 Front hand guard/chain brake Front handle Sprocket cover Chain tension adjuster Sprocket cover nuts Spike bumpers Guide bar Saw chain 10. Trigger switch lockout 11. Trigger switch 12. Rear handle 13. Oil tank cap 14. Oil window 99922205708 © 08/2021 ECHO Incorporated...

  • Page 19: Preparation For Use

    Mount the guide bar (D) and slide toward sprocket (E) to make saw chain installation easier. Install saw chain as shown (ensure cutters are pointing in the right direction). Install the sprocket cover over the guide bar studs. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 20 Tighten nuts with the guide bar nose held up. 10. Pull the chain around the guide bar by hand. Loosen the adjustment if you feel tight spots while rotating chain on the bar by hand. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 21 Hold the bar nose up, and turn the tension adjuster (F) clockwise towards (+) until chain contacts underside of the bar. Tighten sprocket cover nuts with the bar nose held up and under tension. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 22 Tighten Sprocket Cover Nuts to 15 - 20 N•m (153 to 204 kgf•cm, 133-177 lbf•in). DO NOT over-tighten nut. Damage to saw can result. Assemble components in reverse order. Keep chain properly tensioned at all times. Note: All chains require frequent adjustments. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 23 Align ridges on battery with groove on chainsaw, and insert battery until battery latch (G) locks and a clicking sound is heard. Removing the Battery To remove battery, depress battery latch (G), and slide battery out of the chainsaw. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 24: Operation

    Chain Lubricant Proper lubrication of the chain while in operation minimizes friction between the chain, the guide bar and sprocket. Use ECHO genuine chain oil or ECHO recommended chain oil specially formulated for bars and chains for proper lubrication. Consult your ECHO dealer for the proper chain oil.

  • Page 25: Starting The Unit

    Note: If the saw chain does not stop when the trigger switch and trigger switch lockout are released, remove the battery to stop the power supply to chainsaw. Have your authorized ECHO servicing dealer repair unit before using again. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 26: Checking Chain Tension

    ◆ This chainsaw is designed for cutting wood. Do not cut metal, plastic or any non-wood material. ◆ Wear suitable hearing protection such as earmuffs or earplugs to protect against objectionable or uncomfortable loud noises. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 27 It is not necessary to press down hard to make the saw cut. Pushing the saw too hard will slow the motor speed and cutting will actually be more difficult. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 28 A falling tree can seriously damage anything it may hit a car, a house, a fence, a power line, or another tree. There are ways to make a tree fall where you want it, so first decide where that is! 99922205708 © 08/2021 ECHO Incorporated...
  • Page 29 Then remove the saw for the second cut. Insert the saw in the first cut, very carefully so as not to cause kickback. The final cut is made by drawing the saw forward in the cut to reach the hinge. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 30 • Keep both hands on the handles at all times. • Support logs if possible. • When cutting on a slope or hillside, always stand uphill. Finish cut First cut Support 99922205708 © 08/2021 ECHO Incorporated...

  • Page 31: Maintenance

    Servicing Dealer for maintenance. To help you decide whether you want to DO-IT-YOURSELF or have the Dealer do it, each maintenance task has been graded. If the task is not listed, see your Dealer for repairs. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 32: Skill Levels

    NOTICE - Time intervals shown are maximum. Actual use and your experience will determine the frequency of required maintenance. MAINTENANCE PROCEDURE NOTES: * Replacement is recommended based on the finding of damage or wear during inspection. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 33: Cleaning Battery And Battery Compartment

    Clean before using. Clean the groove (L) of the guide bar with a small screwdriver. Clean oil holes (M) with a wire. Invert guide bar periodically. Clean the guide bar mount area before installing the guide bar. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 34: Sprocket

    • Drive link serves to remove sawdust from the groove of the guide bar. Keep the lower edge of the drive link sharp where indicated. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 35 • One fifth of the file diameter remains above cutter edge. • Be sure to round off the front edge Depth gauge tool of the depth gauge. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 36 • If the saw chain becomes soiled with resin, for instance, clean it with Parallel kerosene and soak in it oil. Depth gauge To sharpen other chains, follow chain manufacturer’s instructions. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 37: Troubleshooting

    4. Clean the machine. The motor is damaged. 5. Install battery and operate the machine. If the sprocket rotates, it means the motor works properly. If not, call an Authorized ECHO Dealer. 99922205708 © 08/2021 ECHO Incorporated...
  • Page 38 The chain is not Do not let the guide bar lubricated. and the chain operate without sufficient oil. Cool the battery until Incorrect battery storage it decreases to the temperature ambient temperature. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 39: Storage

    If battery is stored for longer than six months, charge it to 100% capacity. Charger Remove battery from charger. Disconnect charger from power supply. Store in a dry, dust-free place, out of the reach of children. 99922205708 © 08/2021 ECHO Incorporated...

  • Page 40: Specifications

    10500 RPM (20 m/s) Guide bar 18A0CD3762 Saw chain 91P062X/91PX62CQ Weight 10.25 lbs (4.65 kg) Battery: Model ECHO eFORCE™ 56V battery series batteries Type Li-Ion Voltage 56 (rated 50.4) Charger type CCCV Charger input voltage 120V AC 60Hz Charger model ECHO eFORCE™...

  • Page 41: Product Registration

    Please go to http://www.echo-usa.com/Warranty/Register-Your-ECHO to register your new product online. It's FAST and EASY! NOTE: your information will never be sold or misused by ECHO, Incorporated. Registering your purchase enables us to contact you in the unlikely event of a service update or product recall, and verifies your ownership for warranty consideration.
  • Page 42 PRODUCT REGISTRATION DCS-5000 99922205708 © 08/2021 ECHO Incorporated...

  • Page 43: Warranty

    ECHO dealer within the warranty period. The expense of delivering the product to the service center for warranty work and the expense of returning it back to the owner after repair or replacement will be paid by the owner. ECHO Incorporated’s, responsibility in respect to claims is limited to making the...
  • Page 44 ECHO Incorporated, does not assume or authorize anyone to assume for them any other obligation. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. ECHO Incorporated, assumes no responsibility for incidental, consequential, or other...
  • Page 45 DCS-5000 NOTES NOTES 99922205708 © 08/2021 ECHO Incorporated...
  • Page 46 NOTES DCS-5000 99922205708 © 08/2021 ECHO Incorporated...
  • Page 47 DCS-5000 NOTES 99922205708 © 08/2021 ECHO Incorporated...
  • Page 48 401CSR000001 - 401CSR999999 ECHO INCORPORATED 400 Oakwood Road Lake Zurich, IL 60047 www.echo-usa.com...
