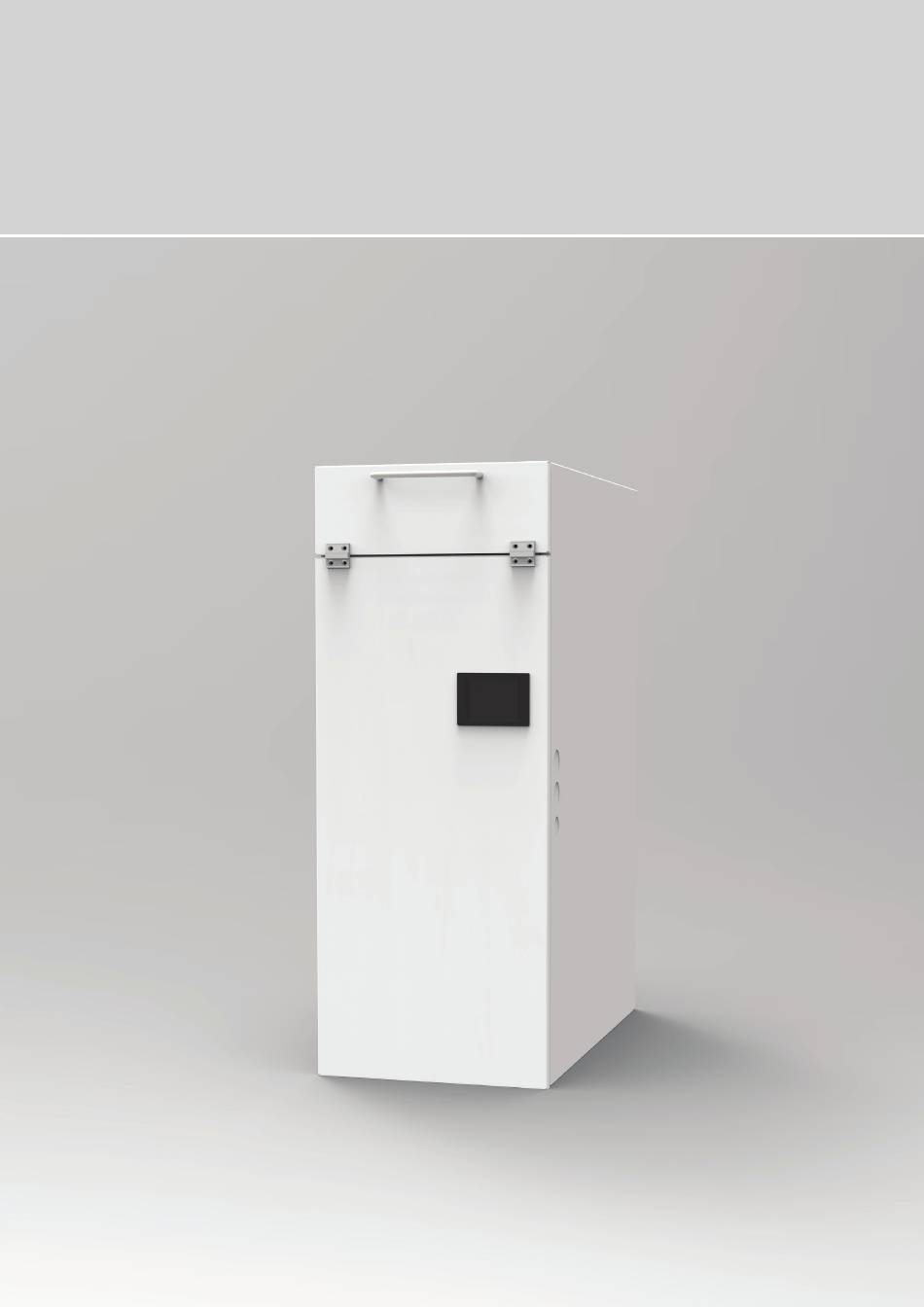

- Page 1 MC-10 Installation instructions Installation, commissioning, maintenance and use of the appliance Indirect air heater equipped with an energy efficient fan with DC motor...
- Page 2 Dimensions Modifications reserved Document: IHL_MC-10_2020...
- Page 3 Exploided view Legenda Number Description Filter cover TFT touch screen panel Filter D3G160 system blower Temperature sensor : return air Heat exchanger Temperature sensor : supply air Hot water return to heat source Hot water flow from heat source Document: IHL_MC-10_2020 Modifications reserved...
-
Page 4: General Information
General information The Multicalor MC-10 air handling units are indirectly fired air hea- The fan of the MC-10 is located on the pressure side of the ters. The units are equipped with generously sized heat exchan- system. This ensures that the fan is always optimally cooled and gers with 6 rows. -
Page 5: Operation Of The Control Unit
In principle, the installer can choose between two different operating modes: the MC-10 air heater can be used as a “slave” or as a “master”. 19:48 If the MC-10 is used as a “slave”, the device does not actively... - Page 6 3.2.3.1 Low, average or high temperatures System Settings On the MC-10, 3 air temperatures can be set: low, medium and Settings regarding the operation of the MC-10 high. To set these values, press the menu button settings, air hea- Screen cleaning ter, system fan and then the first option “fan curve”...
- Page 7 3.2.4 Change system settings 3.2.3.2 Low, medium and high speed On the MC-10, 3 airspeeds can be set for heating: low, medium or high value. To set these values, press the menu button settings, air System heater, then system fan and then the “Air flow” option.
-
Page 8: Display Rotation
System blower 007007 Installer Temperatures The code for user level “technician” is only released after fol- lowing a training course at Multicalor. Under normal circumstances it is not necessary to make any changes to this menu. Modifications reserved Document: IHL_MC-10_2020... -
Page 9: Installation
Installation Structure Important! Please note that the installation of the air heater may only To set up the system as a downflow version, proceed as follows. be carried out by a qualified installer. In addition, the installation must be carried out in accor- 4.2.1 Installation of the discharge plenum (optional) dance with the latest edition of all local standards and the... -
Page 10: Electrical Installation
The diameter of the water pipes is 22 mm. Electrical installation 4.3.1 Supply voltage The MC-10 operates on an electrical power supply of 230VAC~50Hz. Attention: Do not switch on the power supply until all cables are correctly connected. - Page 11 MC-10. 6 Small buff er tank min.40l Attention: Never use the MC-10 without an air fi lter! This can damage the heat exchanger irreparably. When using an open return, it is best to install the corresponding Notes on the principle diagram silencer.
-
Page 12: Maintenance By The Installer
• Set the room thermostat again to the required value. Never remove the air fi lter from an MC-10 unit. The machine must always be fi tted with a EU3 (or better) air fi lter. Heating or venti- lating without a fi lter may pollute the heat exchanger to such an extent that the machine may incur irretrievable damage, which the warranty does not cover. -
Page 13: Electrical Wiring
Heat (I1) Ventilation (I3) Ground (GND) Cool (I2) Return Air BERT2 NTC2 NTC2 NTC1 NTC1 Supply Air +V12 FAN J7 Flat Cable Switch HEAT/COOL HEATPUMP ON BURNER 230VAC/16A UNIT FUSE MC-10 MC-14 MC-20 MC-30 MC-40 Document: IHL_MC-10_2020 Modifi cations reserved... -
Page 14: Warranty
Warranty General Damage incurred during transport, including Multicalor Industries NV guarantees the MC units against all ma- dents, scratches, etc.; nufacturing defects or material faults, subject to the terms and Damage caused by disasters, including fire, conditions described under ‘Scope and duration of the warranty’. -
Page 15: Declaration Of Conformity
Declaration of conformity Multicalor Industries declares that the water-fired air heater MC-10 complies with the Machinery Directive 89/392/EEC, the Low Vol- tage Directive 73/23/EEC and the EMC Directive 89/336/EEC. The fans used comply with the ErP directive 2009/125/EEC, requirement 2015. - Page 16 For more information, please contact your installer: Date of last change 4/11/2020 Manual MC-10 Modifications reserved Multicalor Industries NV • Blarenberglaan 21 • B-2800 Mechelen (Belgium) www.multicalor.be • Tel.: +32 15 29 03 03 • Fax: +32 15 29 03 20 • info@multicalor.be...
