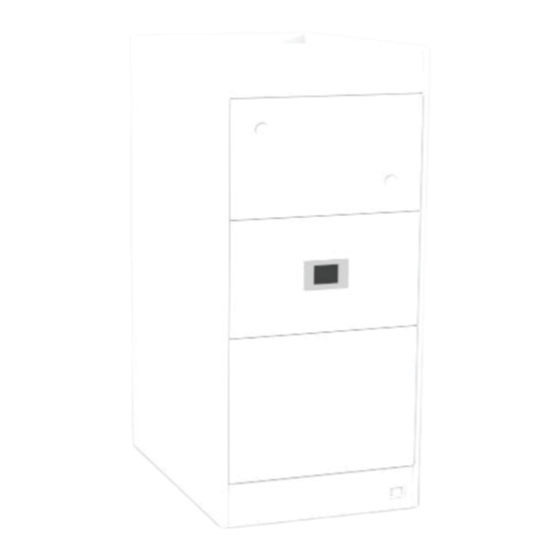

- Page 1 MC-EE Manual MC-EE 20 MC-EE 30 MC-EE 40 Air handlers featuring an advanced electronic modulating controller and electronically commutates high efficiency fan motor (electronically enhanced) Heating Cooling Ventilating...
-
Page 2: Table Of Contents
Table of contents General Technical data General Prestaties van de toestellen Correction factors for other hot water supply- or entering air temperatures Operating and setting General The control panel 3.2.1 Basic screen 3.2.2 Locking Changing settings 3.3.2 Low, average and high speed 3.3.3 Relationship between the air temperature and air speed, fan curve 3.3.4... - Page 3 Dimensions Type MC-20 MC-30 MC-40 Document: IV_MCEE_2016_11_22...
-
Page 4: General
The Multicalor MC units are available as upflow models. If you need a downflow unit, you can turn simply around the unit The MC-EE is fitted with an advanced controller based on an and flip the controller panel. -
Page 5: Operating And Setting
The control panel is equipped with a capacitive touch screen and a TFT colour screen. 3.2.1 Basic screen The following information is displayed on the screen as E40: NTC 1 ERROR standard. Multicalor 28-03-2015 53° Legend Number Meaning Error message Unload button... -
Page 6: Low, Average And High Speed
A number of settings are discussed. Since all screens are accessible through the same process, not all screens will be Air flow (CH) discussed. 3.3.1 Low, average and high temperature Low: Laag: You can set 3 air temperatures on the MC-EE: a low, average or Medium: Midden: high value. -
Page 7: Setting The Language
123456 Power user 007007 Installer The code for the “engineer” user level is only released after fol- lowing training at Multicalor. Changes do not normally have to be implemented in this menu. 3.3.8 Information screens A number of parameters can be read by pressing the informa- tion button on the main menu. -
Page 8: Installation
Installation General Electrical installation • We wish to emphasize that only qualified fitters or con- The electrical installation shall always be performed according tractors shall install the air heater. to the latest issue of the relevant standards and the prescripti- •... -
Page 9: Advanced Options
The PCB features a relay that can make or break an external multiple zone control. condensing unit supply or control line. For further information, please contact Multicalor and the condensing unit manufactu- For more information contact the manufacturer. rer. The coolrequest terminal is RE 1. -
Page 10: Hydraulic Installation, Extended Version
4.4.2 Hydraulic installation, extended version 4.5.2 Fitting the return air ducts • We suggest using valves with following KVS factors: Noise problems are often created if air heaters are used with MC20: KVS10 very short and/or undersized return air ducts. These problems MC30: KVS10 can be avoided by:... -
Page 11: Maintenace
Maintenace Maintenance by the end user Maintenance by the installer 5.1.1 Cleaning the air filter The unit is nearly free of maintenance. It is sufficient to replace The standard air filter is a synthetic air filter with a life span the air filter and to check the unit for leakage and proper of 1 year. -
Page 12: Electrical Wiring
Electrical wiring THERMOSTAT Print 0D1 Green/Yellow L/N/PE C/Rx/Tx/V Print 0DA_MC Brown 0-10V DC Blue DISP J6 Common Heat Cool Vent RE1 RE2 ALL 4 OFF Modifications reserved Document: IV_MCEE_2016_11_22... -
Page 13: Warranty
When the machine proves unsuitable for the purposes for user and entitles the beneficiary of the warranty, through the which the purchaser bought the machine. dealer or the service department of Multicalor Industries NV, to: Repairs • One (1) year free exchange of faulty parts;... -
Page 14: Statement Of Compliance
Statement of compliance Multicalor Industries declares that the air handlers • Multicalor MC 20 • Multicalor MC 30 • Multicalor MC 40 meet the provisions of the machine directive 89/392/EEC, the low-voltage directive 73/23/EEC as well as the EMC directive 89/336/EEC. - Page 15 Document: IV_MCEE_2016_11_22 Modifications reserved...
- Page 16 For more information contact your installer Last modification 22 november 2016 Multicalor Industries NV • Blarenberglaan 21 • B-2800 Mechelen (Belgium) www.multicalor.be • Tel.: +32 15 29 03 03 • Fax: +32 15 29 03 20 • info@multicalor.be...
