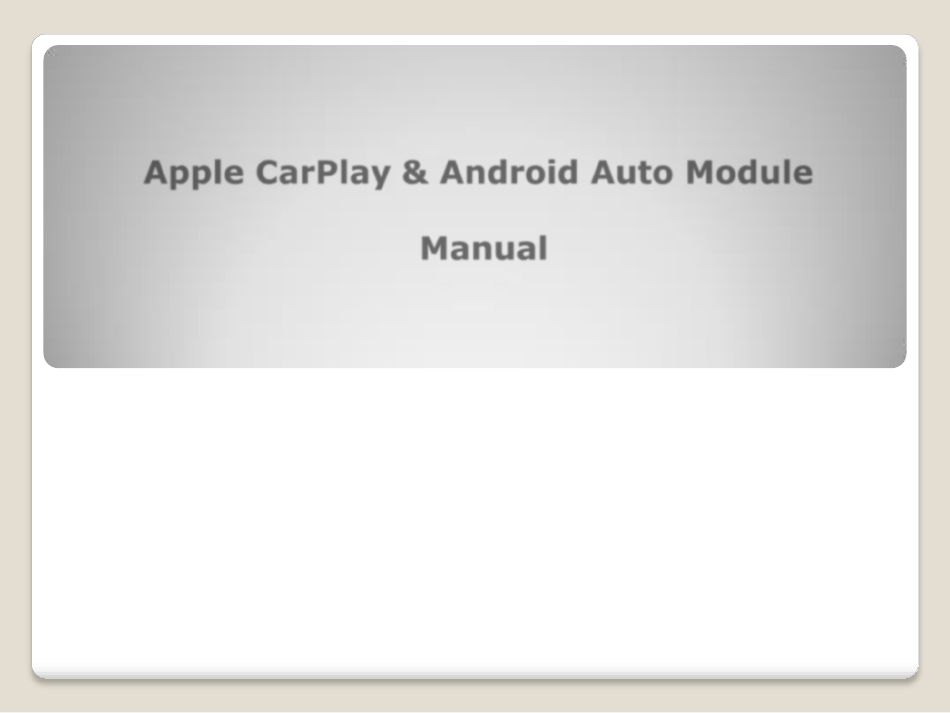

- Page 1 Apple CarPlay & Android Auto Module Manual...
- Page 2 Main Spec. 1. Input Spec. - 1 x USB Input - 1 x Microphone Input - 1 x Real Analog Touch Input 2. Output Spec. - 1 x LVDS(HDMI Connector) Output - 1 x Audio L/R (3.5Ф Stereo Jack) Output - 1 x Mono Speaker 3.
- Page 3 Dimension 82mm * 134.5mm * 23mm 82mm 23mm 134.5mm * This can change under manufacturer’s circumstance...
-

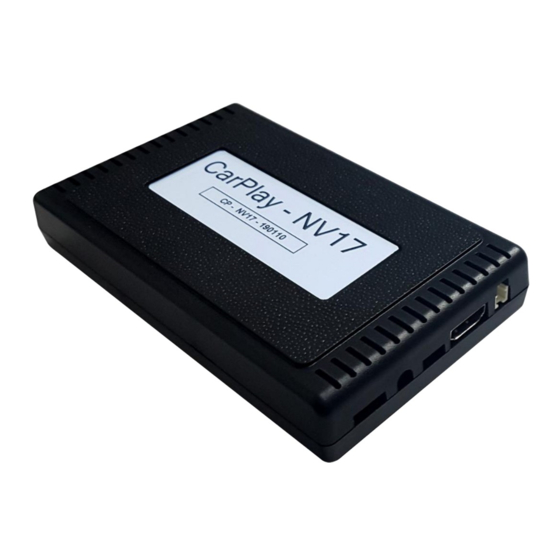

Page 4: External Appearance
External Appearance... -
Page 5: Product Composition
Product Composition TOUCH Cable 1 Ea (optional) Interface 1 EA HDMI Cable 1 EA AUX Cable 1 EA SPEAKER 1 EA (Optional) Microphone 1 EA SPEAKER Cable 1ea (Optional) Power Cable 1 EA... - Page 6 External Appearance Smartphone Connection Made Switch to Microphone Input Enter Setting Speaker Touch POWER/CAN LVDS&UART...
-
Page 7: Connector Pin Assignment
Connector Pin Assignment *Touch Connect *POWER Connect ① ② ① ② ③ ④ ① Y- ① ACC ② GND ② X- ③ Y+ ④ X+... - Page 8 Setting ① ② Press the setting button for 3 When the above menu appears, press the setting seconds. button for 3 seconds. ③ ④ Correct the touch when the screen Vehicle must be powered on without OEM touch changes. display.
- Page 9 Install Manual Iphone 4P LVDS & UART Interface Apple CarPlay Screen...
- Page 10 Q & A 1. Check the LED status first when interface failure.. - If there is no abnormality after the power is applied, the green LED flashes in units of 1 second. - If the red LED flashes for 1 second, there is no. - If the red LED is on continuously, the interface itself is bad.
