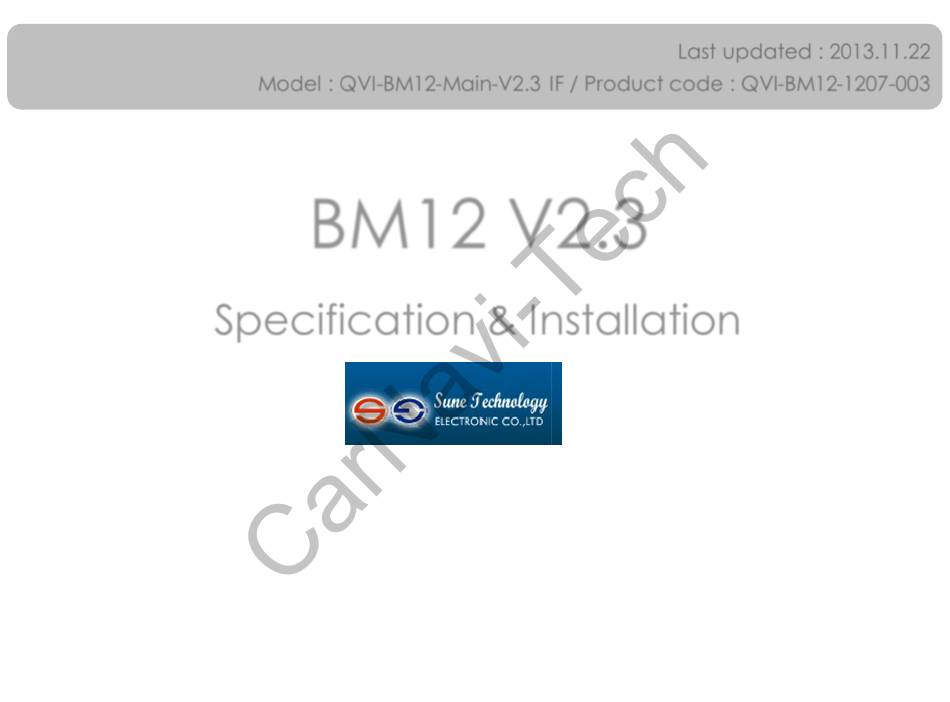

Last updated : 2013.11.22
Model : QVI-BM12-Main-V2.3 IF / Product code : QVI-BM12-1207-003
BM12 V2.3
Specification & Installation
SUNE TECHNOLOGY ELECTRONIC CO., LTD
No.9, Land 606,Anping Rd., Tainan City 70849 Taiwan
Tel: +886-62292246 Fax:+886-62288104
Website http://www.sune-tech.com
Shop http://www.carnavi-tech.com
Skype : hsin_han99 or sune_tech
Your best partner for better driving
Advertisement
Table of Contents
Related Manuals for CarNavi-Tech BM12 V2.3 Series
Summary of Contents for CarNavi-Tech BM12 V2.3 Series
- Page 1 Model : QVI-BM12-Main-V2.3 IF / Product code : QVI-BM12-1207-003 BM12 V2.3 Specification & Installation SUNE TECHNOLOGY ELECTRONIC CO., LTD No.9, Land 606,Anping Rd., Tainan City 70849 Taiwan Tel: +886-62292246 Fax:+886-62288104 Website http://www.sune-tech.com Shop http://www.carnavi-tech.com Skype : hsin_han99 or sune_tech Your best partner for better driving...
-
Page 2: Table Of Contents
Contents 1. Before installation 1.1 Main specification 1.2 Features 1.3 System diagram 1.4 Components 1.5 Exterior 2. Setup 2.1 DIP switch 2.2 Setup for car model & navigation 2.3.1-3 Factory mode 2.4.1-2 Input DVD, DTV and I-Drive 2.5 Original Button Usage 2.6 Remote Control Usage 2.7.1-2 Setup for Rear View Camera 2.8 Parking Guide line... -
Page 3: Main Specification
1.1 Main specification 1. Compatibility BMW New 1,3,5,7 series 6.5’’ & 8.8’’ &10.2’’ 2. Product composition Multimedia Interface * 1ea 3. MULTIMEDIA INTERFACE input spec. 3 * A/V input (external video input) 1 * CVBS input (rear camera source input) 1 * Analog RGB input (navigation system output) 1 * LCD input (car system input) 4. -
Page 4: Features
1.2 Features Installation from the direction of the command NAVI, DVD and DTV control via I-drive controller Control position of the DVD, navigation image Screen Display improvement (user convenience-intended interface) Mode change via original button(Menu button in I-DRIVE) ... -
Page 5: System Diagram
1.3 System diagram Remote control Switch for source toggle OEM Button (Can Intrface) NAVIGATION Input (Analog RGB) DISPLAY Car Installation A/V 1 OEM LCD VIDEO MUX A/V 2 VIDEO CIRCUIT A/V 3 CVBS (Rear camera) Car Screen Input POWER A/V OUT (CAR MAIN BOARD) CIRCUIT HEADREST... -
Page 6: Components
1.4 Components IR cable * 1EA Mode cable * 1EA MONITOR POWER cable * 1EA (HARETC0001) (HIRCAB0002) (HPOWER0023) LCD cable * 1EA (HLCDCA0005) A/V cable * 1EA Remote control * 1ea (HAVCAB0002) (REMOTE0001) REAR CAMERA POWER cable * 1EA (HARETC0002) POWER cable (7P) * 1EA (HPOWER0002) RGB cable * 1ea... - Page 7 1.4 Components(Option) 10.2” Touch Panel (TOUPAN0002) 8.8” Touch Panel (TOUPAN0012)
-
Page 8: Exterior
1.5 Exterior Dimension ⑩ ⑨ ⑧ ⑦ ⑤ ⑪ Horizontal length 150.4mm Vertical length 99.4mm Height 23.2mm ① POWER ⑥ ② RGB(IN) ③ REAR CAMERA POWER ④ A/V(IN/OUT) ⑤ LCD-OUT ⑥ LCD-IN ⑦ POWER OUT ⑧ IR ⑨ MODE ⑩ LED ①... -
Page 9: Dip Switch
2.1 DIP switch ※ ON : DOWN / OFF : UP Function Dip S/W Selection default : ON (DIP #8) ON : skip RGB mode Displaying RGB input OFF : display RGB mode ※ DIP S/W usage example ON : skip A/V 1 - Input Mode : A/V2, A/V3 Displaying A/V 1 - Original Navigation... -
Page 10: Setup For Car Model & Navigation
2.2 Setup for car model & navigation FACTORY mode – Press ◀ button 2 seconds long on the remote control. Setup for car model Setup for navigation UTIL – NAVI MODEL UTIL - CAR MODEL IMAGE Definition of the navigation Selecting model of the car Adjusting the position and the size of navigation... -
Page 11: Factory Mode
2.3.1 FACTORY mode FACTORY mode – Press ◀ button 2 seconds long on the remote control. UTIL - AVOUT SELECT UTIL - FACTORY RESET Selecting background sound After returning navigation or original mode FACTORY MODE RESET DEFAULT : Selecting AV sound just before changing navigation or original mode from the AV mode AV 1~3 : Sound of the selected AV... - Page 12 2.3.2 FACTORY mode FACTORY mode – Press ◀ button 2 seconds long on the remote control. I_DRV - I_DRV REMOTE I_DRV/ I_DRV CONTROL Selecting model of navigation and DTV Selecting whether to use I_DRV respectively to control I_DRV function function or not ML 740T ON / OFF ARION...
- Page 13 2.3.3 FACTORY mode FACTORY mode – Press ◀ button 2 seconds long on the remote control. I_DRV – IR MEMORY Set DVD, DTV remote control value to control with I-Drive - To use this function, select User Mode on I_DRV-I_DRV REMOTE. DVD / DTV I_DRV –...
-
Page 14: Input Dvd, Dtv And I-Drive
2.4.1 Input DVD, DTV I-DRIVE What is IR-MEMORY Mode? Is to allow I-Drive to control other DVD or DTV (besides the existing,; for example : SANYO, NECVOX) by register remote control value. >>> ① Press ◀ button 2 seconds long on the remote ②... - Page 15 2.4.2 Input DVD, DTV I-DRIVE >>> Example) continue from slide 13 ③ After value input, select INPUT on OSD c. While pressing button, remote control’s value will menu ,press YES button (picture above) for saving appear (picture above) in green color and automatically input value and press NO for cancel all input value.
-
Page 16: Original Button Usage
2.5 Original Button Usage Mode Operation Function Press long Changing modes MENU Press short Getting back to Original image Whole Mode Press short Changing modes Audio Changing modes Press short Button no.8 + Changing car AUX Rear Press short Activating PIP function (Steering Camera wheel) - Page 17 2.5 Original Button Usage Mode Operation Function Press long Changing modes MENU Press short Getting back to Original Whole Press short Changing modes Mode Audio Changing modes button Press short + Changing car AUX no.8 Press this button 2 seconds ▽...
-
Page 18: Remote Control Usage
2.6 Remote control usage Function POWER & PIP Unavailable MENU Activating OSD menu Making a selection, changing image display Moving upward ▲ (If you press this button 2 seconds long, “Hot key” function will activate/ deactivate.) ▼ Moving downward Moving leftward ◀... -
Page 19: Setup For Rear View Camera
2.7.1 Setup for rear view camera FACTORY mode – Press ◀ button 2 seconds long on the remote control. UTIL - REAR SELECT PARK Selecting how to detect the rear view PARK ENABLE : Selecting whether to display the parking guide line or camera not on rear gear (default : ON) LAMP : Detecting the rear view... - Page 20 2.7.2 Setup for rear view camera(6.5”) Setup for displaying rear view 1 Series (F20) : Press button short on steering wheel, you can choose full screen or PIP screen as shown below. QDIS < Full real view on screen > QDIS <...
- Page 21 2.7.2 Setup for rear view camera(8.8”) Setup for displaying rear view 1 Series (F20) : Press button about 2 seconds long on I -Drive, you can choose full screen or pip screen as shown below. QDIS < Full real view on screen > QDIS <...
- Page 22 2.7.2 Setup for rear view camera(8.8”) In case of 3D GUI(PDC) 1. After setting Dip Switch NO.6 to “ON”, Select Car model “F20” (FACTORY MENU→CAR MODEL→F20) ※ If PIP Screen is unstable in “F20” car model, select “F20-7” <Rear Camera Full screen> <3D PDC Full Screen>...
-
Page 23: Parking Guide Line
2.8 Parking guide line Factory Default : DISPLAY - DISABLE You can enter “Park setup” in Factory Menu and move ‘’H-POS → V-POS’’ in sequence by pressing “OK” button on the remote control. H-POS If you need to move the horizontal position, press △,▽... -
Page 24: Osd (On Screen Display)
2.8.1 OSD (on screen display) Analog RGB Mode IMAGE COLOR UTIL BRIGHTNESS RED : Adjusting red LANGUAGE : Choosing FACTORY RESET : Resetting OSD language while using all the data about the GREEN : Adjusting green Touch OSD relevant mode CONTRAST (English, Chinese only) (applicable to navigation,... - Page 25 2.8.2 OSD (on screen display) Video mode IMAGE UTIL BRIGHTNESS LANGUAGE : Choosing OSD FACTORY RESET : Resetting all the CONTRAST language while using Touch OSD data about the relevant mode CONTRAST (English, Chinese only) (applicable to navigation, A/V, DTV, rear mode respectively) SHARPNESS TRANS : Adjusting transparency of...
-
Page 26: Installation Diagram
3.1 Installation diagram Original Monitor Original LCD cable Offered LCD cable Offered 2P Power Cable Control box Original CAN Control box ※ Connect CAN-high (Green+Brown) of the interface to Yellow+Red cable of the car. ※ Connect CAN- REAR-C low(Green) of the SAFE interface to Yellow+Brown F-CAM-DET... -
Page 27: Pre-Installation Notices
3.2 Pre-installation Notices During installation ignition key should be taken off and after all installation finish connect power cable with interface for the last step Power cable should be separated when connecting interface. Should be no any electronic devices or magnetic pole around installation place. ... -
Page 28: Installation
3.3 Installation 3.3.1 Connecting the monitor with the interface ① Connect LCD cable and monitor power cable enclosed in our package to the spot that the original one is connected after disconnecting the original LCD cable from the monitor as shown left. ②... - Page 29 3.3 Installation 3.3.2 Connecting CAN cable respectively Original CAN-Low Original CAN-High Offered CAN-High POWER Control box CABLE Offered CAN-Low Connect CAN-H wire (Green+Brown) enclosed in our package with the original CAN-H wire (Yellow+Red). And connect CAN-L wire (Green) enclosed in our package with the original CAN-L wire (Yellow+Brown).
-
Page 30: Troubleshooting
4. Troubleshooting Q. I can not switch A/V sources A. Check IR or Ground cable connection. Check LED lamps in the interface, if it is not on, check power cable. Q. All I got on the screen is black. A. Check second LED lamp of the interface is on, if not, check A/V sources connected are working well. (Second lamp indicates AV sources connected works well.) Check interface connection has been done well.
