Features:
• Connects to home WiFi
• Turn devices on and off remotely through the App
• Manage numerous smart switches and other Tuya compatible smart devices from
one App
• Compatible with Amazon Alexa, Google Assistant & Siri (via Shortcuts)
• Set schedules and timers
• Switch device on automatically when you get home (Beta)
• Share access with other users permanently or for a set time period
• Remove access to other users instantly
• Latching or timed mode
• Group device management
• Built in 433.92MHz receiver for remote controls
Specification:
• Input voltage: 7-32Vac/dc or 5V Micro-USB
• Max current load: 10A
• WiFi standard: 2.4GHz, 802.11 b/g/n
• Standby/max current draw: 80mA/115mA
• Dimensions: 73 x 46 x 30mm

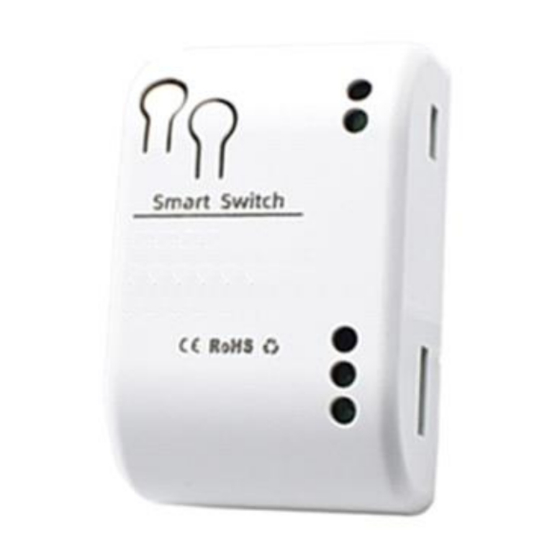

CPWIFISW1
WiFi Smart Switch Manual
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Smart Switch CPWIFISW1
Summary of Contents for Smart Switch CPWIFISW1

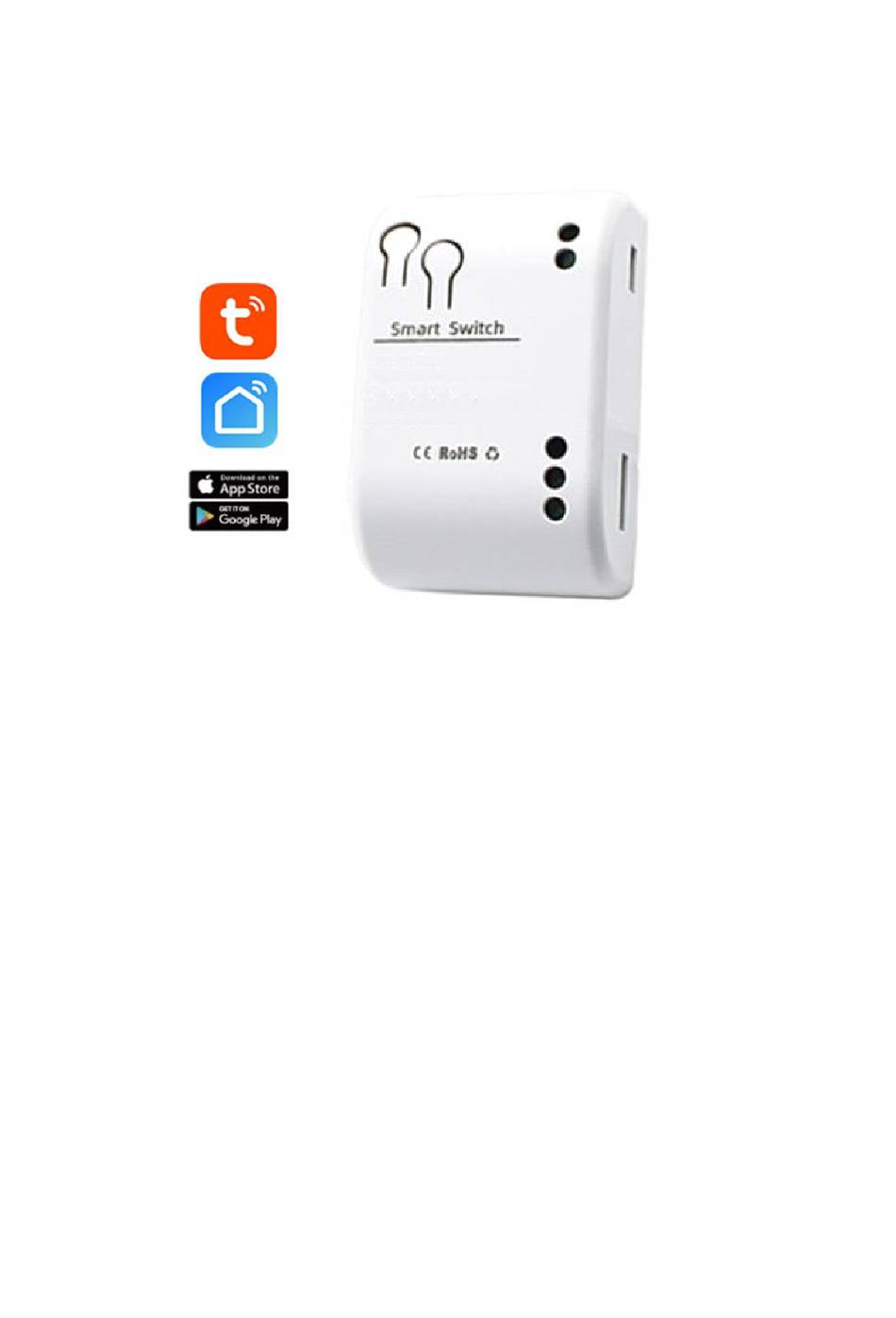

- Page 1 CPWIFISW1 WiFi Smart Switch Manual Features: • Connects to home WiFi • Turn devices on and off remotely through the App • Manage numerous smart switches and other Tuya compatible smart devices from one App • Compatible with Amazon Alexa, Google Assistant & Siri (via Shortcuts) •...
-
Page 2: Device Setup
Device setup Download the ‘Tuya Smart’ or ‘Smart Life’ App by searching in the mobile App stores or scanning the following QR codes. 2. Create an account in the App, or if you already have an account just login. 3. Supply power to the WiFi switch and wire the relay output to the device you are controlling. -
Page 3: Wiring Examples
Set mode to latching Gate Set both outputs to inching mode - 2 secs Refer to gate panel manual for Start terminals CPWIFISW1-TX KIT Set output to inching mode - 2 secs Refer to gate panel manual for Start terminals RX-2... - Page 4 4. Power on the device. 5. Reset the device by pressing the match button for 5 seconds until the red network LED indicator is flashing quickly every 0.5 seconds (if the network indicator is already flashing quickly, skip this step). 6.
-
Page 5: App Functions
App functions 3. Rename Offline notification Third-party control Share Device Create group Remove device Tap here to enter function operation interface. 4. Smart scenes 1. Countdown 2. Relay status Siri Schedule RF remote control setup Circulate Random Inching 1. Set the following: Countdown (delay before the output activates) Weekly schedules (up to 8 per device) Circulate (set the device to switch on and off on a loop) - Page 6 2. Set the following: Relay status (when the device is switched back on after losing power) RF remote control setup Tap Add When prompted, press the remote control button you want to add within 10 seconds The message ‘Add Success’ will be displayed To delete a remote control, swipe it to the left and tap delete 3.
- Page 7 4. Create smart scenes & setup Siri. Select the device, then select the Tap the + in the Tap ‘Launch Tap- Tap ‘Run the Device’ function, in this case to-Run’ top right corner turning ‘Switch1’ ON Change the name of Change the voice the scene &...
- Page 8 Switch the device on automatically when you get home Please note this feature is a Beta service and requires location services to be on all the time. Select location. Zoom in Tap ‘When location Tap the + in the or out to adjust activation changes’.
