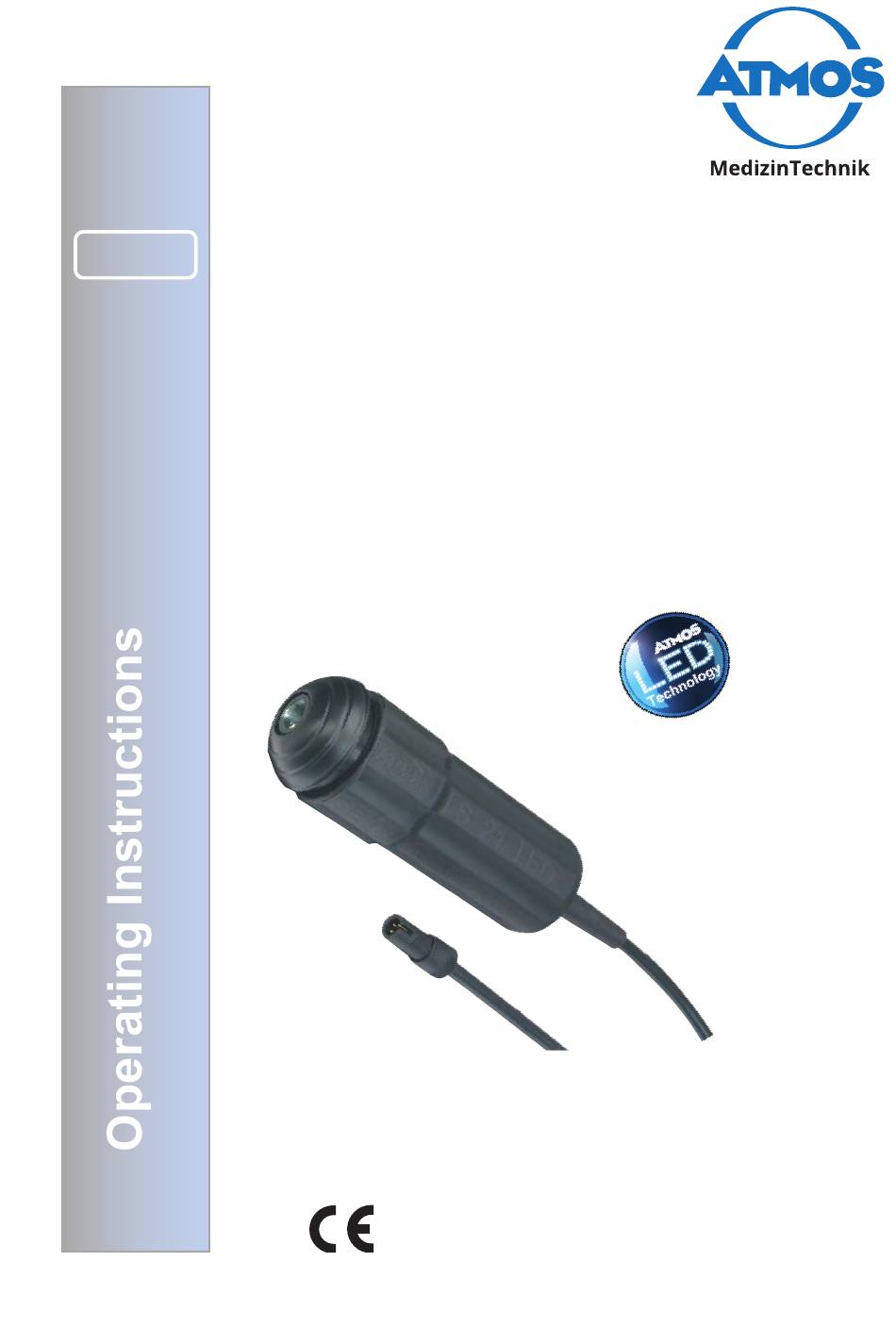

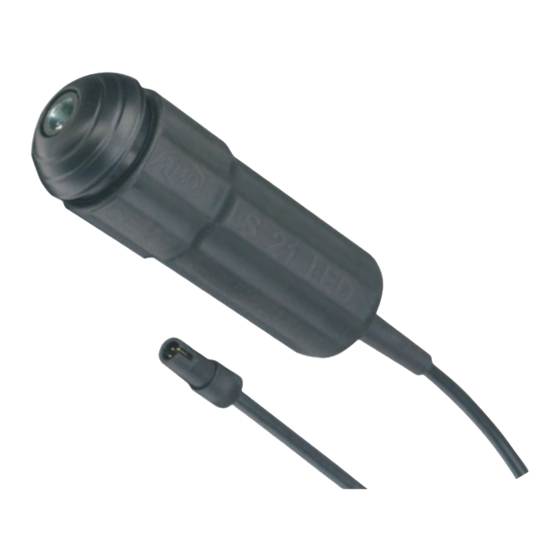

- Page 1 English ATMOS LS 21 Light source GA1GB.150302.0 2021-06 Index: 16...
-
Page 3: Table Of Contents
Table of contents Introduction ............4 Notes on operating instructions ......4 Explanation of pictures and symbols ....4 Intended use ............6 Function ..............6 For your safety ............7 Scope of supply and connection .......8 Operation .............9 Attaching the application part........9 Connection possibilities of the light source ...9 Operation of the optional LED battery....10 4.3.1 Indication of capacity ..........10... -
Page 4: Introduction
1.0 Introduction 1.1 Notes on operating instructions These operating instructions contain important notes on how to operate the ATMOS LS 21 LED safely, correctly, and effectively. Their reading helps to avoid risks, and also to reduce repair costs and down- times. - Page 5 1.0 Introduction Handle with care Type BF applied part Connection for lamp to LED battery Connection for charging power pack with polarity marking Test button for battery test Recyclable UDI application identifier UDI-DI: Identification of the manufacturer and the device (11) Date of manufacture (21)
-
Page 6: Intended Use
1.0 Introduction 1.3 Intended use Name: ATMOS LS 21 LED Main function: LED cold light source for optical instruments. Intended use / intended purpose: Illumination of natural orifices (e.g. ear/nose//throat) for diagnosis. Intended patient population: All patients without any restrictions... -
Page 7: For Your Safety
• Pay attention to the correct fit of the light source in the holders. • Prior to starting up the ATMOS LS 21 LED light source, read these operating instructions carefully. • Attention: The light handle gets warmer during applica- General safety information tion. -
Page 8: Scope Of Supply And Connection
3.0 Scope of supply and connection Scope of delivery ..Endoscope Operating ATMOS LS adapter Wolf Instructions 21 LED Danger to the device! • If the light source is used with unsuitable adapters, the lens could be badly damaged! - Use optics only with the supplied and/or optional adapters! -
Page 9: Operation
4.0 Operation 4.1 Attaching the application part click 4.2 Connection possibilities of the light source Endoscopes Endoscopes with light conduct- ing cable ATMOS LS 21 LED light source Adapter Wolf Adapter Storz LED battery ATMOS Strobo 21 LED... -
Page 10: Operation Of The Optional Led Battery
4.0 Operation 4.3 Operation of the optional LED battery 4.3.1 Indication of capacity Indication of the battery capacity Test button For 3 s: Indication of battery capacity Keep pressed At the end of the battery capacity, the light expires quickly. •... -
Page 11: Cleaning
5.0 Cleaning • For cleaning, never use alcohol or alcoholic cleaning agents. Avoid any contact of the lens with alcohol! • Please observe the operating instructions for use prescribed by the manufacturers of disinfectants. Pay attention regarding concentration and material compatibility. •... -
Page 12: Repairs And Servicing
• Send the product to ATMOS or to your dealer. 7.0 Troubleshooting The ATMOS LS 21 LED was subjected to a thorough quality control in the factory. If, however, any problems should occur, you can possibly eliminate these personally by observing the following notes. -
Page 13: Accessories
8.0 Accessories Accessories ATMOS LS 21 LED adapter (Storz) 507.4611.0 ATMOS LS 21 LED adapter (flex. light guide Wolf) 507.0949.0 Lithium-ion battery 507.4510.0... -
Page 14: Technical Data
600.0011.0 ATMOS LS 21 LED 10.0 Disposal • The light source ATMOS LS 21 LED does not contain any hazardous goods. • The LED battery (lithium-ion) must be disposed of correctly. • Device and accessories must be decontaminated prior to disposal. -
Page 15: Notes On Emc
The ATMOS LS 21 LED is suitable for use in the following environments: • The ATMOS LS 21 LED may be operated only in rooms used for medical purposes, but not in areas subject to explosion hazards and in oxygen-rich environments. - Page 16 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 info@atmosmed.com www.atmosmed.com...
