GENERAL INFORMATION

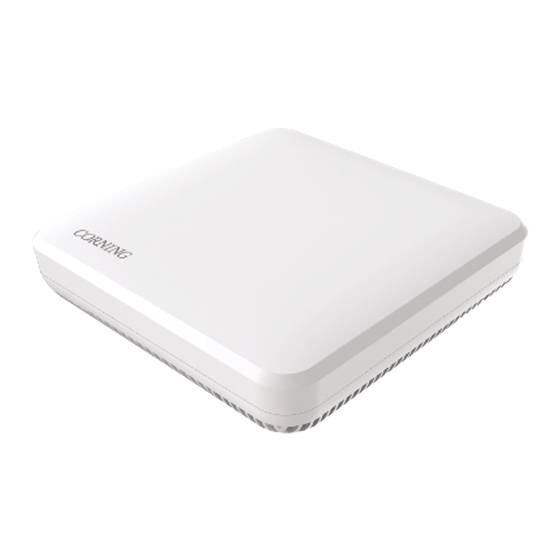

The E62-N2RU is a low-power remote unit supporting cellular technologies on fiber optic
cable using the CPRI protocol. The N2 is ideal for multioperator multiband deployments of
cellular services in small-to-medium coverage areas. The N2 supports up to eight 20 dBm RF
channels. The N2 converts an optical signal to RF and then transmits at the relevant 3GPP
band and receives the analog RF signal, conditions it, and converts it back to optical for
routing to the E2 or A2.
This document describes the installation procedure for the E62-N2 remote unit.
This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and
QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC
License to operate this device. NOTE: Only authorized person can enter the area where the
antenna is installed. And the person is fully aware of the potential for exposure and can exercise
control over his or her exposure by leaving the area or by some other appropriate means.
Awareness of the potential for RF exposure in a workplace or similar environment can be provided
through specific training as part of a RF safety program.
Nano Power (E62-N2)
Installation Manual
Everon™ 6200
Installation Manual | CMA-794-AEN | Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nano Power E62-N2RU and is the answer not in the manual?

Questions and answers

Related Manuals for CORNING Nano Power E62-N2RU

Summary of Contents for CORNING Nano Power E62-N2RU

  • Page 1 Nano Power (E62-N2) Installation Manual Everon™ 6200 GENERAL INFORMATION The E62-N2RU is a low-power remote unit supporting cellular technologies on fiber optic cable using the CPRI protocol. The N2 is ideal for multioperator multiband deployments of cellular services in small-to-medium coverage areas. The N2 supports up to eight 20 dBm RF channels.

  • Page 2: Table Of Contents

    CONTENT GENERAL ............................4 WARNINGS ........................... 4 SITE CONSIDERATIONS ......................4 ENVIRONMENTAL ........................4 PREPARATION ..........................5 UNPACKING AND INSPECTION ....................5 TOOLS ............................5 SYSTEM CABLING ........................5 E62-N2RU POWER SUPPLY ......................6 OPTICAL TRANSCEIVER MODULE ..................... 8 Single Port Bidirectional SFP Transceiver ................8 Dual Port SFP Transceiver .....................
  • Page 3 Connect Power and Ground Cable to EU-O ................. 19 MOUNT THE EU-O ON THE WALL .................... 20 Attach Handle to EU-O ......................20 Mount EU-O to Wall ......................20 Connect Power and Ground Cable to EU-O ................. 21 EU-O MOUNTING DIMENSION SPACING ................. 22 INSTALLATION OF THE E62-N2RU ....................

  • Page 4: General

    In accordance with wireless service provider standards, it is not advised to use digital repeaters as a signal source for Corning solutions. Install Master A2 close to the service area for monitor and debugging.

  • Page 5: Preparation

    3. Ensure that all equipment and accessories have no damage. If there is any damage, contact your Corning service agent. TOOLS Electric drill, crosshead screwdriver, side cutters, ladder, and other tools are needed for E62- N2RU installation which is not currently offered from Corning. Customers are to provide these tools themselves. Philips Drilling Machine...

  • Page 6: E62-N2Ru Power Supply

    Figure 1. Hybrid Cable Configuration E62-N2RU POWER SUPPLY The E62-N2RU needs a DC power supply at the remote unit location. A power supply unit (PSU) can be used to supply this DC power. These are the specifications for DC power cables for use with the 56V PSU: Pn = 78 W Power consumption of E62-N2RU P= I*Vin = 142.92W...
  • Page 7 Max Distance (meters) @ AWG Power 78 W 88 W 96 W 98 W Note: The maximum power consumption is 98 W when N2 has 8 PA modules operating at maximum output power. Class 2 Installation for North America area (maximum input power is 100 W): If N2 consumes 78 W then 22 W is Pn = 78 W Power consumption of N2RU...

  • Page 8: Optical Transceiver Module

    Note: The cable connector is available for 12 AWG, 14 AWG, and 16 AWG. However, the waterproof ring must be removed when using 12 AWG and 14 AWG The power connector is stripped and tinned as below. OPTICAL TRANSCEIVER MODULE Single-Port Bidirectional SFP Transceiver The Figure below shows a pair of single-port Bidirectional SFP transceivers.

  • Page 9: Dual Port Sfp Transceiver

    Figure 3. Signle Port SFP Module The single-port SFP modules have to be used in pairs. Dual-Port SFP Transceiver The optical connector unit includes an optical module and optical fiber. The Figure below shows that when using a dual-port SFP module, the optical transmitter and optical receiver should correspond to each other.

  • Page 10: Installation Of The A2

    INSTALLATION OF THE A2 MOUNT THE A2 IN THE RACK A2 Accessories Figure 5. A2 Accessories Note: The ground wire of A2 is 12 AWG and 2 meter in Accessories package. Installation Manual | CMA-794-AEN | Page 10...

  • Page 11: Attach A2 Handle

    Attach A2 Handle 1. Attach the 19-inch mounting brackets at the front of the A2, using 4 screws M3×16 per bracket and the Phillips screwdriver. Observe the orientation of the brackets. Figure 6. Attaching a 19-in Mounting Bracket Attach Sliding Rails and A2 to Rack 1.

  • Page 12: Fan Installation

    For rack installation, it is highly recommended to use a fan tray in the middle of 2 adjacent A2 units for cooling. Note: It will reduce service life if A2 unit is continuously working in a high-temperature environment. Figure 10. Separation of Adjacent A2 Fan Installation 1.

  • Page 13: Connect Power And Ground Cable To A2

    Fan DC version has power cable embedded in chassis. Figure 13. Fan DC Version Note: Red is for positive; Blue is for negative. Figure 14. DC Power Cable Connect Power and Ground Cable to A2 1. Connect and lock the power cable at the rear of the A2.

  • Page 14: Mount The A2 On The Wall

    MOUNT THE A2 ON THE WALL Attach Handle to A2 Attach the 19-inch mounting brackets to the rear of the A2 unit, using 4 screws M3×16 per bracket and the Phillips screwdriver. Observe the orientation of the brackets shown in Figure 17. Figure 17.

  • Page 15: Connect Power And Ground Cable To A2

    Connect Power and Ground Cable to A2 1. Connect and lock the power cable at the rear of the A2. Figure 20. Connect power cable at the rear of the unit 1. Connect and screw the ground wire at the rear of the A2. Figure 21.

  • Page 16: A2 Mounting Dimension Spacing

    A2 MOUNTING DIMENSION SPACING Installation Manual | CMA-794-AEN | Page 16...

  • Page 17: Installation Of The Eu-O

    INSTALLATION OF THE EU-O Installing the EU-O is virtually the same as installing the A2. Please refer to the steps described in the A2 installation for the EU-O. MOUNT THE EU-O IN THE RACK EU-O Accessories Figure 22. EU-O Accessories Note: The ground wire of EU-O is 12 AWG and 2 meter in Accessories package.

  • Page 18: Attach Eu-O Handle

    Attach EU-O Handle 1. Attach the 19-inch mounting brackets at the front of the EU-O, using 4 screws M3×16 per bracket and the Phillips screwdriver. Observe the orientation of the brackets. Figure 23. Attaching a 19-in Mounting Bracket Attach Sliding Rails and EU-O to Rack 1.

  • Page 19: Connect Power And Ground Cable To Eu-O

    For rack installation, it is highly recommended to use a fan tray in the middle of 2 adjacent EU-O for cooling. Note: It will reduce service life if EU- O is continuously working in a high- temperature environment. Figure 27. Separation of Adjacent EU-O Connect Power and Ground Cable to EU-O 1.

  • Page 20: Mount The Eu-O On The Wall

    MOUNT THE EU-O ON THE WALL Attach Handle to EU-O Attach the 19-inch mounting brackets to the rear of the EU-O, using 4 screws M3×16 per bracket and the Phillips screwdriver. Observe the orientation of the brackets. Figure 30. Attaching a 19-in Mounting Bracket Mount EU-O to Wall 1.

  • Page 21: Connect Power And Ground Cable To Eu-O

    Connect Power and Ground Cable to EU-O 1. Connect and lock the power cable at the rear of the EU-O Figure 33. Connect power cable at the rear of the unit 2. Connect and screw the ground wire at the rear of the EU-O Figure 34.

  • Page 22: Eu-O Mounting Dimension Spacing

    EU-O MOUNTING DIMENSION SPACING Installation Manual | CMA-794-AEN | Page 22...

  • Page 23: Installation Of The E62-N2Ru

    INSTALLATION OF THE E62-N2RU E62-N2RU CEILING INSTALLATION (WITH THE SUSPENDED CEILING) E62-N2RU Accessories Figure 35. E62-N2 Accessories Installation Manual | CMA-794-AEN | Page 23...

  • Page 24: Assemble Bracket I&Ii

    Assemble Bracket I & II 1. Assemble Mounting Bracket I & IV with 6 x M3 x 6 screws. Figure 36. Assembling Bracket I & IV 2. Attach Nylon Cable Tie to the Bracket I & IV combination. Figure 37. Attaching Cable Tie to Mounting Bracket Place the Bracket 1.

  • Page 25: Assemble Bracket Ii

    2. Place the Mounting Bracket I & IV onto the surface where the E62-N2RU will be attached to the reverse of the Ceiling Tiles. Figure 39. Placing Bracket I & IV 3. Ensure the nylon tie hangs down through the hole. Figure 40.

  • Page 26: Buckle Up And Connect Wire

    Buckle Up and Connect Wire 1. Clip the bar on paired Bracket III over the hooks on Bracket II. Figure 42. Connecting Bar over Hooks on Bracket II 2. Connect the power cable and fiber cable to E62-N2RU Note: Connect power cable first and then power it on.

  • Page 27: To Perform Maintenance On The E62-N2Ru

    4. Tighten the M3 x 3 screws Figure 45. Tighten E62-N2RU To Perform Maintenance on the E62-N2RU 1. Depress the hook on the front of the E62- N2RU to expose top panel of E62-N2RU for debugging and maintenance Figure 46. Unlock Rotary Hook Diagram 1 Figure 47.

  • Page 28: E62-N2Ru Ceiling Installation (Without Suspended Ceiling)

    E62-N2RU CEILING INSTALLATION (WITHOUT SUSPENDED CEILING) Draw Circles for Plastic Expansion Nails 1. Using the Mounting Bracket III keyholes as guides, mark the position of the 2 holes to be drilled into the ceiling. Figure 48. Drawing Circles Diagram 1 Drill 2 holes with a diameter of 10 mm and depth of 55 mm at the positions in step 1.

  • Page 29: Assemble Mounting Bracket

    Assemble Mounting Bracket 1. Assemble Mounting Bracket III to the ceiling using ST6.3 x 50 screws. Figure 51. Assembling Bracket III Diagram 1 Figure 52. Assembling Bracket III Diagram 2 Buckle Up and Connect Wire 1. Clip the bar on paired Bracket III over the hooks on Bracket II.
  • Page 30 2. Connect the power cable and fiber cable to E62-N2RU. Note: Connect power cable first and then power it on. Do NOT connect the powered cable to the E62-N2RU in case of excessive current impulse. Figure 54. Wire Connection Diagram 3.

  • Page 31: To Perform Maintenance On The E62-N2Ru

    To Perform Maintenance on the E62-N2RU 1. Depress the hook on the front of the E62- N2RU to expose the top panel of E62- N2RU for debugging and maintenance. Figure 57. Unlock Rotary Hook Diagram 1 Figure 58. Top Panel of E62-N2RU Exposed Installation Manual | CMA-794-AEN | Page 31...

  • Page 32: Dual E62-N2Ru Ceiling Installation (With The Suspended Ceiling)

    DUAL E62-N2RU CEILING INSTALLATION (WITH THE SUSPENDED CEILING) Figure 59. Dual E62-N2RU Installation Manual | CMA-794-AEN | Page 32...

  • Page 33: Dual E62-N2Ru Accessories

    Dual E62-N2RU Accessories Figure 60. Dual E62-N2RU Accessories Installation Manual | CMA-794-AEN | Page 33...

  • Page 34: Assemble Bracket I & Iii

    Assemble Bracket I & III 1. Assemble Mounting Bracket I & VI with 6 x M3 x 6 screws. Figure 61. Assembling Bracket I & VI 2. Attach nylon cable tie to the Bracket I & VI combination. Figure 62. Attaching Cable Tie to Mounting Bracket Place the Bracket I &...

  • Page 35: Assemble The Bracket Ii

    2. Place the Mounting Bracket I & VI. Figure 64. Placing the Bracket I & VI 3. Ensure the nylon tie hangs down through the hole and 2 x M6 screw threads are in holes of 2 sides. Figure 65. Placing the Bracket I & VI 2 Assemble the Bracket II 1.

  • Page 36: Assemble The Bracket V

    Note: 2 Bracket II are mounted in opposite directions for cooling. Figure 67. Assemble Bracket II 2 Assemble the Bracket V 1. Assemble Mounting Bracket V to Mounting Bracket I using 4 x M6 x 70 screws, Flat Washer M6 and Spring Washer M6. Figure 68.
  • Page 37 Figure 70. Bracket Top View Installation Manual | CMA-794-AEN | Page 37...

  • Page 38: Buckle Up And Connect Wire

    Buckle Up and Connect Wire 1. Buckle the bar side of Mounting III Bracket onto Mounting Bracket II Figure 71. Buckle the Bracket Figure 72. Buckle the Bracket 2 2. Connect the power cable and fiber optical cable to E62-N2RU. Note: Connect power cable first and then power it on.
  • Page 39 Figure 74. Wire Connection Diagram Figure 75. Wire Cabling View Installation Manual | CMA-794-AEN | Page 39...

  • Page 40: To Perform Maintenance On The E62-N2Ru

    3. Push the E62-N2RU upward to interlace with the hook at the Bracket II. Figure 76. Push E62-N2RU Up 4. Tighten the M3 x 3 screws. Figure 77. Tighten the Screws To Perform Maintenance on the E62-N2RU 1. Depress the hook on the front of the E62- N2RU to expose the top panel of E62- N2RU for debugging and maintenance.

  • Page 41: Install Outer Case

    Figure 79. Top Panel of E62-N2RU Exposed Install Outer Case 1. Sleeve the outer case. Figure 80. Sleeve the Outer Case 2. Tighten the M3 x 10 screws. Figure 81. Tighten the Screws Installation Manual | CMA-794-AEN | Page 41...

  • Page 42: E62-N2Ru Mounting Dimension Spacing

    E62-N2RU MOUNTING DIMENSION SPACING Figure 82. E62-N2RU Clearance Figure 83. Dual E62-N2RU Clearance Note: 2 x E62-N2RU installed in one spot are directional for case installation and cooling. (Details in Installation of the E62-N2RU) Installation Manual | CMA-794-AEN | Page 42...
  • Page 43 Corning Optical Communications products without prior notification. A complete listing of the trademarks of Corning Optical Communications is available at www.corning.com/opcomm/trademarks. All other trademarks are the properties of their respective owners. Corning Optical Communications is ISO 9001 certified. © 2021 Corning Optical Communications. All rights reserved. CMA-794-AEN / July 2021...
