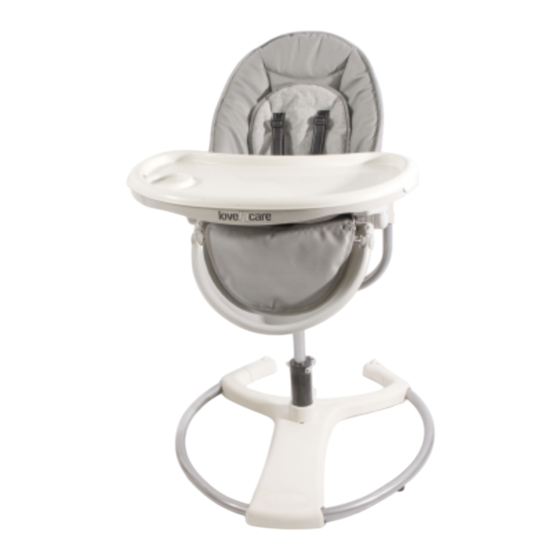

- Page 1 3 SIXTY INSTRUCTION MANUAL BP 5770 PLEASE RETAIN FOR FUTURE REFERENCE...
- Page 2 Congratulations on your new quality Love N Care product from our exclusive range of baby products. This exceptional design combines the most unique features that any baby product o ers. We are con dent that you will appreciate its many highlights, including its reliability and durability. Your new product has been manufactured to comply with the Highest Quality Standards and comes with a 12-month warranty.
- Page 3 WARNING DO NOT USE A HIGHCHAIR UNTIL YOUR CHILD CAN SIT UP UNAIDED DO NOT LEAVE CHILDREN UNATTENDED THE HARNESS MUST ALWAY BE USED AND CORRECTLY FITTED TO AVOID INJURIES CAUSED BY FALLS POSITION THE HIGHCHAIR AWAY FROM SOLID STRUCTURES TO AVOID INJURIES CAUSED BY FALLS OR ACCESS TO OTHER DANGEROUS ITEMS.
-
Page 4: Parts List
PARTS LIST WHAT YOU SHOULD HAVE IN THE BOX #1 - SEAT SUPPORT #2 - 5 POINT HARNESS #3 - SEAT #4 - GAS LIFT #5 - BASE CONNECTOR WHEELS #6 - BASE #7 - LINER PAD #8 - HIGH CHAIR LINER #9 - HIGH CHAIR LOWER TRAY #10 - TOP TRAY #11 - CROTCH SUPPORT... -
Page 5: How To Assemble
HOW TO ASSEMBLE FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY. STEP 1. REMOVE ALL PARTS FROM THE PACKAGING STEP 2. CONNECT THE BASE CONNECTOR WHEELS #5 TO THE BASE #6 THEY SHOULD SLIDE IN. INSERT THE GAS LIFT INTO THE BASE MAKE SURE YOU HEAR IT CLICK STEP 3. - Page 6 STEP 4. ASSEMBLE THE SEAT #3 TO THE SEAT SUPPORT #1 ENSURE THAT THE SIDES SNAP IN AND YOU HEAR THE BUTTONS CLICK STEP 5. ATTACHING THE 5 POINT HARNESS #2 TO THE SEAT #3 SLIDE IN THE MEDAL ENDS OF THE 5 POINT HARNESS IN THE SLOTS ON THE SEAT DEPENDING ON THE HEIGHT REQUIRED...
- Page 7 STEP 6. ATTACH THE LINER #8 TO THE SEAT 3# AFTER THE LINER IS ON THE SEAT YOU CAN THREAD THROUGH THE 5 POINT HARNESS #2 THERE IS AN ADDITION LINER PAD #7 FOR ADDED SUPPORT. THE HARNESS #2 SHOULD BE THREADED THROUGH BOTH THE LINER #8 AND THE PAD #7 WARNING USE THIS HARNESS AT ALL TIMES STEP 7.
- Page 8 STEP 8. SLIDE THE LOWER TRAY #9 ONTO THE SEAT #3 ARMS THE TOP TRAY #10 CAN SIT ON TOP OF THE LOWER TRAY.
-
Page 9: How To Use
HOW TO USE ADJUST THE HEIGHT OF THE SEAT: TO ADJUST THE HEIGHT OF THE SEAT #3 ENSURE THAT THE CLAMPING RING IS UNLOCKED PUSH DOWN ON BOTH SIDES OF THE TRAY TO DECREASE THE HEIGHT OF THE HIGHCHAIR. IF YOU WANT TO RAISE THE HIGHCHAIR STEP ON THE PEDAL AND IT WILL RAISE UP. ONCE YOU HAVE YOUR DESIRED HEIGHT LOCK THE CLAMPING RING. - Page 10 HOW TO RECLINE THE BACKREST: YOU CAN ADJUST THE BACKREST OF THE SEAT #3 TO THREE DIFFERENT POSITIONS. YOU NEED TO PUSH UP ON THE REAR LEVER AND EITHER PUSH THE SEAT UP OR DOWN TO THE POSITION REQUIRED. THEN YOU MUST RELEASE THE LEVER. THE BACK REST CAN BE ADJUSTED WHILST THE CHILD IS SEATED.
- Page 11 HOW TO USE 5-POINT HARNESS: CAREFULLY PLACE THE CHILD IN THE SEAT #3 AND BRING THE SAFETY HARNESS AROUND THE CHILDS WAIST AND OVER THE SHOULDERS. PLACE THE CROTCH STRAP BETWEEN THE CHILDS LEGS. INSERT HOOK OF EACH SHOULDER STRAP INTO THE HOLE ON THE TOP OF THE WAIST STRAP BUCKLE. ONCE THE TWO ARE CONNECTED PLACE THE MALE WAIST BUCKLE INTO THE FEMALE CROTCH STRAP END.
-
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE ALL LOVE N CARE PRODUCTS HAVE ONE YEAR WARRANTY FROM THE DATE OF PURCHASE. IT IS RECOMMENDED TO REGULARLY INSPECT AND MAINTAIN MOVEMENT OF LOCKING DEVICES AND SECURITY OF ESSENTIAL COMPONENTS. REGULARLY CHECK ALL PARTS FOR WEAR AND TEAR. DO NOT USE SPRAY LUBRICANTS, SIMPLY WIPE CLEAN AFTER USE. - Page 13 Head Office: Love N Care Pty Ltd. 297-299 Canterbury Rd, Revesby NSW 2212 Australia Contact No: 02 9774 4655 Fax: 02 9774 4633 Email: info@lovencare.com.au Website: www.lovencare.com.au Western Australia Brisbane 5 Modal Crescent 7-9 Eileen Street Canning Vale WA 6155 Australia...
