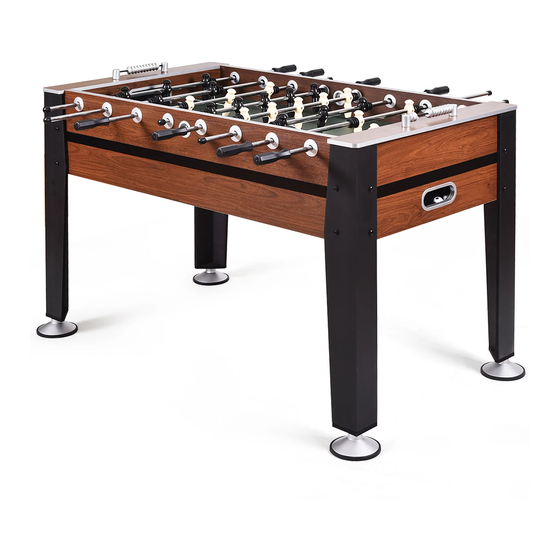

USER'S MANUAL
54" Soccer Table
Model: SP35344

Advertisement

loading
Need help?

Need help?

Do you have a question about the SP35344 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Costway SP35344

Summary of Contents for Costway SP35344

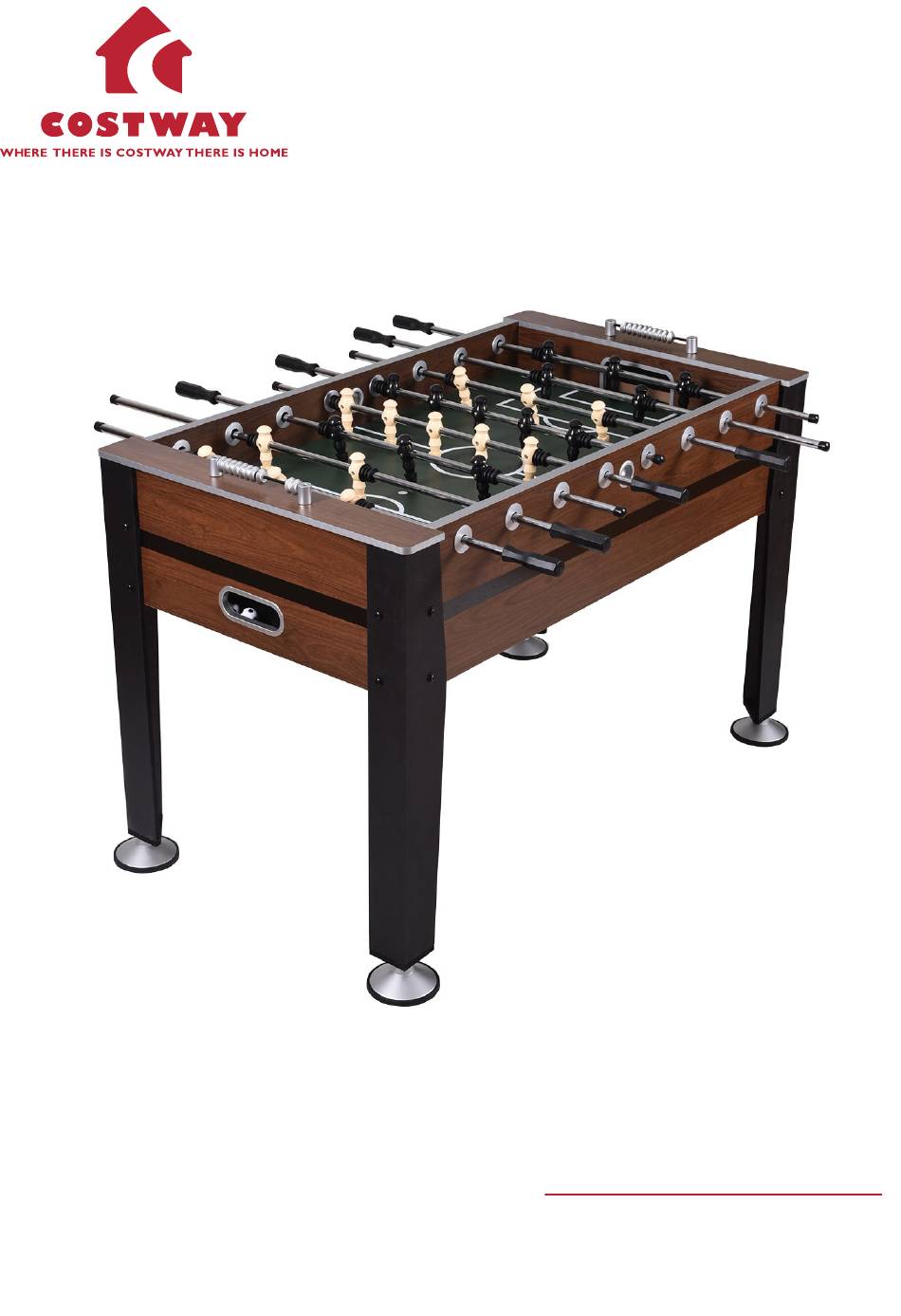

  • Page 1 USER'S MANUAL 54” Soccer Table Model: SP35344...
  • Page 2 SP35344 PARTS LIST End Apron Goal End Board Top Slat Board Side Apron Goal Box 2 Pieces 2 Pieces 2 Pieces 2 Pieces 2 Pieces Pre-installed Playfield Left Leg Right Leg Support Brace Goal Cover 1 Piece 2 Pieces 2 Pieces...
  • Page 3 A SSEM B LY I N ST RU CT I ON S 1. Find a clean, level place to begin the assembly of your Soccer Table. The table will be assembled upside down and then turned over on its legs once the assembly completed. This game table is heavy, and turning it over will require at least two strong adults.
  • Page 4 FI G.3 6. Place the Playfield (#6) in the center of the cabinet. Attach it to the Side Aprons (#4) using ten Screws (#13) and attach it to the Goal End Boards (#2) using eight Screws (#13). FIG. 3 FI G.4 7.
  • Page 5 FI G.5 9. Attach the Goal Boxes (#5) to the End Aprons (#1) using two Screws (#12) per Goal Box. Place the Support Braces (#9) on the Playfield (#6) and attach them to Side Aprons (#4) using two “L” Brackets (#30) and eight Screws (#11) per Support Brace.
  • Page 6 FI G.7 14. Slide the Player Rods ( #19-21) through the Rod Bushings (#37) on one Side Apron (#4) in the order as shown in Fig.7 and 7A. Note: The player Rods have a hole at their end where the Handles (#26) will go. 15.
  • Page 7 FIG.8 Place the Handles (#26) onto the Player Rods with a hole at their end. And then place the Rod End Caps (#27) onto the other side of the Player Rods. 19. Attach the two Scorers (#29) to the Top Slat Board (#3) using two Screws (#16) per Scorer. FIG.8 YOU ARE NOW READY TO PLAY!
  • Page 8 Great products so far February 24, 2018 Great product so far. Fast delivery, easy setup, and working without any issues. With your inspiring rating, Costway will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! US office:Fontana...
