TaiDoc TD-5011 Instructions For Use

TD-5011

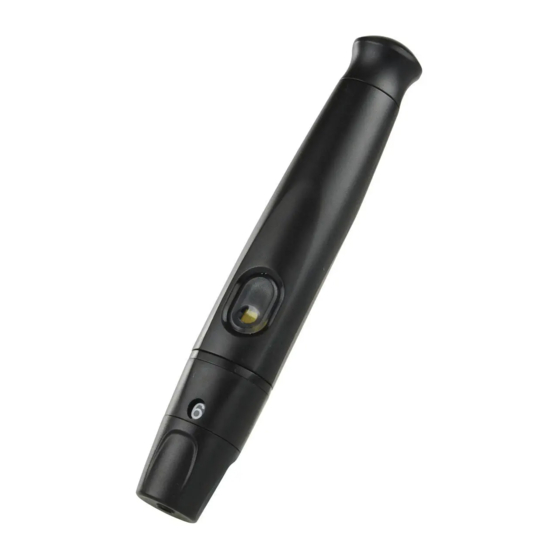

LANCING DEVICE
and TWIST LANCET
SPECIFICATIONS
LANCING DEVICE
Model Number: TD-5011
Penetration Depth Setting: 9-level comfort dial
Penetration Range: 0.4 mm to 1.5 mm
Dimension: 109 (L) x 18 (D) mm
Weight: 17 g
Priming of Device:
Push button to prime with status display window
Lancet Ejection: Yes
Alternative Site Testing: No
The lancet can be
ejected anytime.
9-level depth selection
TWIST LANCET
Model Number: TD-5084A
Lancet Gauge: 30G
Weight: 0.4g
Dimension: 32.6mm x 6.4mm
Units per Carton: 100 pcs/box and 140 boxes/carton
Net Weight per Carton: 7.62 kg
Cross Weight per Carton: 8.62 kg
Quality Compliance
ISO 11137, ISO 11737,
ISO 10993-10
ISO 10993-5
legible yellow button
indicates when the device
is ready to use
ISTA 2A Compliance
ASTM E171, ASTM D4332,
ASTM D642, ASTM D999,
ASTM D5276
