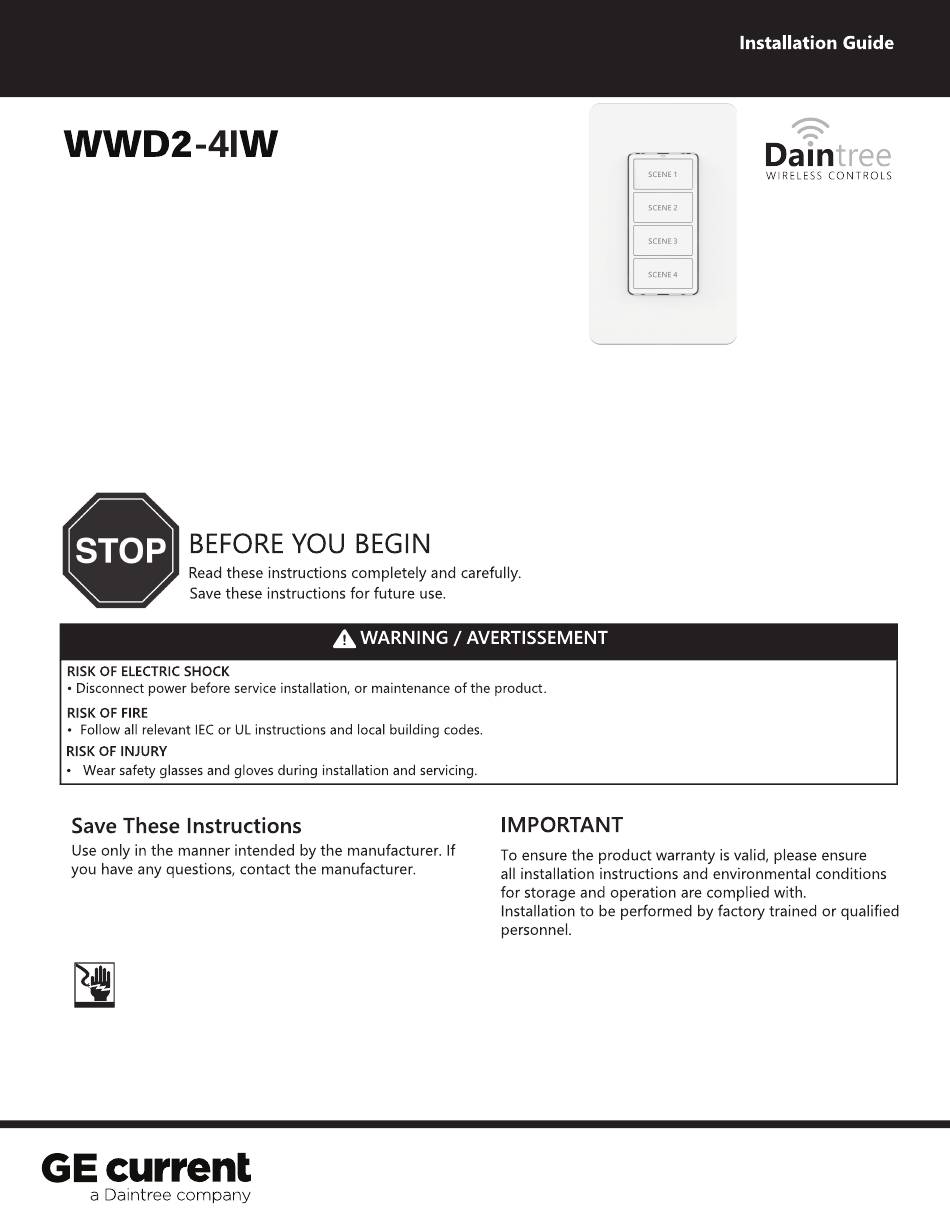

Daintree® Wireless Controls
Wireless Scene Switch
Product Overview
The Daintree® Wireless Scene Switch is a battery-powered wall switch for use in a Daintree Networked or Daintree EZ
Connect application. The WWD2-4IW device installs into an existing junction box to replace the existing wall-mounted
switch with a wireless solution that enables on/off and either dimming or scene selection commands to be delivered to
the luminaires in its commissioned space. The WWD2-4IW device can provide either dual zone dimming control or allow
the user to select from four configured scenes. The buttons on the WWD2-4IW can be changed to clearly indicate the
operation mode of the device. The communication with the Daintree EZ Connect or Daintree Networked system utilizes
a secure and reliable wireless connection which helps minimize installation costs and complexity.
Prepare Electrical Wiring
Electrical Requirements
• When replacing a line voltage switch, the
power must be off at the branch circuit
breaker. Bypass the line voltage switch to
provide uninterrupted power to the fixtures
and make sure the connection is properly
insulated before installing the wireless switch.
DT043
Advertisement
Table of Contents
Related Manuals for Daintree WWD2-4IW
Summary of Contents for Daintree WWD2-4IW
- Page 1 The WWD2-4IW device can provide either dual zone dimming control or allow the user to select from four configured scenes. The buttons on the WWD2-4IW can be changed to clearly indicate the operation mode of the device. The communication with the Daintree EZ Connect or Daintree Networked system utilizes a secure and reliable wireless connection which helps minimize installation costs and complexity.
- Page 2 Daintree® Wireless Controls Installation Guide Wireless Scene Switch(WWD2-4IW) Installation of Back Housing onto Junction Box Disconnect power to Remove the junction box Uninstall existing wall the junction box cover plate switches from the junction box. Terminate wires (previously For proper installation into...
- Page 3 Daintree® Wireless Controls Installation Guide Wireless Scene Switch(WWD2-4IW) Installation of Device into Back Housing Insert the back housing piece Separate the battery cover Use two standard screwdriver into the junction box and from the device. Pull the to remove the devices from secure with two screws.
- Page 4 Daintree® Wireless Controls Installation Guide Wireless Scene Switch(WWD2-4IW) Personality Change Hold the reset button and Hold the reset button and 4th 2nd button for 5 seconds to button for 5 seconds to change change the personality to the personality to scene mode.
- Page 5 Daintree® Wireless Controls Installation Guide Wireless Scene Switch(WWD2-4IW) Battery Replacement The device's LED flashing Remove the device from Separate the battery cover on for 2 seconds every 30 the back housing. from the device. Replace seconds indicates that the the batteries with AAA batteries.
- Page 6 Daintree® Wireless Controls Installation Guide Wireless Scene Switch(WWD2-4IW) Product Operation Button Functionality First Button Dual Zone Personality Four Scene Personality Short press Zone 1 lights ON at previous level Double short press SCENE 1 turns ON Zone 1 lights ON at 100% output...
- Page 7 Daintree® Wireless Controls Installation Guide Wireless Scene Switch(WWD2-4IW) Technical Data Product Specifications Dimensions 114mm H x 70mm W x 36mm D Weight 130g Power Supply (4) AAA1.5V battery Battery Life 5 years (normal operation) Operating Environment -10°C to 40°C (Indoor Use Only)
- Page 8 Daintree® Wireless Controls Installation Guide Wireless Scene Switch(WWD2-4IW) Supplier's Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: Wireless Wall Dimmer Model No: WWD2-4IW Supplier’s Name: Current Lighting Solutions, LLC Supplier’s Website: www.gecurrent.com Supplier’s Address (USA): Cleveland, Ohio Supplier’s Phone: 1-866-855-8629...
