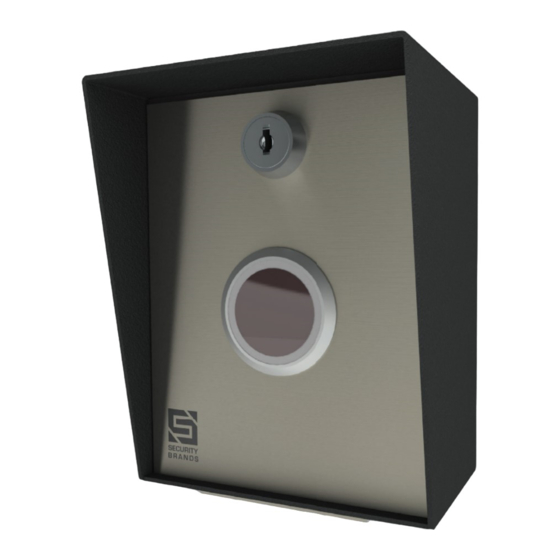

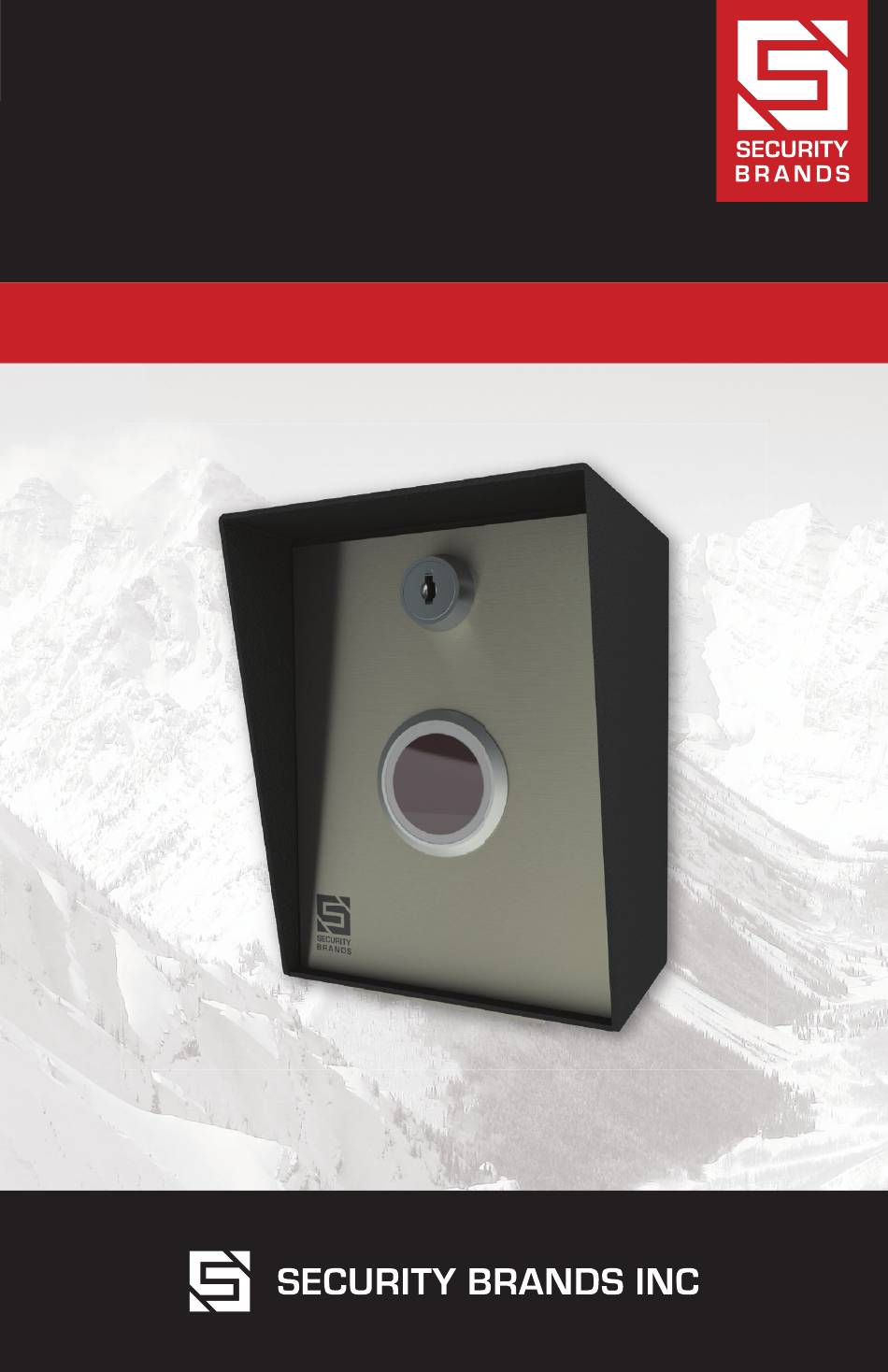

- Page 1 R T E P 58-RTE-P I n s t a l l a t i o n a n d U s e M A N U A L T o u c h l e s s R e q u e s t - t o - E x i t S t a t i o n...
- Page 3 Implied warranties, including those of fitness for a particular purpose and merchant ability (an unwritten warranty that the product is fit for ordinary use) are limited to two years from the date of purchase. Security Brands, Inc. will not pay for loss of time, inconvenience, loss of use of your SBI, AAS, or SAC product, service calls, or property damage caused by your SBI, AAS, or SAC product or its failure to operate, or any other incidental or consequential damages.
- Page 4 RTE P Touchless Request-to-Exit Station | Installation and Use Manual Wiring Diagram Specifications Power Input 12–24 VDC ±10% Range 1.25 in. to 4.5 in. (±25%) Output Loading 1 A @ 30 VDC (Max.) Output State Trigger state (0.5–20 seconds) or toggle mode output...
- Page 5 RTE P Touchless Request-to-Exit Station | Installation and Use Manual Common Installation Examples Security Brands, Inc. | Page 3...
- Page 6 RTE P Touchless Request-to-Exit Station | Installation and Use Manual Installation 1. Run four wires through pedestal (or similar mounting hardware). 2. Connect four wires to request-to-exit sensor according to wiring diagram on previous page. 3. Reattach stainless-steel faceplate to enclosure, taking care not to crimp any wires.
- Page 7 RTE P Touchless Request-to-Exit Station | Installation and Use Manual NEED HELP Customer Service (972) 474-6390 customerservice@securitybrandsinc.com Technical Support (972) 474-6390 techsupport@securitybrandsinc.com Both services are available free of charge Monday–Friday, 8 am to 5 pm Central Time. When you call, please have both your model and serial numbers handy for quicker service.
- Page 8 T o u c h l e s s R e q u e s t - t o - E x i t S t a t i o n M o d e l 5 8 - r t e - p (972) 474-6390 securitybrandsinc.com © 2021 Security Brands, Inc. All rights reserved. M-58RTEP-01-EN Rev. A (5/2021)
