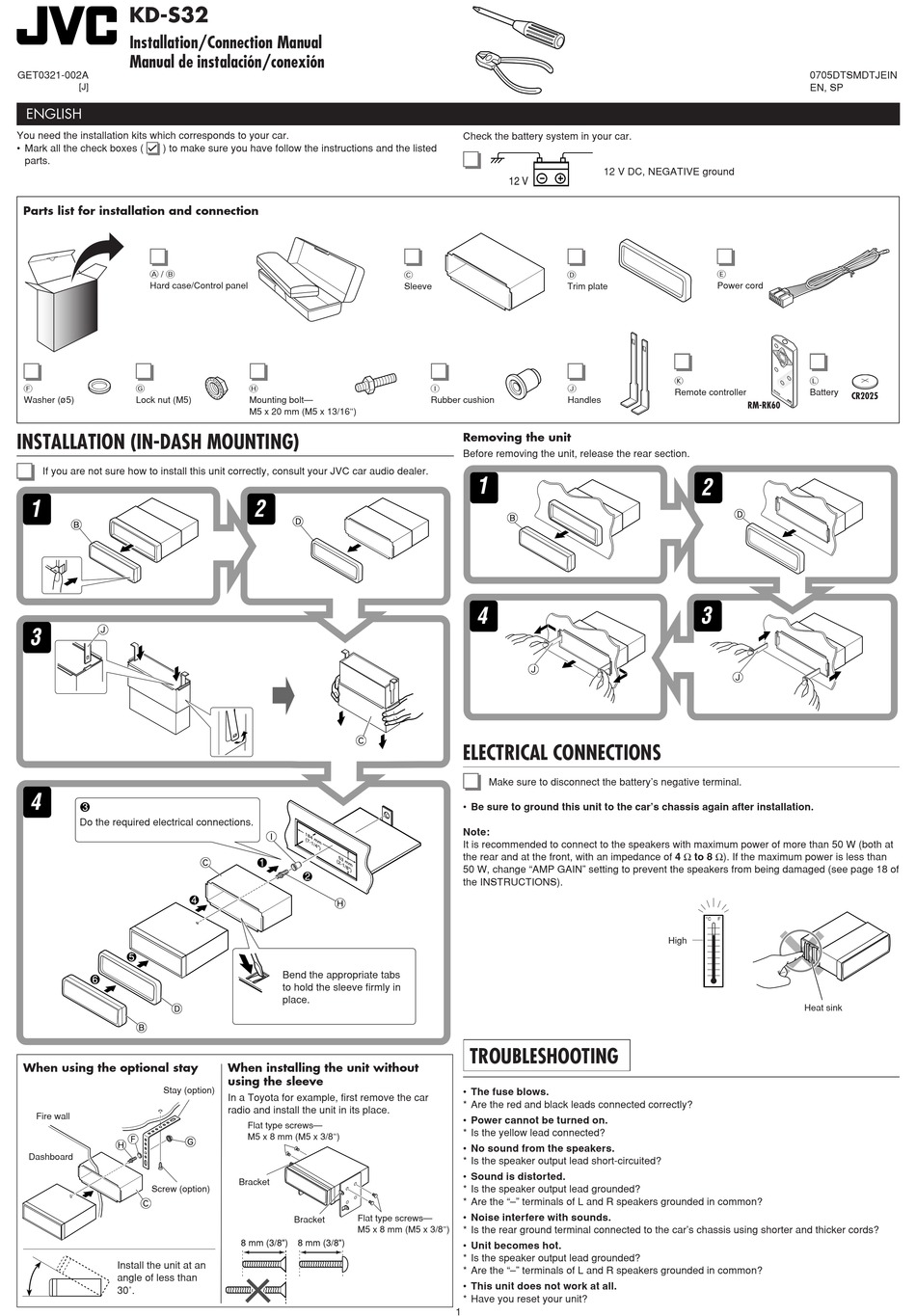

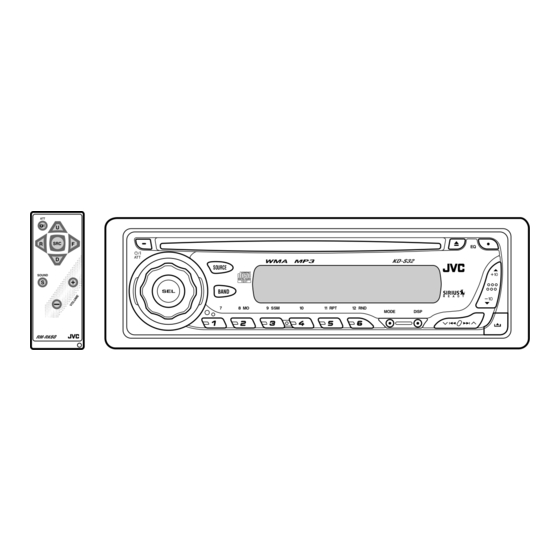

JVC KD-S32 Installation & Connection Manual

KD-S32
Installation/Connection Manual
Manual de instalación/conexión
GET0321-002A
[J]
ENGLISH
You need the installation kits which corresponds to your car.
• Mark all the check boxes ( ) to make sure you have follow the instructions and the listed
parts.
Parts list for installation and connection
A / B
Hard case/Control panel
F G
Washer (ø5) Lock nut (M5)
INSTALLATION (IN-DASH MOUNTING)
If you are not sure how to install this unit correctly, consult your JVC car audio dealer.
Do the required electrical connections.
When using the optional stay
Stay (option)
Fire wall
Dashboard
Screw (option)
Install the unit at an
angle of less than
30˚.
H
Mounting bolt—
M5 x 20 mm (M5 x 13/16")
Bend the appropriate tabs
to hold the sleeve firmly in
place.
When installing the unit without
using the sleeve
In a Toyota for example, first remove the car
radio and install the unit in its place.
Flat type screws—
M5 x 8 mm (M5 x 3/8")
Bracket
Flat type screws—
Bracket
M5 x 8 mm (M5 x 3/8")
Check the battery system in your car.
C D
Sleeve Trim plate
I J
Rubber cushion Handles
Removing the unit
Before removing the unit, release the rear section.
ELECTRICAL CONNECTIONS
Make sure to disconnect the battery's negative terminal.
• Be sure to ground this unit to the car's chassis again after installation.
Note:
It is recommended to connect to the speakers with maximum power of more than 50 W (both at
the rear and at the front, with an impedance of 4 Ω to 8 Ω). If the maximum power is less than
50 W, change "AMP GAIN" setting to prevent the speakers from being damaged (see page 18 of
the INSTRUCTIONS).
TROUBLESHOOTING
• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
• No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the "–" terminals of L and R speakers grounded in common?
• Noise interfere with sounds.
* Is the rear ground terminal connected to the car's chassis using shorter and thicker cords?
• Unit becomes hot.
* Is the speaker output lead grounded?
* Are the "–" terminals of L and R speakers grounded in common?
• This unit does not work at all.
* Have you reset your unit?
1
12 V DC, NEGATIVE ground
E
Power cord
K
Remote controller
High
0705DTSMDTJEIN
EN, SP
L
Battery
Heat sink
