MyTana MSA User Manual

Please read these instructions and do a TEST RECORDING
before you perform your first inspection in the field.
Inspect your system carefully upon receipt.
Let us know right away of any damage you note.
Included with your purchase are:
• Removable USB (flash) drive
• WiFi Router (dongle) to establish
wireless connection to your phone
or tablet with our Viewer APP.
Plugs in to USB port, see separate
instructions for using Viewer APP.
• 3 sizes IceBalls (MS11-NG2 only)
• Mini SnoBall (MSA-NG2, MS9 & Combo Kit only)
• Interchangeable mini camera head,
4" IceBall, dielectric grease (Combo Kit only)
Give the unit 30 seconds to fully boot up (MyTana
logo will show when unit is ready to operate)
Blinking Blue light indicates low battery.
It will blink for 5-10 minutes before battery fails.
Plug unit in to standard wall outlet to recharge.
Generates 512hz signal at camera head
(has nothing to do with Wi-Fi)
FIRMWARE VERSIONS These instructions are current for
MyTana Firmware ver. 1755. Older versions may have
slightly different options in the menu screens. To find
your system's version, make these selections on-screen:
Main Menu
> Setup
> System Information
> Firmware
022222
Manufacturers of Quality
Sewer and Drain Cleaning
Equipment since 1957

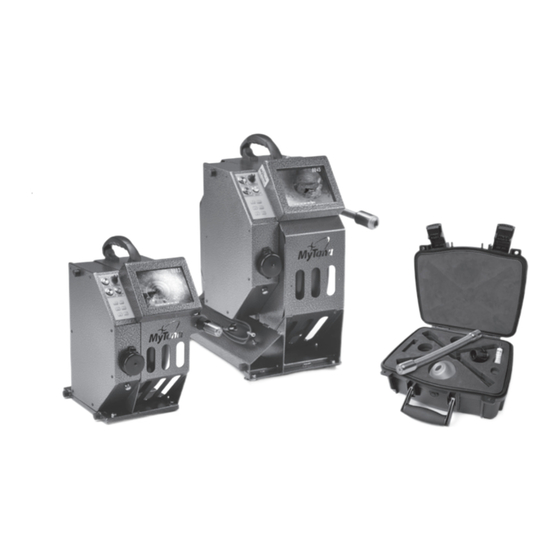

User Guide for MSA, MS9,
MS11-NG2 and MS11+ Combo
MSA-NG2
CONTROL PANEL
POWER
TRANSMIT
www.MyTana.com
746 Selby Ave • St. Paul, MN 55104
fax: (651) 222-1739
MS11-NG2
MS11+
Combo Kit
LED CONTROL
Full clockwise =
full brightness
COUNTER RESET
Resets on-screen footage
counter to zero
— Use these CONTROL PANEL buttons
for recording and working with files.
See next pages.
(800) 328-8170
Factory Direct Customer Service
M –F 7am – 5pm CST
Competent • Polite • Clear
USB PORTS
Microphone
