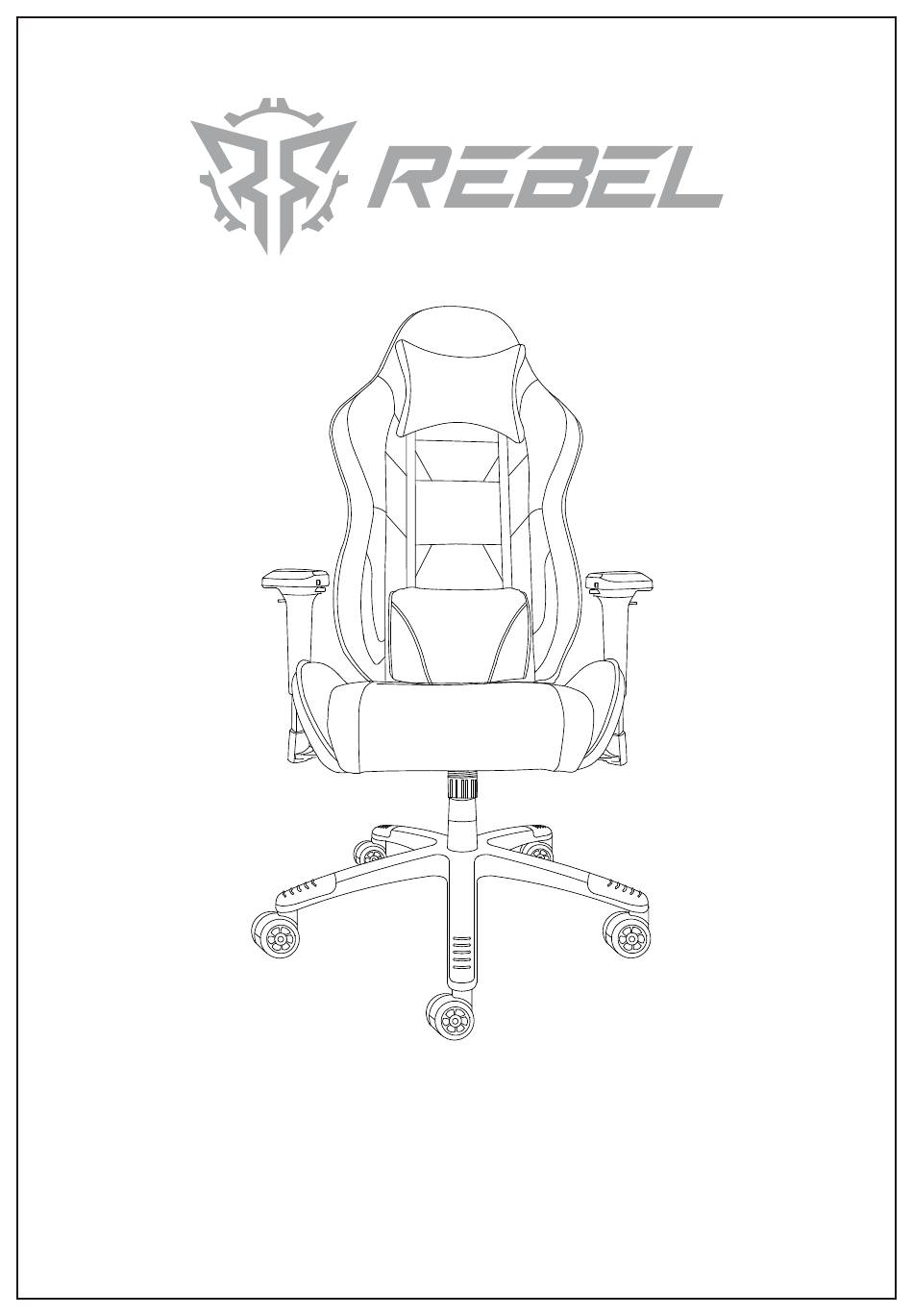

- Page 1 INSTRUCTION MANUAL MODEL: RENEGADE...
- Page 2 CONTENTS...
- Page 3 ASSEMBLY INSTRUCTIONS Turn the star base upright and insert the gas lift in the center hole of the star base. Put the lift cover on top of the gas lift.
- Page 4 Attach the armrests to the seat cushion using eight M8x25mm bolts and tighten with the wrench. Make sure to attach the left and right armrests in the correct position.
- Page 5 Align the seat plate with the bottom of the seat cushion. Make sure that the front of the seat plate is facing the front of the seat cushion. Attach the seat plate to the seat cushion using four M8x25mm bolts and tighten. Turn the seat cushion upright and align the center hole of the seat plate with the gas lift.
- Page 6 Align the angle adjusters with the pre-drilled holes on the seat cushion. Attach the angle adjusters to the cushion using M8x25mm bolts. Take the back cushion and align the angle adjusters with the pre-drilled holes on the back cushion. Attach the angle adjusters with the back cushion using M8x25mm bolts.
- Page 7 STEP 9 : Adjust the balance of the chair and fully tighten all bolts on the angle adjusters. STEP 10 : Attach the left and right side plastic covers using four M5x8mm bolts...
- Page 8 Congratulations! You’ve assembled your REBEL RENEGADE...
- Page 9 OPERATING INSTRUCTIONS...
- Page 10 OPERATING INSTRUCTIONS Up and Down Left and Right Forward and Backward Rotate...
- Page 11 DISCLAIMERS - REBEL is not liable for any damage of life and limb or damage or loss of property caused by or during REBEL products’ use. - REBEL's warranty liability is limited to repair or replacement. The decision on whether to repair or replace belongs exclusively to REBEL.
