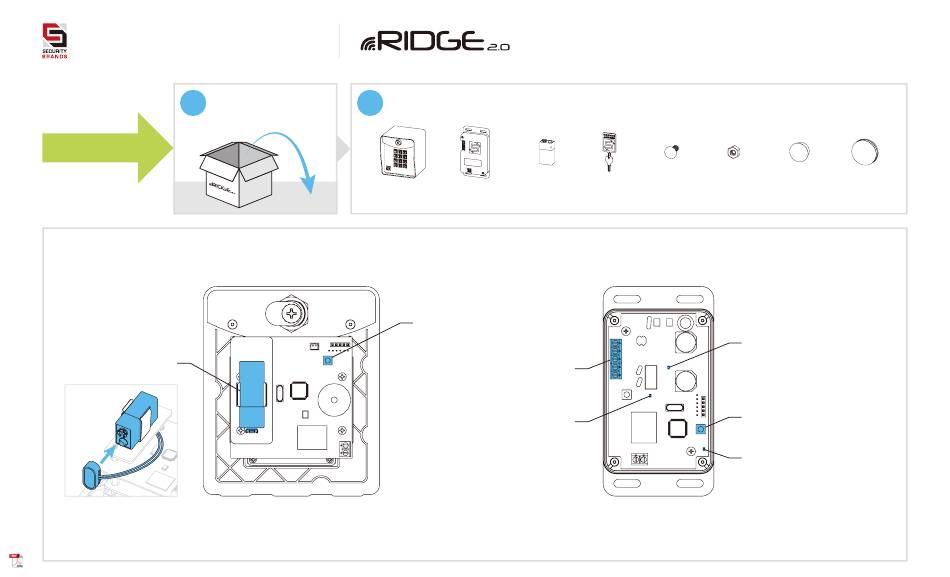

Carefully unpack box.
1
START HERE
What's what?
Important components labeled
9-V Battery
Must be installed before use
Internal wiring not shown for clarity.
G U I D E
Make sure you have all items shown here. (Screwdriver not shown)
2
Keypad Unit
Keypad Unit
Back of front panel shown.
Receiver
9-V Battery
Reset Button
For performing reset procedures
on keypad
Connection Terminals
For wiring to compatible
AC/DC power source and
gate operator or door opener
Relay Status LED
Indicates whether relay is
active or inactive
(Relay is active when lit)
Internal wiring not shown for clarity.
Key
Carriage Bolt
Hex Nut
( 4x )
( 4x )
Power LED
Indicates whether or not unit has power
Programming Button
For pairing receiver to keypad
Programming LED
Indicates status of pairing process
Receiver
Shown with cover removed.
1 of 6
Model
14-500T
Hole Plug
Adhesive
Mounting Pad
Advertisement
Table of Contents
Related Manuals for Ridge 14-500T
Summary of Contents for Ridge 14-500T
- Page 1 1 of 6 QUICK START G U I D E Model 14-500T Carefully unpack box. Make sure you have all items shown here. (Screwdriver not shown) START HERE Keypad Unit Receiver 9-V Battery Carriage Bolt Hex Nut Hole Plug Adhesive...
- Page 2 2 of 6 QUICK START G U I D E Model 14-500T C A U T I O N ! Unlock and remove front panel of Using Tek screws, zip ties, or keypad unit; then using included included adhesive mounting pad,...
- Page 3 3 of 6 QUICK START G U I D E Model 14-500T Remove receiver cover; then Pair keypad unit with receiver by entering While pairing, keypad unit will beep and flash hold down Programming button on sequence below on keypad.(Make sure 9-V Once receiver LED goes out and “good”...
- Page 4 4 of 6 QUICK START G U I D E Model 14-500T Additional programming (continued) Change Master Code Delete All Codes (Cannot Be Undone) Keypad unit will beep and flash while erasing memory then sound “good” tone when complete. Current Master Code...
- Page 5 5 of 6 QUICK START G U I D E Model 14-500T Programming Sub Modes Reset Procedures NOTE: If an error is made during these procedures, an “error” tone will sound and Add Access Code(s) to Channel A Add One-Time-Use Code ( Channel A) you must start again from the beginning.
- Page 6 6 of 6 QUICK START G U I D E Model 14-500T Notes Ridge 2.0 14-500 Call (972) 474-6390 NEED HELP Email techsupport@securitybrandsinc.com We are available Mon–Fri / 8am–5pm Central QSG-14500-EN Rev. B (6/2020) © 2020 Security Brands, Inc. All rights reserved.
- Page 7 FCC Statement: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
