Renzetti True Rotary 2000 Series Quick Start Manual

Note:
We urge you to take time to familiarize yourself with the mechanics of
your presentation vise. Rotary tying can be easier and more productive
see tips (opposite page). Please return your warranty card to validate
your warranty.

Vise Assembly:

Your vise has been assembled and lubricated at the factory. All you have to do
is attach it to your existing c-clamp or pedestal base as shown below. The jaws
on your vise have been hardened and treated with a mil-spec corrosion resistant
coating. After use they should be coated with oil or a rust inhibitor like WD-40
to prevent rust or oxidation caused by acidity in your fingers.
Please note, our warranty does not cover rust damage.
1. Loosen stem lock screw enough to prevent interference with stem. Slide stem into the hole
of pedestal base and secure the stem by tightening the stem lock screw.
2. Slide cradle support collar onto pedestal stem as shown below. (flat side up)
3. Place cradle support on stem as shown.
4. Place the vise onto the stem so the head of the hinge screw (24) is facing you. Install the screw
and tighten. Note The tightness of this screw, will set the hinge presure of the vise head.
5. Slide cradle arm into the hole in the cradle support and secure.
6. Slide cradle support and cradle support collar up or down on stem so that the cradle is
on the center line of the rotary shaft as shown below.
7. Loosen the stem lock screw to turn the vise to the desired position.
Rotary Shaft
Rotary Tension Screw
Cradle Support
Cradle Tension Screw Cradle Arm Lock Knob
Cradle Support Collar Assembly
Stem Support
Pedestal Base Assembly
Stem Lock Screw

Cradle Adjustments:

1. Always adjust the cradle arm so that the cradle is close to the eye of the hook.
This prevents having to wind up a lot of thread after rotary tying.
2. Use the cradle support tension screw to add a little drag to the cradle support
so that the cradle still swings relatively easy.
3. If the cradle is in an awkward position for you it can be rotated as shown in
detail 1. The cradle is fairly snug on the arm so be sure to firmly hold the wire
to prevent bending it.
04/14
Cradle
Center Line
Cradle Arm Assembly
Rotate
Detail 1

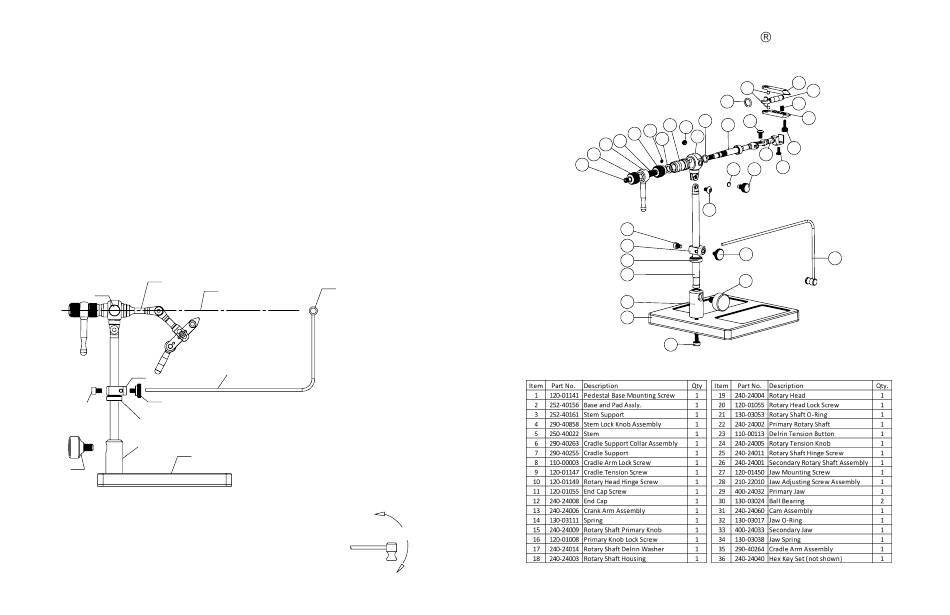

Renzetti Presentation 2000 Series
True Rotary
Model # P2004 Pedestal Base Vise
32
21
18 22
20
16
15
19
17
14
13
12
11
23
10
9
7
6
5
3
2
1
Lubricate all threads and moving parts as needed.
For the complete line of Renzetti products and
accessories. Please visit our website:
www.renzetti.com
U.S. Patents No.5,169,079 & No.4,169,562
33
30
31
34
29
25
28
26
27
24
8
35
4
Made in the U.S.A.
