INSTALLATION AND SERVICE MANUAL
For Installation of Atlantic 1 Pillar light LED.
Model. AA-70077

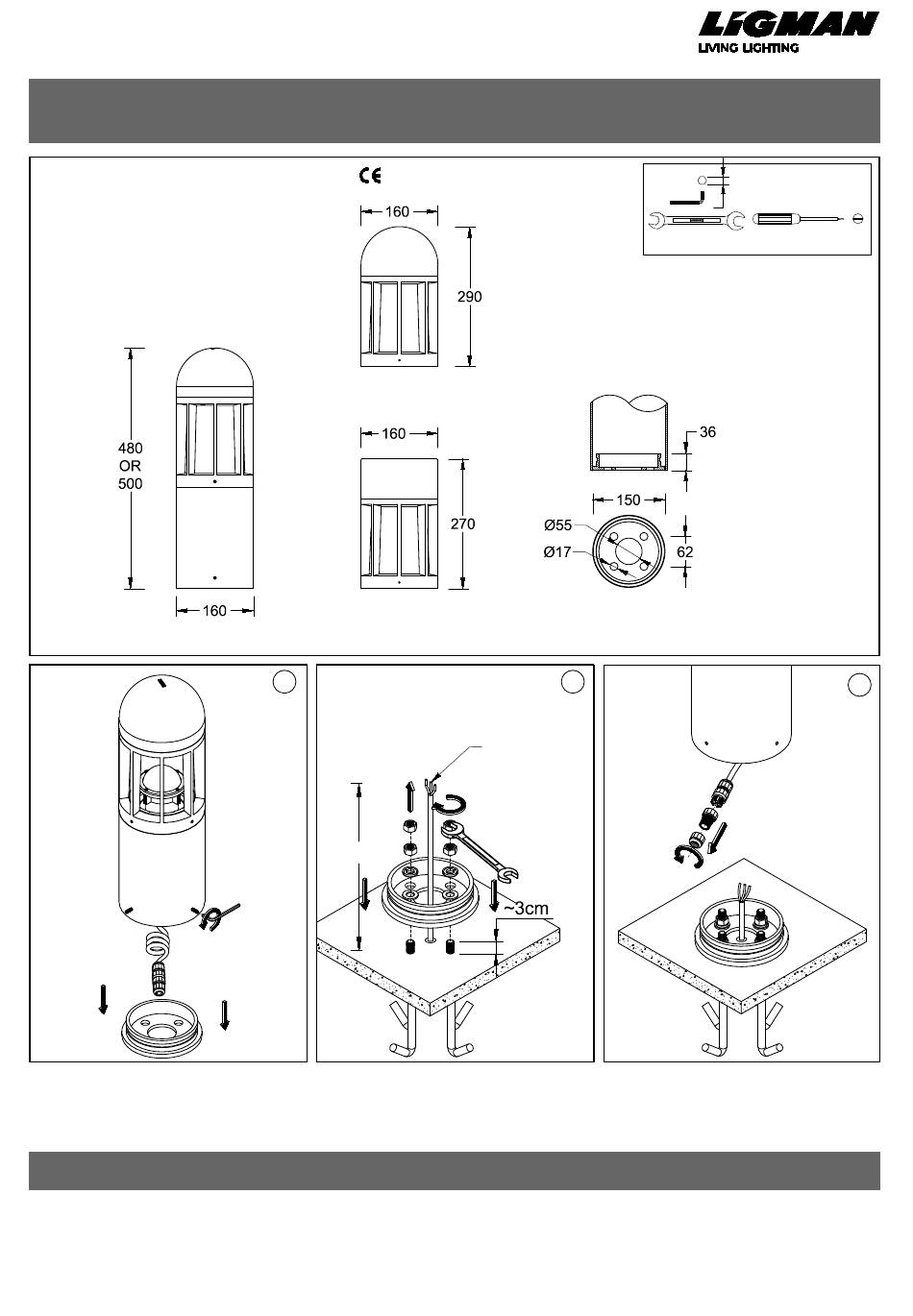

Product drawing (dimensions)
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504
sales.cz@ligman.com
|
www.ligman.com
IP55 IK04 CLASS I
DOME TOP
FLAT TOP
1
~0.2m.
Thailand Headquarters
Ligman Lighting Co., Ltd.
17/2 Moo 4, Monthong, Bangnampreaw
Chachoengsao 24150 Thailand
Tel : +66 (2) 7339140
info@ligman.com
M AA-70077/31/05/17/REV.3
MOUNTING DETAIL
2
Cable OD
Min. 6mm.
Max. 12mm
.
Torque :10.5Nm.
1/2
3
TOOL
3
Ligman Ltd
Regus House, Victory Way
Crossways Business Park
Dartford DA2 6QD
Tel. 0800 975 0622
sales.uk@ligman.com
