LIGMAN AA-10076 Installation And Service Manual

INSTALLATION AND SERVICE MANUAL

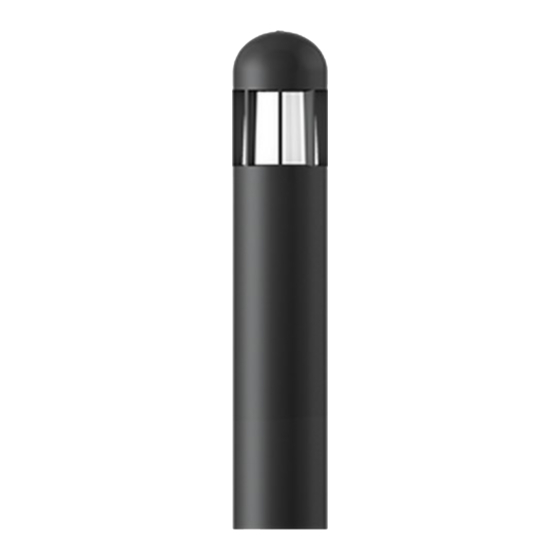

For Installation of Atlantic 1 & 2 Bollard LED.
Model. AA-10076, AA-10086, AA-10096 ,AA-10106 and AA-70087

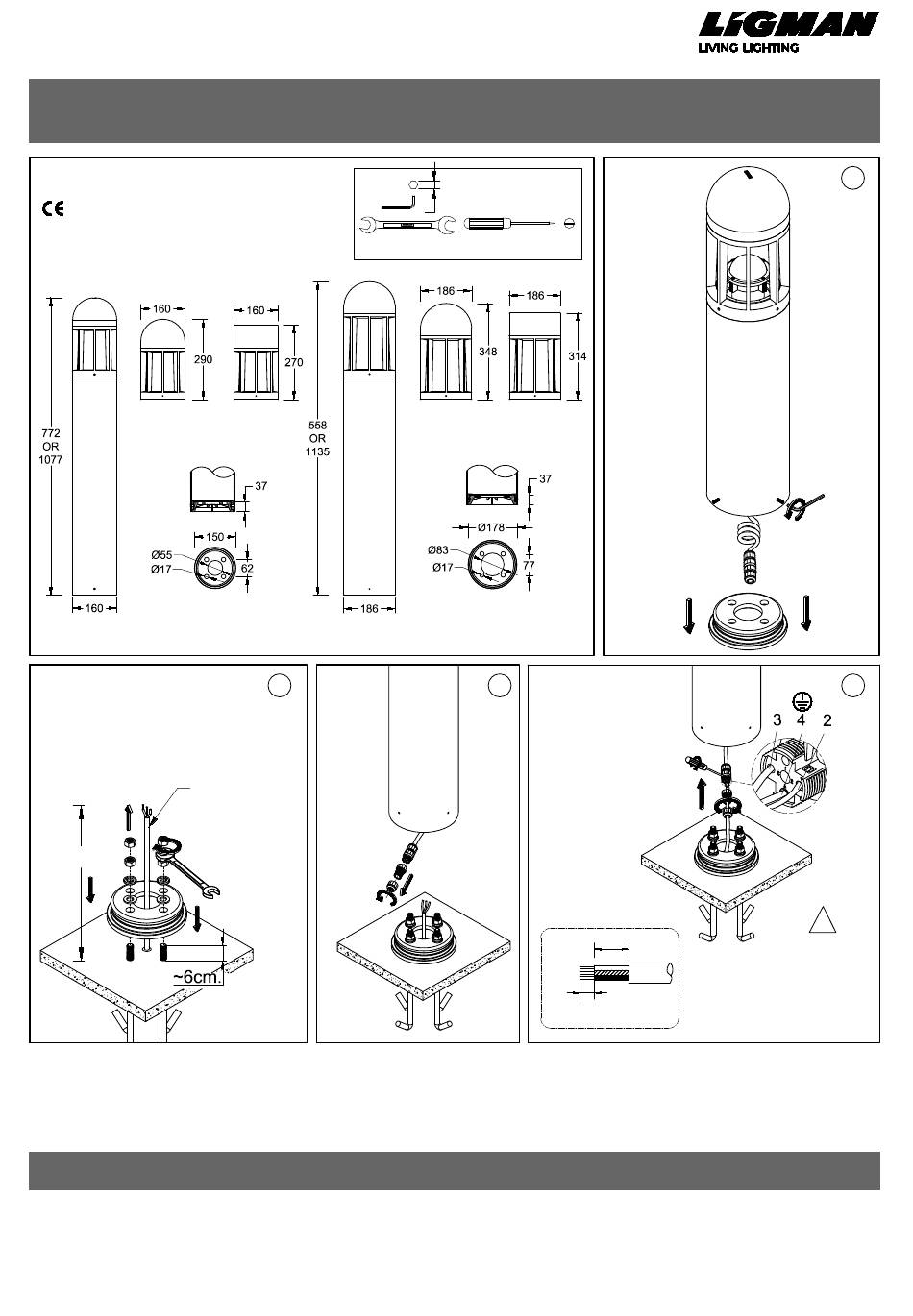

Product drawing (dimensions)
IP55 IK04 CLASS I
DOME TOP FLAT TOP
MOUNTING DETAIL
AA-10076,AA-10086
Cable OD
Min. 6mm.
Max. 12mm.
Torque :10.5Nm.
~0.2m.
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504 sales.cz@ligman.com
|
www.ligman.com
3
DOME TOP FLAT TOP
MOUNTING DETAIL
AA-10096,AA-10106,AA-70087
2
Thailand Headquarters
Ligman Lighting Co., Ltd.
17/2 Moo 4, Monthong, Bangnampreaw
Chachoengsao 24150 Thailand
Tel : +66 (2) 7339140
info@ligman.com
M AA-10076/10/12/16/REV.2
TOOL
3
Torque:0.25Nm.
20
6
CABLE SIZE : 3x1.0mm
1/2
N L
!
WARNING
Switch off mains power supply
before joining the connectors
²
Ligman Ltd
Regus House, Victory Way
Crossways Business Park
Dartford DA2 6QD
Tel. 0800 975 0622
sales.uk@ligman.com
FM-TS-13-1/13-03-2561/REV.4
1
4
