375000

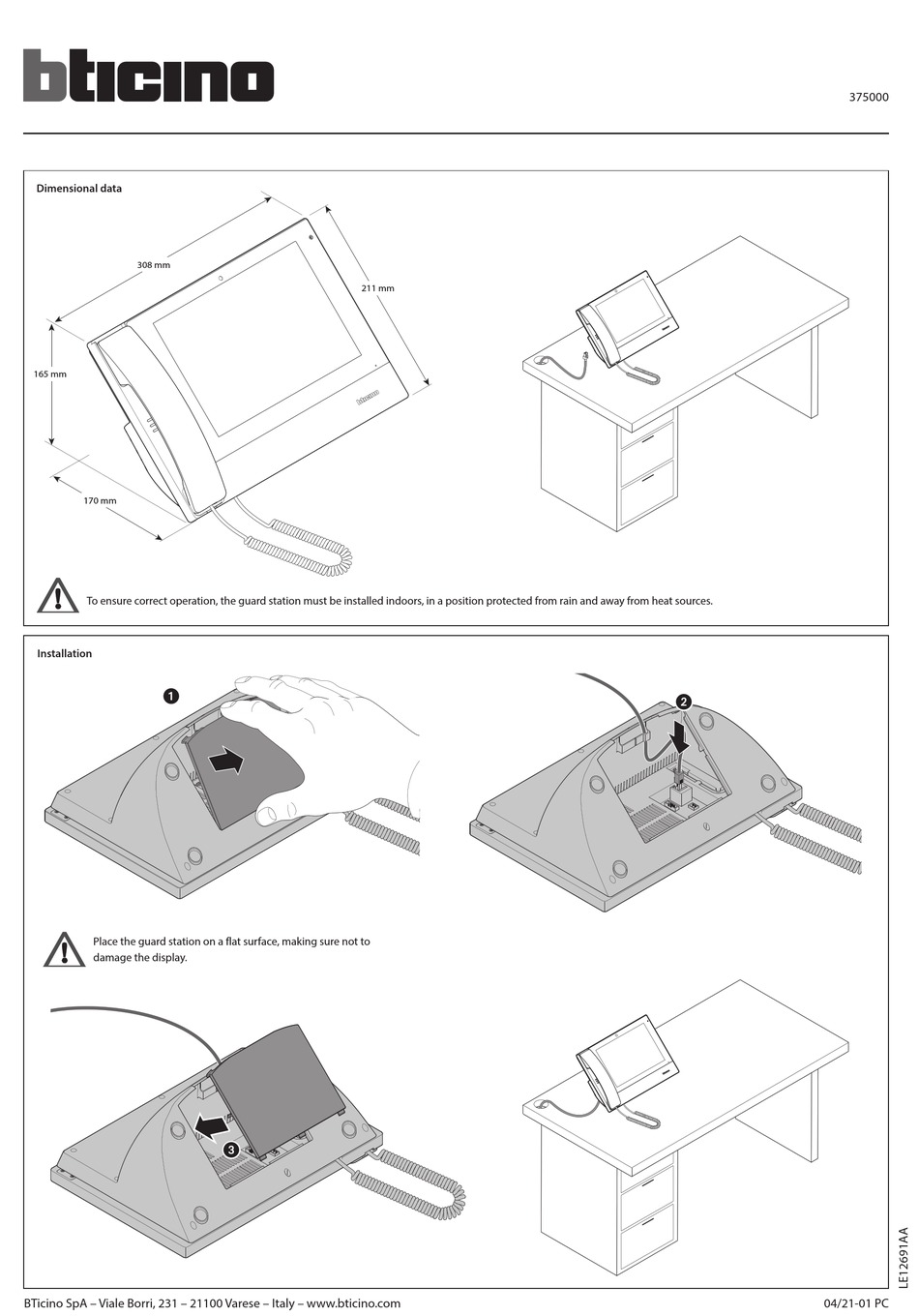

Dimensional data
308 mm
211 mm
165 mm
170 mm
To ensure correct operation, the guard station must be installed indoors, in a position protected from rain and away from heat sources.
Installation
1
2
Place the guard station on a flat surface, making sure not to
damage the display.
3
BTicino SpA – Viale Borri, 231 – 21100 Varese – Italy – www.bticino.com
04/21-01 PC
Advertisement
Related Manuals for Bticino 37500
Summary of Contents for Bticino 37500
- Page 1 To ensure correct operation, the guard station must be installed indoors, in a position protected from rain and away from heat sources. Installation Place the guard station on a flat surface, making sure not to damage the display. BTicino SpA – Viale Borri, 231 – 21100 Varese – Italy – www.bticino.com 04/21-01 PC...

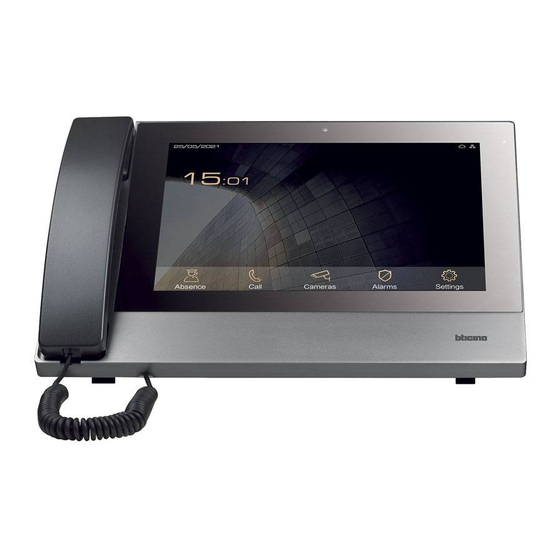

- Page 2 Front and rear view 1. Handset 6. USB 1 connector (not used) 2. Camera 7. Not used 3. Display 10" (touch screen) 8. RJ45 * connector 4. Microphone 9. Additional power supply clamps 5. Notification LED (not polarized) Red led: alarm not processed 10.
