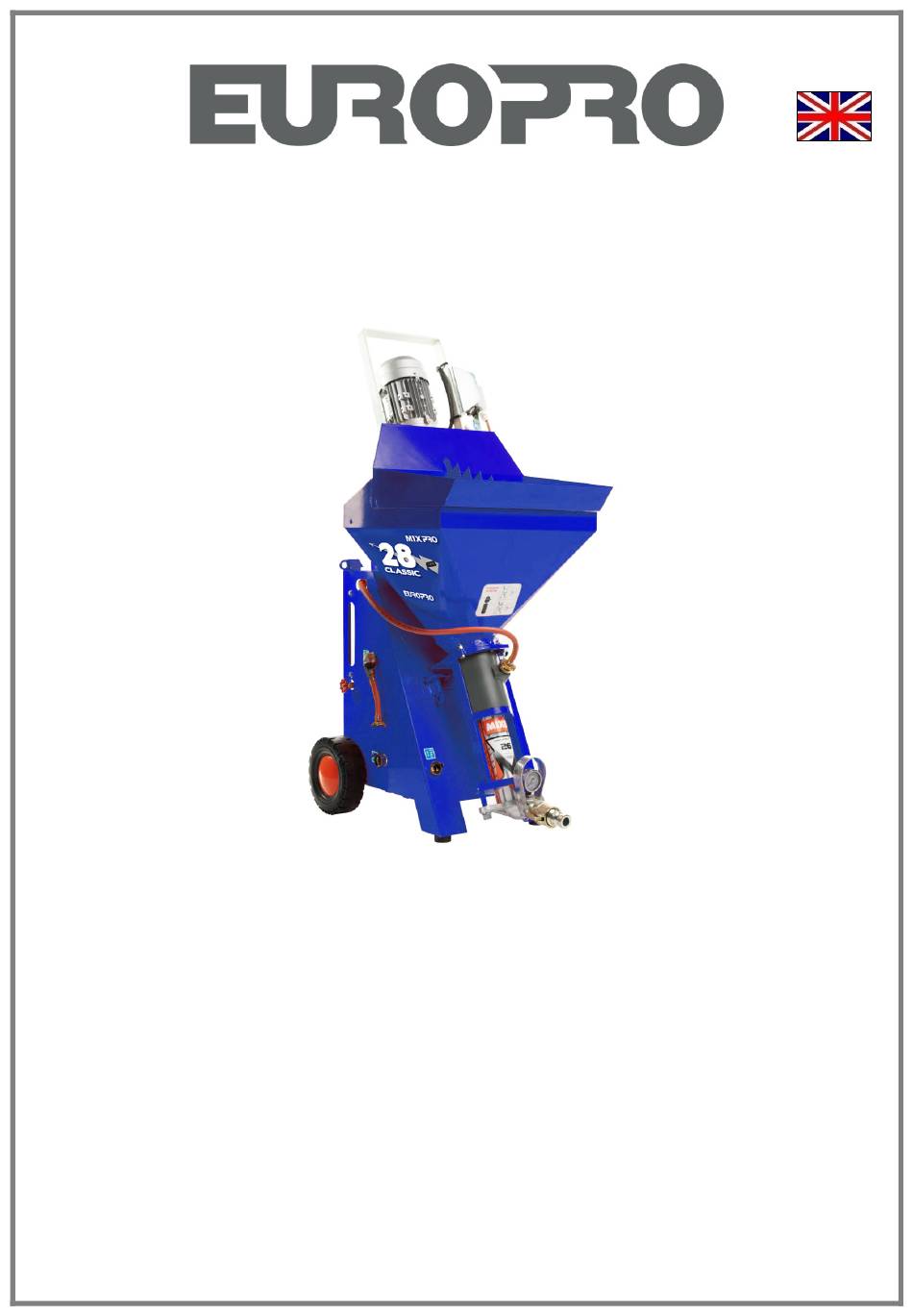

MIXING PUMP
MIXPRO 28 CLASSIC
MANUAL INSTRUCTIONS
ORIGINAL INSTRUCTIONS
Revision n...... of ......
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset
Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIXPRO 28 CLASSIC PLASTER and is the answer not in the manual?

Questions and answers

Summary of Contents for EUROPRO MIXPRO 28 CLASSIC PLASTER

  • Page 1 MIXING PUMP MIXPRO 28 CLASSIC MANUAL INSTRUCTIONS ORIGINAL INSTRUCTIONS Revision n…… of …… EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36 SAS au capital de 400 000€...
  • Page 2 CLEANING THE MATERIAL HOSE ..............20 CLEANING OF THE SPRAYING NOZZLE AIR TUBE ..........21 SWATER DRAINAGE DURING WINTER PERIOD ........... 21 RESEARCH OF MALFUNCTIONS ............... 22 ROUTINE MAINTENANCE ................24 WARRANTY ....................25 Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.2...
  • Page 3: Reserved Rights

    RESERVED RIGHTS The contents on this manual can’t be reproduced and disclosed (totally or partially) without written authorization of the Manufacturer. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.3...
  • Page 4: Declaration Of Conformity

    And the following standards: EN 60204-1:2016 Safety standard of the electrical equipment of machines  EN 12100-1 and 2 Machinery Safety – Essential concepts, main design  principles The technical dossier is kept by Manufacturer. Signed Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.4...
  • Page 5 40 meters Weighted noise pressure level “A”: 92 dB DIMENSIONS OF THE MACHINE MODEL DIMENSIONS (cm) WEIGHT ( without tubes MIXPRO 28 CLASSIC A=159 B=95 C=60 130 kg A= Height B= Width C= Depth Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.5...
  • Page 6 Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.6...
  • Page 7: Parts List

    20) Air outlet coupling 21) Gear motor power plug 22) Lance plug 23) Main power plug 24) Polyurethane mixing chamber 25) Wheels 26) Mixing shaft 27) Safety grid fixing screw 28) Water systems drain Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.7...
  • Page 8 No. 1 lance for glue (E.W.I. model); No. 1 Finishing lance cable (E.W.I. model); No. 1 Instruction manual; No. 1 Antigrip spray for mounting rotor; No. 1 Rod for mounting rotor; No. 1 Tool bag Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.8...
  • Page 9 Separate the parts making up the machine according to the different construction materials (plastic, copper, iron, etc...). Lubricant liquids and any other fluids shall absolutely not be dispersed in the environment. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.9...
  • Page 10: Safety Instructions

    Don’t introduce objects thought the hopper protection grating. Don’t use the machine with the open grating. It is absolutely forbidden to tamper the calibration of pressure reduction valve. Don’t step or pull tubes and the electrical connections. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.10...
  • Page 11: Residual Risks

    FORESEEABLE INCORRECT USE Don’t use different products from the Antigrip, supplied, for danger of malfunctions of the machine. Don’t throw foreign body in hopper (gravel, stones, etc….) for danger of machine breakdown and dangerous projection. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.11...
  • Page 12 ASSEMBLING OF ROTOR AND MIXER Carry out the operations by following the letters in succession. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.12...
  • Page 13 3. Connect the water hose to the connection of the socket "C". 4. Connect the supplied air hose to the attachment of the compressor "B". CONNECTION OF THE MATERIAL CONVEYING TUBE Attention: Performing the disconnection only in the absence of pressure indicated in gauge. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.13...
  • Page 14 CONNECTION OF THE MATERIAL CONVEYING AND AIR TUBES TO THE SPRAYING NOZZLE • Material hose and air hose connection (complete lance alu tube only) • Material hose connection and electric cable connection (glue lance only). Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.14...
  • Page 15: Electrical Connections

    The use of extension cords is admitted only if made in safety standards (cross-section of conductors, insulation, earthing, etc..) A. Connection of the lance electric cable glue lance only); B. General electrical connection. COMPRESSOR ELECTRIC CABLE CONNECTION C. Compressor electric cable connection. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.15...
  • Page 16: Control Panel

    • “Return” Pos.: stops the mixer rotation; • "Automatic" Pos.: starts the machine in automatic mode. 2-position selector • Pos. "DX": Select in working mode for pasta “DX-SX” products; • Pos. "SX": Select in working mode for dry products; Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.16...
  • Page 17: Checks Before Switching On

    Make sure that the air, water and material conveying tubes are well stretched avoiding any constriction. Use the compulsory personal protective devices provided by own employer. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.17...
  • Page 18: Machine Preparation

    Stop the machine pressing the button “0”; g. Connect the material conveying tube to the machine material out-put connection pulling the side levers. h. Connect the lance to the material hose and to the water hose. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.18...
  • Page 19 1. Stop the machine by closing (-) the valve on the spray lance 2. To resume work, open (+) the valve on the spray lance For pauses longer than 15 minutes it is mandatory to carry to shutdown the machine Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.19...
  • Page 20: Cleaning The Hopper

    7) Open the service tap till the two foam rubber balls come out from the opposite end; ATTENTION: before disconnecting the material conveying tube, it is compulsory to check that the equipment is not under pressure. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.20...
  • Page 21 1. Disconnect the water inlet tubes of the machine and mixing chamber; 2. Open the tap placed under the flow meter of the system water drain; 3. Discharge the water opening the solenoid valve through the selector till no more water comes out. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.21...
  • Page 22 1) Blocked pump 1) Reset intervention thermal ask any The water pump technical assistance interven-tion; stops—thermal 2) Damaged cables and protection tripping plug 2)check the cable and plug and replace any damaged parts Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.22...
  • Page 23 3) mixing chamber dirty. 2) clean the mixer; h e spraying noz- parts. 3) clean the mixing chamber zle too dense. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.23...
  • Page 24: Routine Maintenance

    Weekly Gearmotor. Visual inspection and, if necessary, topping up with oil type BERGOIL “BERGOFLUID 1000” or equivalent. Water filter. Cleaning Compressor filter. Cleaning Six-monthly Compressor filters. Replacement Gaskets of chamber mixing Replacement (Camix). Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.24...
  • Page 25: Warranty

    8) It is explicitly agreed upon, that the manufacturer shall not be held responsible for any liability following any possible damages that the purchasers may suffer resulting from loss of or diminished production due to possible construction defects subject to this warranty. Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.25...
  • Page 26 Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.26...
  • Page 27 Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.27...
  • Page 28 Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36 SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B Instruction Manual MIXPRO 28 CLASSIC EUROPRO pag.28...
