ASSEMBLY

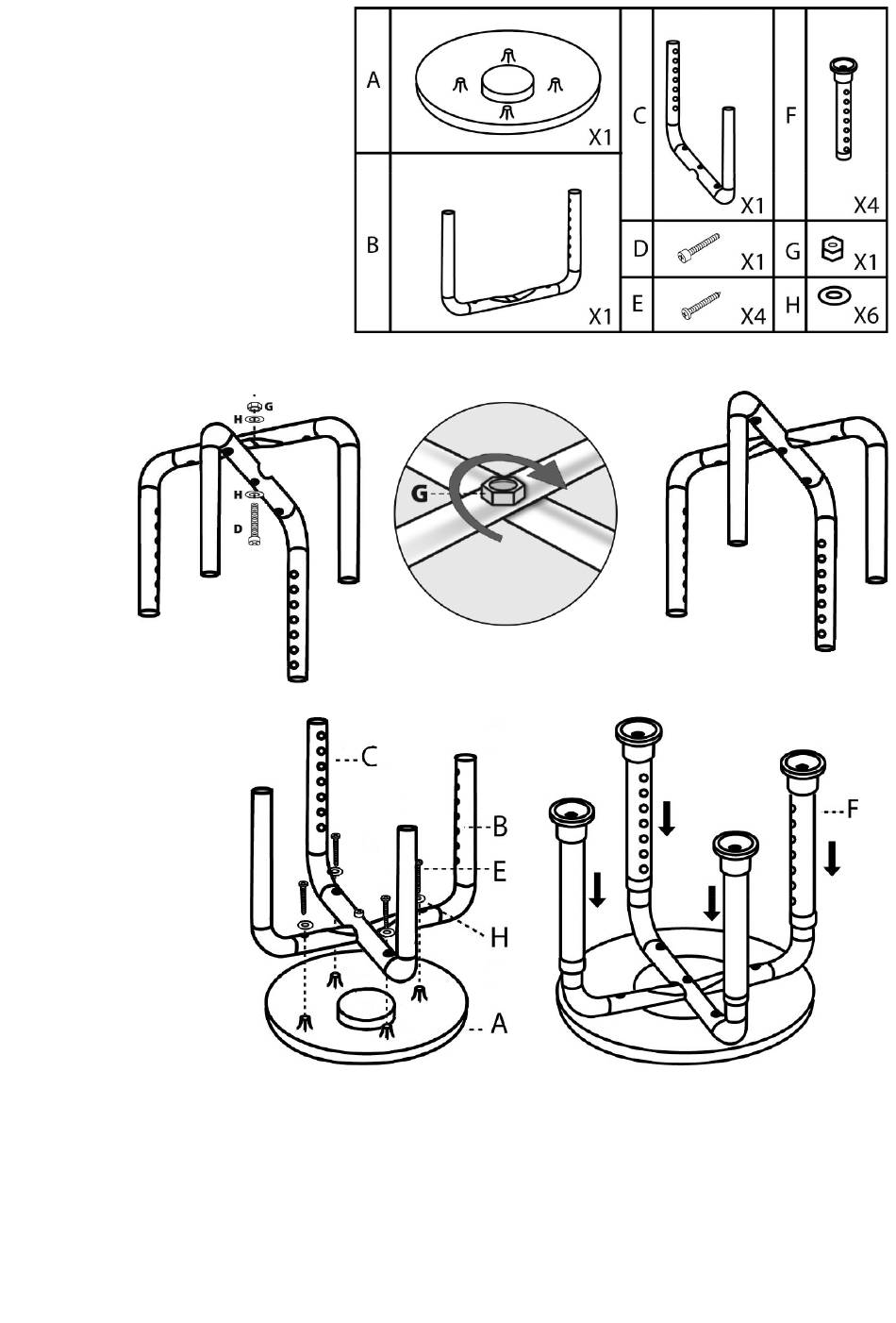

1. Take all parts out of
packaging and check before
assembly
(see Fig. 1).
2. Assemble legs as shown in
Fig. 2. Ensure that nut G is
fully tightened.
3. Attach the
assembled legs to
the seat (fig. 3)
4. Make sure
that each leg is
fully locked into
position and is fully
tightened
5. To adjust the
height of the seat,
press the locking
pin on the leg and
slide the leg out to
the desired height, making sure that the locking pin relocates in one of the holes.
This process must be carried out on all four legs and they must be at the same
setting for safety
NB: Never install the extension legs unevenly or slanting, this will compromise
the safety of the user.
3
Fig. 1
Fig. 2
Fig. 3
