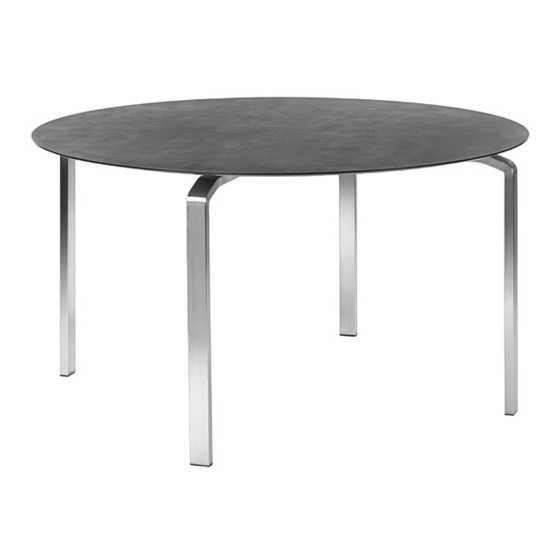

Assembly Instruction round Kyoto Tables – Item No 1815 and 1832
Congratulations! You have made the right decision in selecting a piece of furniture from our
Collection Kyoto. By purchasing this fine piece of furniture you have acquired a high quality
product.
For packing reasons and to ensure a safe and faultless delivery this product is only partially
assembled.
We have illustrated the assembly procedure clearly and in detail. It only takes a few simple
steps to assemble the table. No special skills are required. Just follow our easy to understand
instructions below.
For assembly, place the parts of the table on a soft pad (i.e. the delivery carton) to avoid any
damage. It is advisable to lay the frame (A) headlong on the soft pad assemble with two
persons.
Drawings indicated on page 2.
Content Table Frame:
(1)
Hexagon socket,
counter sunk screw
M6x35
(2)
Nut M6
(I)
Allen Key SW4
(A)
Frame round
(B)
Leg, single
(C)
Leg, twice
(D)
Mounting Plate
Caution:
Please note, that in the beginning all screws have to be softly fixed and afterwards tightened.
Step 1 – Table Frame:
At a time insert a screw M6 (1) from beneath through the outer drilling hole of legs (B+C) and connect
them to the table frame (A).
Step 2 – Table Frame:
At a time insert now two screws M6 (1) from beneath through the inner drilling holes of legs (B+C)
and througt the mounting plate (D). Then secure them from top with nut M6 (2).
Step 3 – Table Frame:
Tighten all screws by using the Allen key (I).
Step 4 – Table Top:
According to drawing, glue the rubber pads (3) to the designated positions at the table frame (A).
Step 5 – Table Top:
Adjust the top (E) to the centre and place it carefully on the rubber pads (3). Lift the top a bit in order
to relocate.
Check and tighten screws if necessary from time to time.
Please call the number indicated below if you have any problems during assembly.
All manuals and user guides at all-guides.com
12x
8x
1x
1x
2x
1x
1x
Assembly Hotline
+49 (0) 70 21 / 72 76 - 0
Content Table Top:
(3)
Rubber Pad
self-adhesive
(E)
Table Top
8x
1x
(1752b)
