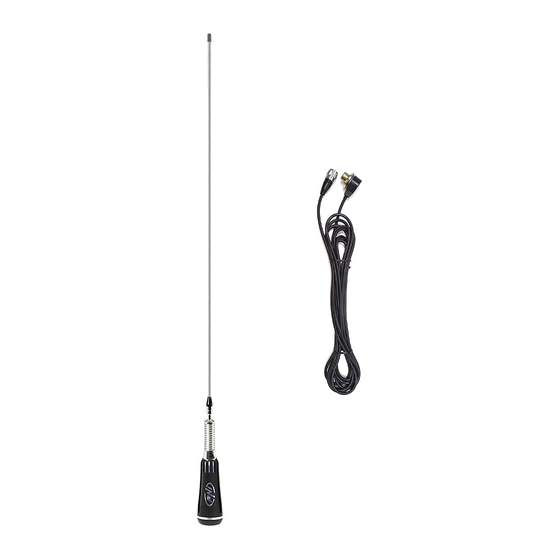

CB Antenna PNI LED 2000 with 145 mm magnetic
mount
Technical specifications
Frequency: 26 - 28 MHz
Power: 100 W (continuous) / 500 W (for short time)
S.W.R.: ≤ 1.2:1
Whip length: 750 mm
Impedance: 50 Ohm
Connector: PL259
Magnetic mount: 145 mm
Cable length: 4 meters
Temperature: -26°C ~ +60°C
Installation
Fix the antenna onto the magnetic threaded base previously attached to
the car dome.
Connect the PL259 plug on the magnetic base cable to a CB radio.
Measure the SWR of the antenna in an open area using a reflectometer.
In some cases, it might be necessary to raise or shorten the whip of the
antenna to get an optimal SWR value. For maximum performance, we
recommend that this procedure, called tuning, be performed by qualified
personnel.
Datasheet
1
