User Manual - PNI SMART LOCK User Manual

Security cable PNI Smart Lock, Technical specifications
• Locking unit housing material: Nylon
• Cable material: steel
• Cable diameter: 6 mm
• Cable length: 2 m
• Working temperature: -40°C ~ +100°C

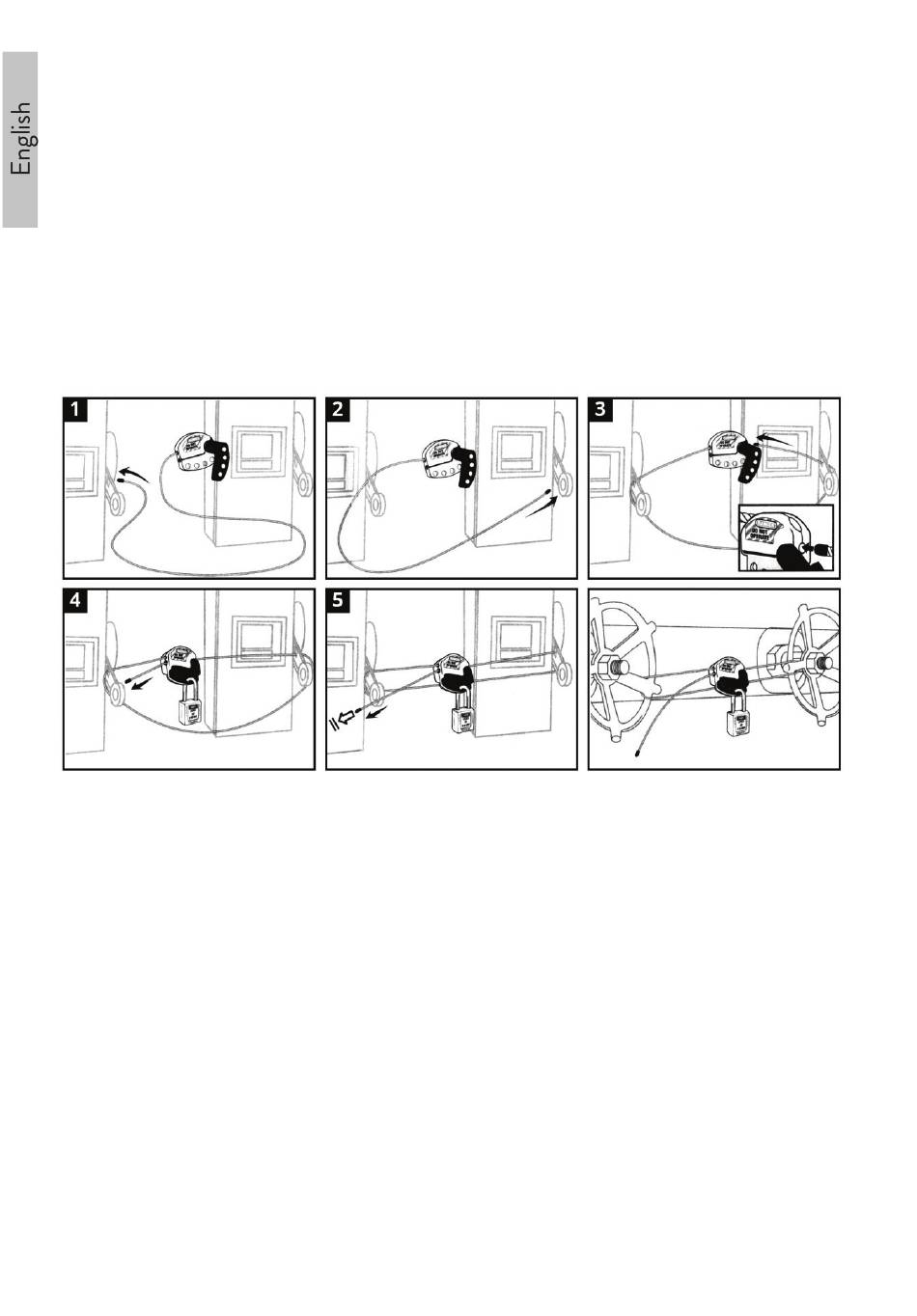

Assembly instructions
1. Prepare the structure you are going to block.
2. Lower the lock lever perpendicular to its body.
3. Pass the end of the cable through the structure you want to secure.
4. Return and pass the same end of the cable through the hole on the
blocker in the direction indicated by the arrow.
5. Turn the lock lever back to its original position until the holes of the lever
align with the holes of the lock body.
6. While holding the lock with one hand, pull the cable with the other hand
as much as possible to secure the fittings.
7. Pass the lock through the holes of the blocker. Block the lock.
Note: Pull the cable out of the blocker only with the lever open.
