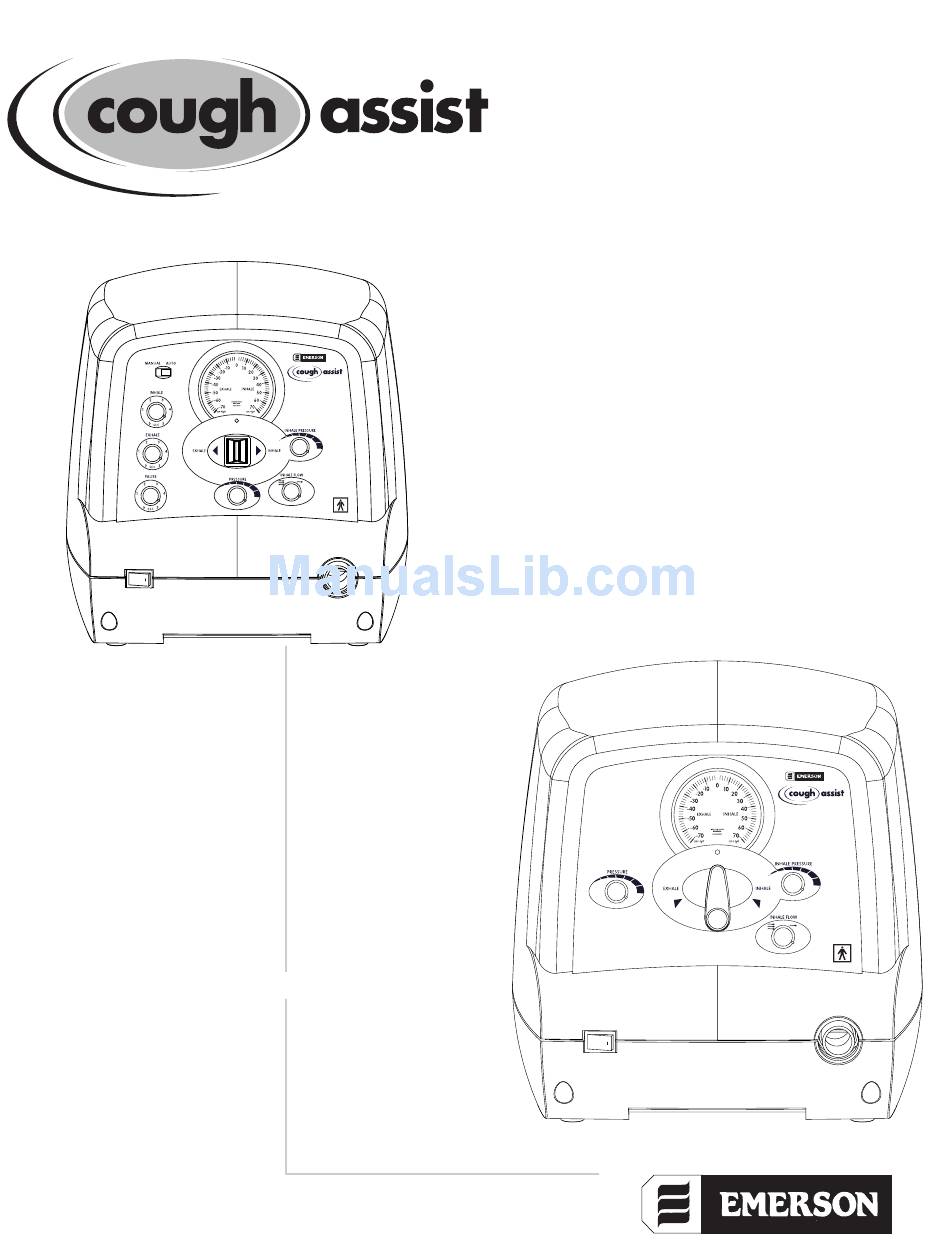

- Page 1 ™ USER’S GUIDE CA-3000 & CA-3200 ODELS CM-3000 & CM-3200 ODELS EDICAL PRODUCT INNOVATIONS SINCE...
-
Page 2: Table Of Contents
T A B L E E C T I O N C O N T E N T S Introduction ......Warnings and Cautions . -
Page 3: Introduction
CoughAssist MI-E (CA-3000, CA-3200) has timing mechanisms to automate the inspiratory and expiratory cycles as well as a manual control. The manual CoughAssist MI-E (CM-3000, CM-3200) uses a manually operated valve to shift from positive to negative pressure and back. -
Page 4: Warnings And Cautions
A R N I N G S E Q U I P M E N T C L A S S I F I C AT I O N Per IEC 60601-1, Medical Electrical Equipment, General Requirements for Safety, the CoughAssist MI-E is classified as follows: SECTION 2 A N D... - Page 5 I M P O R TA N T S A F E G U A R D S E F I N I T I O N S Throughout this guide the following definitions apply: • Warning/DANGER: A condition that could cause electrocution or injury to a user or operator if instructions are not followed.
- Page 6 A R N I N G S A N D A U T I O N S Replace fuses only with ones having the same ratings for blow characteristics, current and voltage. Do not remove the cover; there are no serviceable parts inside the unit. Refer all service to authorized personnel.
-
Page 7: Specifications
Mode of Operation: Models CA-3000, CA-3200: Automatic and Manual Timing Models CM-3000, CM-3200: Manual Timing Inhalation, Exhalation, Pause Times: CA-3000, CA-3200: Automatic mode, 0 to 5 seconds CM-3000, CM-3200: User variable “Off” Position: Yes - connects to ambient Blower Type:... -
Page 8: Controls, Connectors And Visual Indicators
O N T R O L S C O N N E C T O R S SECTION 4 & V I S U A L I N D I C AT O R S C A - 3 0 0 0 , C A - 3 2 0 0 R O N T A N E L 1. - Page 9 C M - 3 0 0 0 , C M - 3 2 0 0 R O N T A N E L O N T R O L S Pressure: Varies the inhalation and exhalation pressures together (also see Inhale Pressure). Manual Control Lever: Use to manually cycle the unit to inhale or exhale.
- Page 10 L 3 5 0 V A C K A N E L A L L M O D E L S Cord Wrap/Breathing Hose Holder Power Cord Receptacle: Securely connects the power cord to the receptacle. Replacement fuse location This symbol, located next to the protective earth terminal inside the unit, signifies that the device is earthed (grounded).
-
Page 11: Operating Procedure
SECTION 5 N I T I A L Install the power cord right angle connector to the receptacle on the rear of the device. Run the cord inside of the lower cord wrap to act as a strain relief. Position the unit on a suitable surface within easy reach of the patient, or the operator of the unit. - Page 12 R E S S U R E D J U S T M E N T Each individual patient may require special settings for the maximum positive (inhalation) and negative (exhalation) pressures. For a patient using this device for the first time, it is advisable to begin with lower pressures, such as 10-15 cm H O positive and negative, to familiarize the patient with the feel of mechanical insufflation-exsufflation.
- Page 13 I M I N G D J U S T M E N T ( C A - 3 0 0 0 , C A - 3 2 0 0 If the automatic feature of the CoughAssist MI-E is to be used, adjust the times as follows: Each cough cycle consists of an inhalation phase, an exhalation phase and a pause phase, after which inhalation begins again.
- Page 14 P E R A T I N G R O C E D U R E Automatic Operation (CA-3000, CA-3200 models only): Attach the appropriate interface to the patient. To operate the unit automatically, set the manual/auto switch to the auto position.
- Page 15 SECTION 6 A T I E N T I R C U I T Institutional (hospital) Use: Breathing Hose, Patient Interface and Adapters: If the device is to be used by more than one patient, the circuit must be replaced. Bacterial/Viral Filter: If the device is to be used by more than one patient the filter must be replaced to prevent cross contamination.
-
Page 16: Accessories
C C E S S O R I E S The following replacement accessories may be obtained from J.H. Emerson Co. Part No. 325-9217 Part No. 732-1136 Part No. 740-1006 Part No. 740-1008 Part No. 740-1007 SECTION 7 CoughAssist MI-E Patient Circuit... -
Page 17: Preventive Maintenance And Troubleshooting Guide
WARNING: Do not remove the cover; there are no serviceable parts inside the unit. Refer all service to authorized personnel. Technical Information: J.H. Emerson Co. will make available on request a list of all repairable exterior parts with descriptions. Interior schematics and circuit diagrams will be made available to qualified technical personnel only. - Page 18 Spring Clip Fuse Holder R O U B L E S H O O T I N G Pressure Gauge Adjustment: If the pressure gauge does not go to “0” when the device is turned off it must be readjusted. Remove the adhesive cover over the pressure gauge zero adjust and turn the adjust screw to “0”...
-
Page 19: Warranty And Service
U S T O M E R For questions about this product please con- tact Customer Service at: J.H. Emerson Co. 22 Cottage Park Avenue Cambridge, MA 02140-1691 Phone: 800-252-1414 or 617-864-1414 Fax: 617-868-0841 Email: info@jhemerson.com... - Page 20 J.H. E MERSON 22 Cottage Park Avenue Cambridge, MA 02140-1691 Phone: 800-252-1414 or 617-864-1414 Fax: 617-868-0841 Email: info@jhemerson.com Web: www.coughassist.com 910-1111-2...
