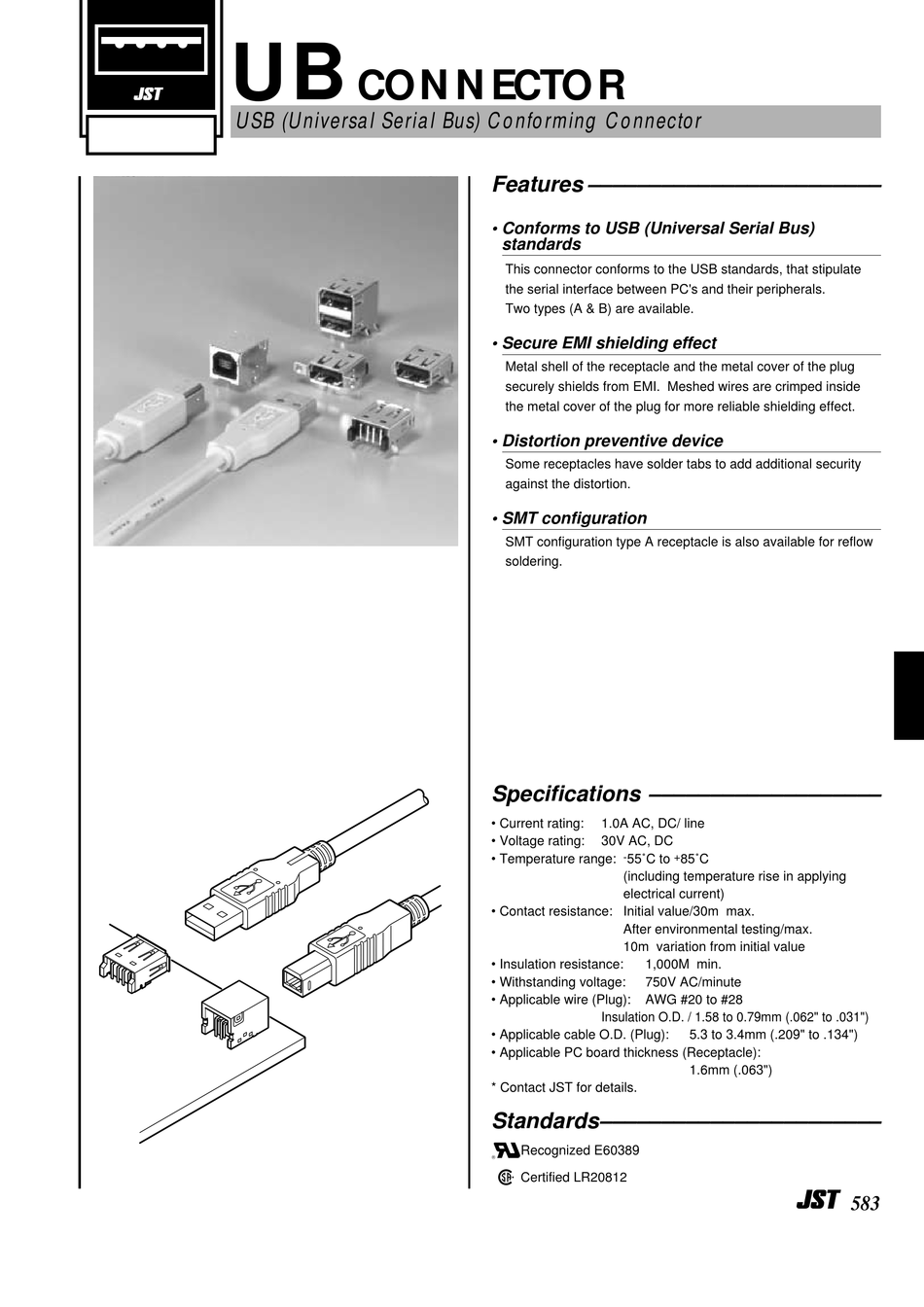

USB (Universal Serial Bus) Conforming Connector
Features ––––––––––––––––––––––––
• Conforms to USB (Universal Serial Bus)
standards
This connector conforms to the USB standards, that stipulate
the serial interface between PC's and their peripherals.
Two types (A & B) are available.
• Secure EMI shielding effect
Metal shell of the receptacle and the metal cover of the plug
securely shields from EMI. Meshed wires are crimped inside
the metal cover of the plug for more reliable shielding effect.
• Distortion preventive device
Some receptacles have solder tabs to add additional security
against the distortion.
• SMT configuration
SMT configuration type A receptacle is also available for reflow
soldering.
Specifications –––––––––––––––––––
• Current rating:
1.0A AC, DC/ line
• Voltage rating:
30V AC, DC
• Temperature range:
-
55˚C to
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/30m Ω max.
After environmental testing/max.
10m Ω variation from initial value
• Insulation resistance:
1,000M Ω min.
• Withstanding voltage:
750V AC/minute
• Applicable wire (Plug):
AWG #20 to #28
Insulation O.D. / 1.58 to 0.79mm (.062" to .031")
• Applicable cable O.D. (Plug):
• Applicable PC board thickness (Receptacle):
* Contact JST for details.
Standards–––––––––––––––––––––––
0
Recognized E60389
1
Certified LR20812
+
85˚C
5.3 to 3.4mm (.209" to .134")
1.6mm (.063")
