PC/104 carrier board for miniature amplifiers of the MAL series
Features
8 sockets for MAL amplifiers
integrated power supply
mounting in PC/104 systems
The PC/104 carrier board BP104
provides for 8 DIL sockets to plug
in
... 8 measuring amplifiers ...
Connections

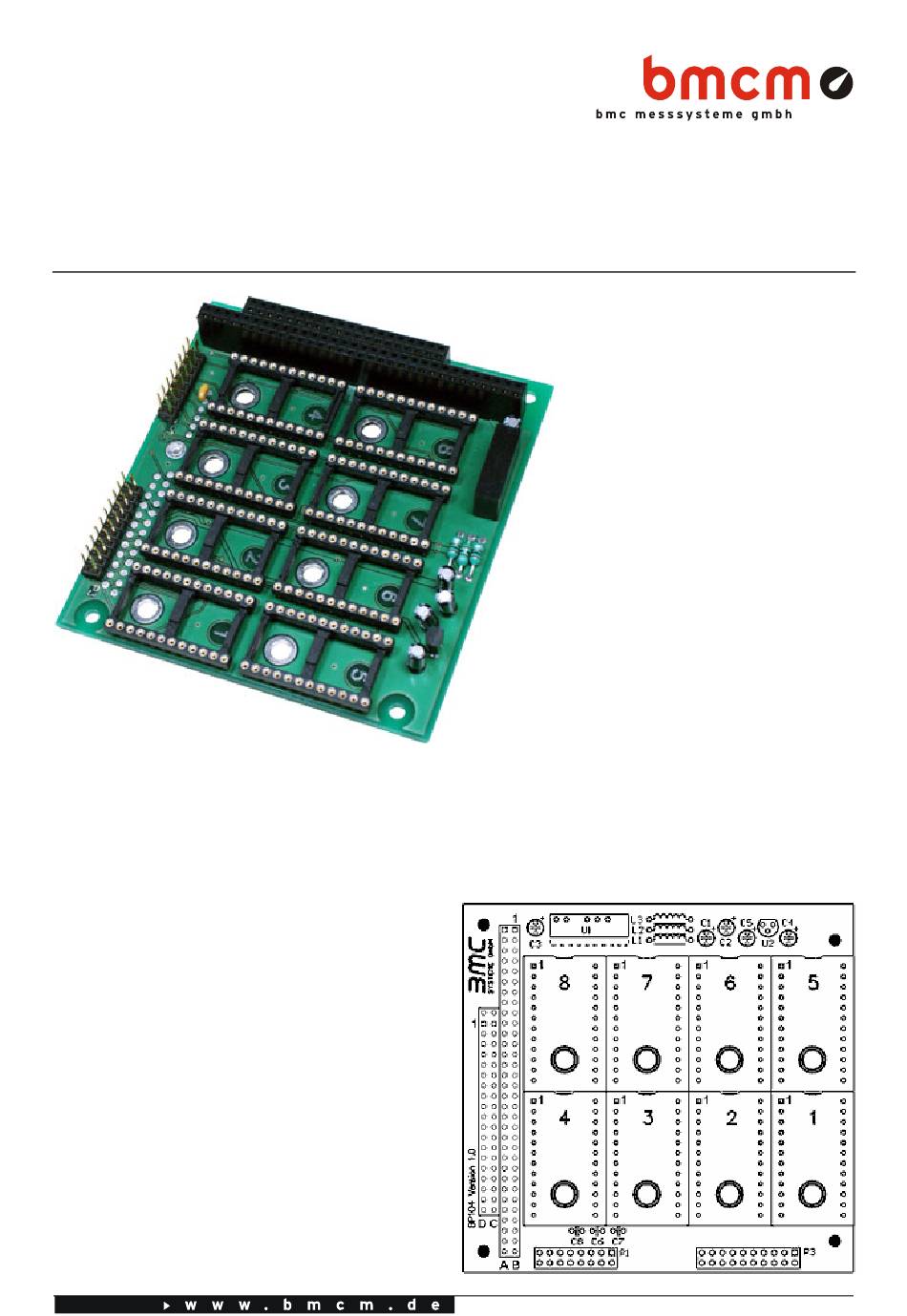

The figure on the right gives an overview of the com-
ponents and the connections of the BP104.
P3 is the analog input plug, P1 the analog output
plug.
The power supply is lead out at the PC/104 system
plug. The 5V DC voltage is electrically isolated by a
DC/DC converter on the BP104.
The amplifiers slots are numbered from channel 1 = 1
to channels 8 = 8 on the board. When mounting the
MAL measuring amplifiers on the carrier board
please observe their correct alignment (Pin1).
Applications
supervision of processes
control
development
of the MAL series. Integrated into
a PC/104 system together with a
PC measuring card you get an
efficient complete measuring sys-
tem. The BP104 provides the
plugged MAL and connected sen-
sors with
... electrically isolated
power supply ...
from the PC/104 system. The
measuring amplifiers required for
signal conditioning are
... reasonable ...
standard measuring amplifiers.
On account of the missing electri-
cal isolation of the measuring
amplifiers remember to have a
good shared potential of the meas-
ured signals to receive optimum
results.
The in- and output signals are
connected at one plug each.
The bmcm measuring systems
provide for an internal connection
for the analog inputs, so that the
output signals with short lines can
be lead inside the device between
the BP104 and the measuring
system.
