bmcm BP16 Instructions Manual

BP16 / BP16-PC
Carrier board (with housing) for measuring amplifiers of the MAL series

Features

•
16 DIL sockets for MAL amplifiers
•
37-pole Sub-D input socket
•
37-pole Sub-D output socket
•

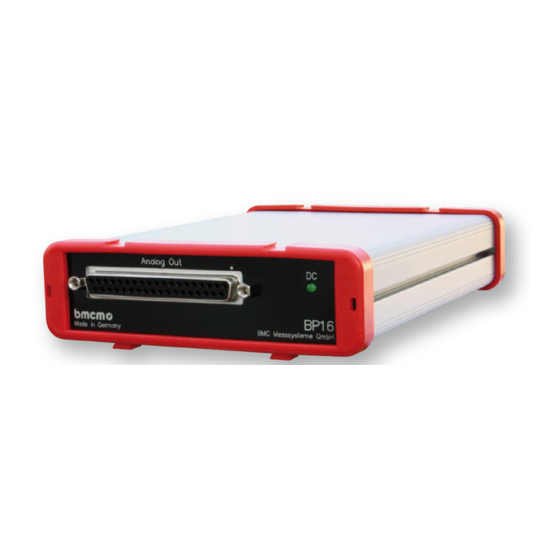

BP16: in external metal housing
•
BP16-PC: for installation in the PC
The BP16/BP16-PC (BackPlane)
features slots for
... 16 measuring amplifiers ...
of the MAL series and of other
manufacturers.
The BP16 is a backplane for am-
plifiers with housing used as an
external device, whereas
BP16-PC can be integrated in a
PC and connected internally to a
PC measuring card.
The BP16 / BP16-PC provides all
included amplifiers with

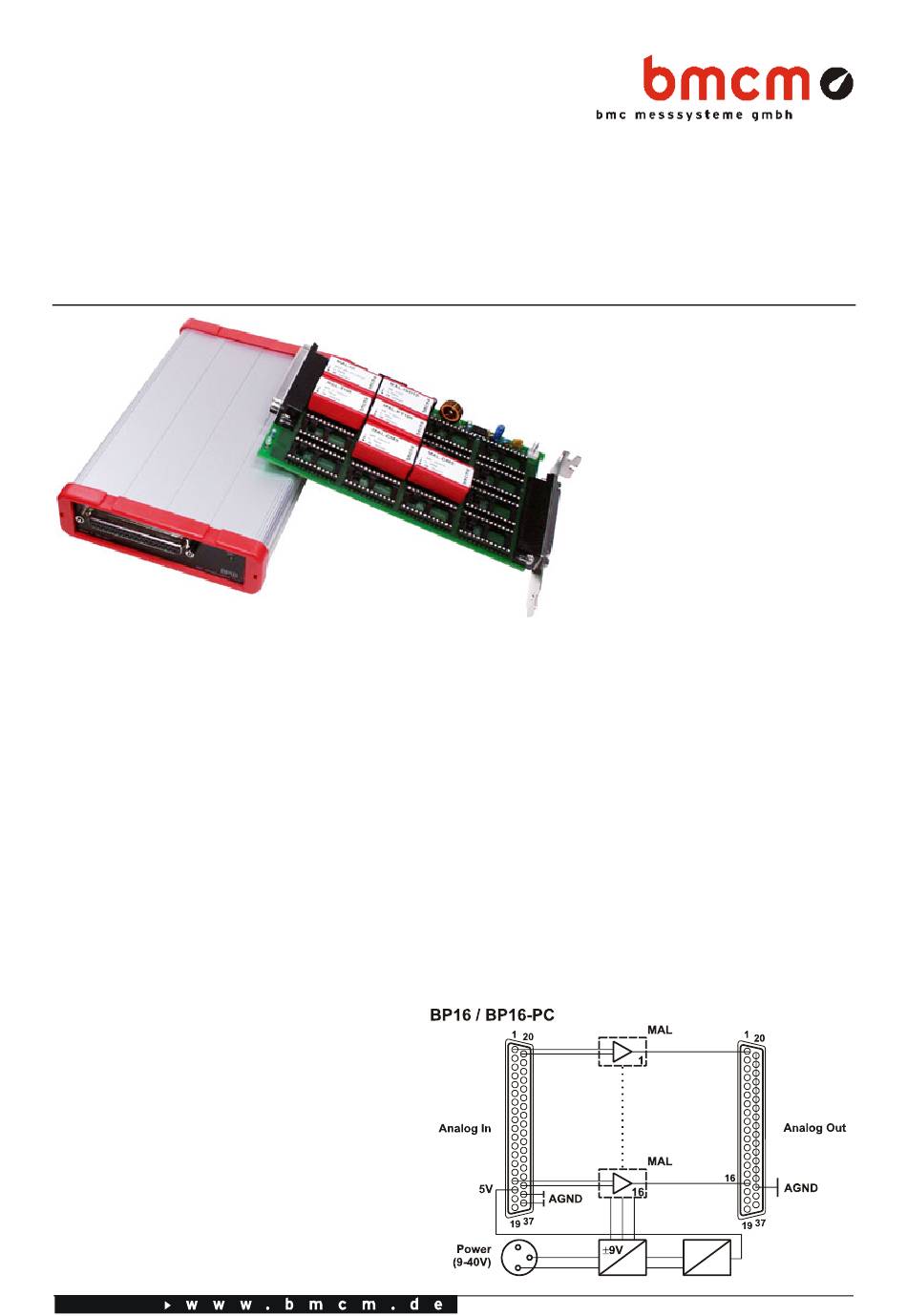

1 Block diagram
Applications
• controlling of processes
• development
• signal conditioning
• sensor adjustment
... electrically isolated supply ... .
For sensor supply additionally
... 5V, 120mA ...
with electrical isolation are pro-
vided.
The measuring amplifier modules
the
needed for signal conditioning are
... very reasonable ...
standard amplifiers.
To achieve optimum measuring
results, please see for a good sha-
red potential of the signals to be
measured, as there is no electrical
isolation of the measuring amplifi-
ers.
The input signals are connected at
a 37-pole Sub-D socket. The out-
put signals of the individual meas-
uring amplifiers can also be rea-
ched at an additional 37-pole Sub-
D socket.
The measuring cards of BMC
Messsysteme GmbH have an in-
ternal connection for analog input
channels, so that measuring signals
with short lines can be lead di-
rectly from the BP16-PC to the
measuring system.
As the BP16-PC does not need
much space the complete elec-
tronic equipment for measuring
data acquisition can easily be in-
stalled in portable PCs.
If using the appropriate amplifiers
also multi-conductor technique can
be realized.
Page 1
