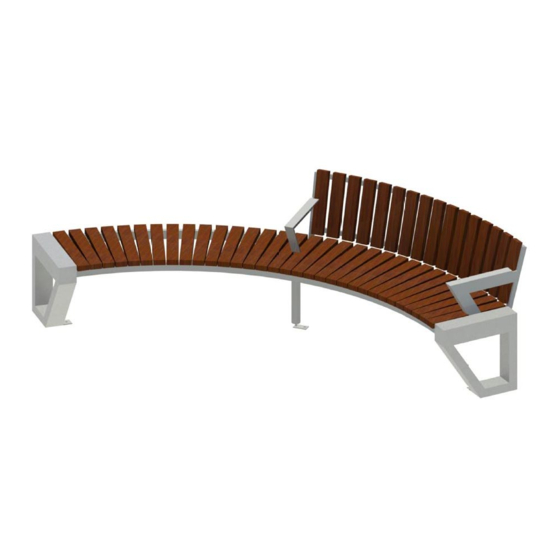

- Page 1 This guide relates to product: Product MCODE Arc Seat ARC-S Version 1 @ 01.07.20 MDP-15...
- Page 2 Street Furniture Australia. Understanding Arc Range This guide refers to Arc Seat. The Arc range offers several seating configurations that may require assembly on site. Before beginning installation please read through this guide thoroughly. Product options include: Important to note: •...
- Page 3 Connector installation instructions A. HOW TO CONNECT ARC SEAT SECTIONS If the configuration is over 2500mm long, the Arc Seat will come in Section 1 multiple sections. Each of the sections needs to be connected using 4x M6 bolts (included) Fig. 1.
- Page 4 Fig. 2: Sub-surface Fixed Fig. 2 Fig. 3 Fig. 3: Plinth Mount © Street Furniture Australia Pty Limited ABN 46 070 910 100 Australia 1800 027 799 Email info@streetfurniture.com United States +1 415 365 7186 N6 391 Park Road, Regents Park streetfurniture.com...
