Summary of Contents for Willfine 2.8C
- Page 1 All manuals and user guides at all-guides.com USER’S MANUAL Scouting Trail Camera...
-
Page 2: Table Of Contents
All manuals and user guides at all-guides.com Contents Whole View and Details of Camera..................- 1 - Front View of Camera......................- 1 - Camera Screen Display (Test Mode Main Interface).............. - 2 - Camera Menu List Introduction.....................- 3 - Quick Start..........................- 4 - Power On Camera........................ -
Page 3: Whole View And Details Of Camera

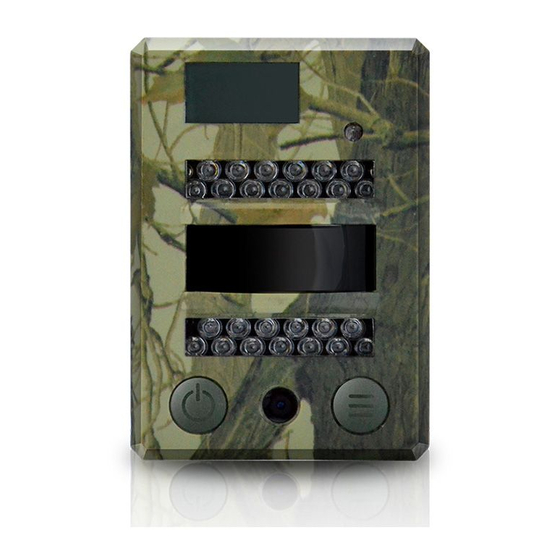

All manuals and user guides at all-guides.com 1. Whole View and Details of Camera Front View of Camera Light Sensor LCD Screen day/night Indicator Light 13 IR LEDs 13 IR LEDs PIR Sensor Lens Power/Navigation Button Menu/OK Button USB Port/ DC in SIM Card Slot Invalid Currently MicroSD Card Slot... -
Page 4: Camera Screen Display (Test Mode Main Interface)
All manuals and user guides at all-guides.com Camera Screen Display (Test Mode Main Interface) Photo Mode Interface Photographing hour/min/sec Photo Resolution Multi Shot Number 0001: recorded file number of photos & video clips 9998: estimated available file number based on left memory space in memory card Video Recording Video Mode Interface Video FPS... -
Page 5: Camera Menu List Introduction
All manuals and user guides at all-guides.com 2. Camera Menu List Introduction 1) First Navigation Menu Camera ID Back to Photo Video Photo+Video Settings Delete Previous Page 2) Second Navigation Menu: Settings ： Photo Video Timer Time Lapse Delay Stamp SD Cycle Camera Sound Back to... -
Page 6: Quick Start
All manuals and user guides at all-guides.com 3. Quick Start 1. Open back cover to insert MicroSD Card and batteries; Power On Camera 2. Press and hold Power/Navigation button for 3 sec; camera will enter PIR Auto Working mode after indicator flashes 5 times; 3. -
Page 7: Camera Operation Flow Chart
All manuals and user guides at all-guides.com Camera Operation Flow Chart Press and hold Power / Navigation button PIR Auto 3 sec; camera will enter PIR Auto Working mode Working Mode after indicator flashes 5 times; ON/OFF Camera In PIR Auto Working Mode, press Menu / OK (PIR Auto, TEST, OFF) TEST Mode... -
Page 8: Detail Setups
All manuals and user guides at all-guides.com 4. Detail Setups Camera Modes (Default Settings) Camera ID Photo Video VGA (640*480) Photo+Video Settings Delete Back to Previous Page If wanted setting icon is not showing on camera LCD screen, press repeatedly until it appears. -
Page 9: Photo Settings (Default Settings)
All manuals and user guides at all-guides.com of interface b. Start Recording Press and hold button for 3 seconds to return back to TEST Mode main interface; then press to take a video clip; press again to stop recording. a. Set up Press to enter Photo + Video mode;... -
Page 10: Video Settings(Default Settings)
All manuals and user guides at all-guides.com setting. (8MP/5MP/2MP: 3264x2448, 2560x1920, 1920x1080) Set up Press to enter configuration page, press choose desired Photo Burst number; press Multi-shot confirm setting. (Support 1~7 photos per burst/ trigger.) Video Settings(Default Settings) Video Size Video Length Video Frame 30FPS... -
Page 11: Camera Settings (Default Settings)
All manuals and user guides at all-guides.com Set up Press to enter configuration page, press to choose to turn ON/ OFF audio recording in video; press to confirm setting. Audio Recording Select “ON”, audio available in video clips. Camera Settings (Default Settings) Timer Time Lapse Delay... - Page 12 All manuals and user guides at all-guides.com a. Set up 1) Press to enter configuration page, press choose ON; press again to set Time Lapse; 2) Press to choose wanted number, press confirm and move to next number; Time Lapse 3) Press again after all numbers are selected to Exit.
-
Page 13: Software Upgrade
All manuals and user guides at all-guides.com temperature; 4) easier to trigger camera to record. In high temperature environment, body heat of subjects and environment temperature is hard to tell by camera, suggest to High. a. Set up 1) Press to enter configuration page;... -
Page 14: Usb Connection
All manuals and user guides at all-guides.com 8. Upgrade succeeds when red indicator led is off; 9. Plug out batteries/or power cable; 10. Insert batteries/ or power cable; turn on camera. Done. Note: Don’t cut off power supply during software upgrade; otherwise, camera will not be able to be turned on again unless software upgrade via PC. -
Page 15: Microsd Card Selection & Battery Life Test Report
All manuals and user guides at all-guides.com 5. MicroSD Card Selection & Battery Life Test Report MicroSD Card Selection A memory card is required to operate the camera. When the camera is "ON" and no memory card is inserted, screen displays "No SD Card". Micro SD Card slot of camera supports up 32 GB memory card. -
Page 16: Specification
All manuals and user guides at all-guides.com Model 2.8C Recording Video Format .avi 720P (1280*720) Video Resolution D1 (640*480) CIF (320*240) Video Frame Rate 15 / 30 FPS; programmable Video Length 5-60sec. programmable Still Image Format JPEG 2MP (1920x1080) Still Image Resolution... - Page 17 All manuals and user guides at all-guides.com Auto Power Off Enter PIR Auto Mode in 1min without any operations Interface USB; Micro SD card slot Micro SD Card, up to 32G Memory Type and Size Display 1.0 inch B/W Screen Language English Sensor Type...
-
Page 18: Warranty
All manuals and user guides at all-guides.com 7. Warranty With great pride and full confidence in our products, we always keep our words which are given to our customers as specified warranty terms and service below. Based on a strict QC system, we initially offer all our customers one year long time limited warranty, come along with selectable chargeable...
