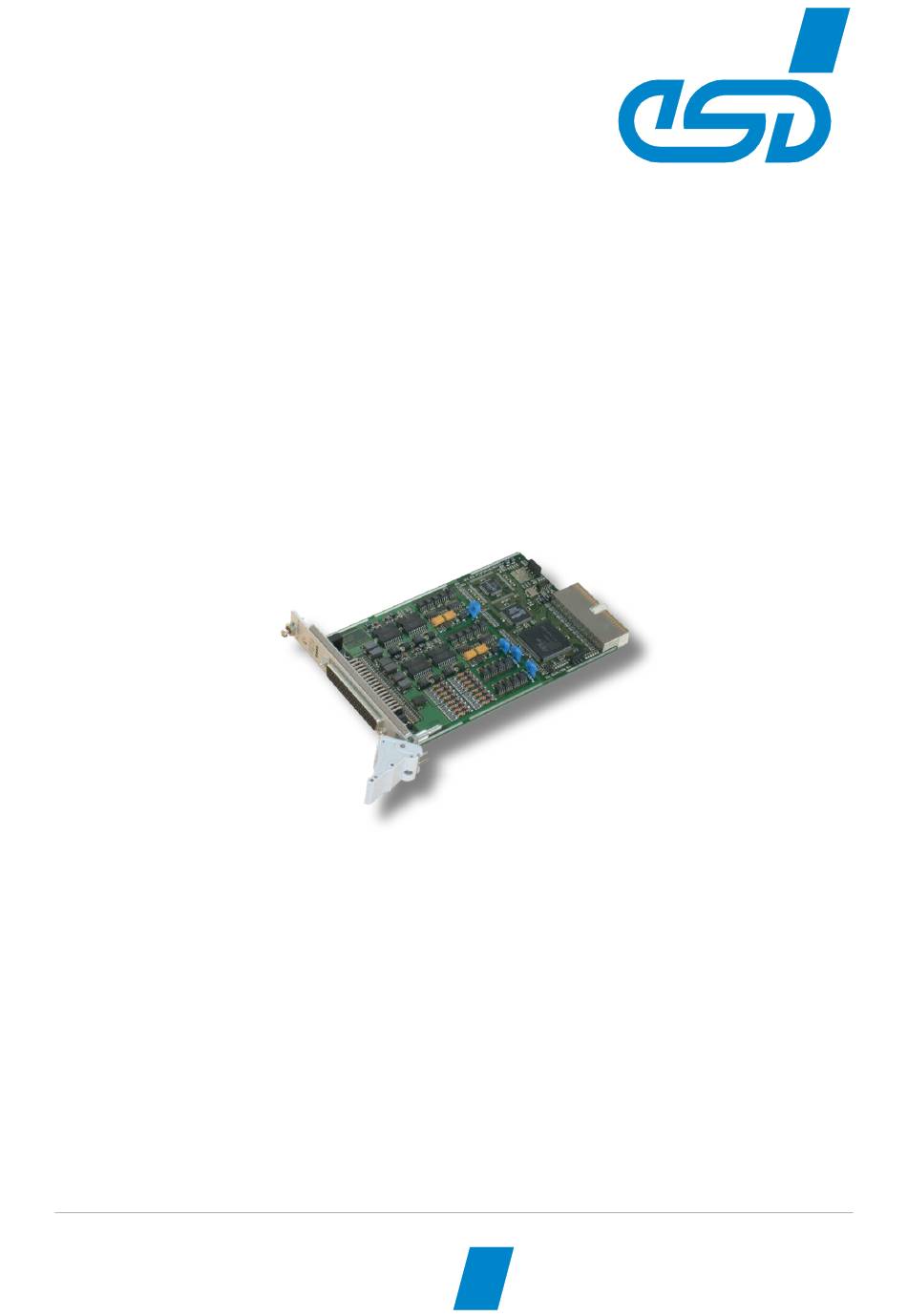

CPCI-DIO1616
®
CompactPCI
Digital I/O-Board
Hardware Manual
to Product I.2309.02
CPCI-DIO1616
Hardware Manual • Doc. No.: I.2309.21 / Rev. 1.6
Page 1 of 23
esd electronic system design gmbh
Vahrenwalder Str. 207 • 30165 Hannover • Germany
http://www.esd.eu
Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ESD CompactPCI CPCI-DIO1616
Summary of Contents for ESD CompactPCI CPCI-DIO1616
- Page 1 CPCI-DIO1616 Hardware Manual • Doc. No.: I.2309.21 / Rev. 1.6 Page 1 of 23 esd electronic system design gmbh Vahrenwalder Str. 207 • 30165 Hannover • Germany http://www.esd.eu Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68...
- Page 2 The information in this document has been carefully checked and is believed to be entirely reliable. esd makes no warranty of any kind with regard to the material in this document, and assumes no responsibility for any errors that may appear in this document. In particular descriptions and technical data specified in this document may not be constituted to be guaranteed product features in any legal sense.
- Page 3 Document file: I:\Texte\Doku\MANUALS\CPCI\DIO1616\Englisch\CPCI-DIO1616_Hardware-Manual_en_16.odt Date of print: 2016-02-24 Document type DOC0800 number: Hardware version: CPCI-DIO1616 CF Rev. 1.0 Document History The changes in the document listed below affect changes in the hardware as well as changes in the description of the facts, only. Rev.
- Page 4 Classification of Warning Messages and Safety Instructions This manual contains noticeable descriptions, warning messages and safety instructions, which you must follow to avoid personal injuries or death and property damage. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages and instructions that follow this symbol to avoid possible injury or death.
-
Page 5: Safety Instructions
The intended use of the CPCI-DIO1616 is the operation as CompactPCI® Digital I/O-Board. The guarantee given by esd does not cover damages which result from improper use, usage not in accordance with regulations or disregard of safety instructions and warnings. - Page 6 Service Note The CPCI-DIO1616 does not contain any parts that require maintenance by the user. The CPCI- DIO1616 does not require any manual configuration of the hardware. Unauthorized intervention in the device voids warranty claims. Disposal Devices which have become defective in the long run have to be disposed in an appropriate way or have to be returned to the manufacturer for proper disposal.
-
Page 7: Table Of Contents
Table of contents Safety Instructions........................... 5 1. Overview............................8 Description of CPCI-DIO1616....................8 PCB View with Connectors....................9 Front Panel View and Description of the LEDS..............10 Hardware Installation........................11 Technical Data..........................12 General Technical Data......................12 CompactPCI Interface......................12 Digital Inputs........................13 Digital Outputs........................ -
Page 8: Overview
Overview 1. Overview 1.1 Description of CPCI-DIO1616 16 Digital Inputs 24V 50-pole DSUB Electrical Isolation Connector Female 24V- Input Circuit 16 Digital Outputs 24V PCI-Bridge Control Electrical Isolation PCI 9030 Logic Error 24 V EEPROM 4 Channel CompactPCI Output Driver L6376 Connector Figure 1: Block circuit diagram... -
Page 9: Pcb View With Connectors
Overview 1.2 PCB View with Connectors Figure 2: PCB top view NOTICE Read chapter “Hardware Installation” on page 11, before you start with the installation of the hardware! See also page 14 for signal assignment of the connectors. CPCI-DIO1616 Hardware Manual • Doc. No.: I.2309.21 / Rev. 1.6 Page 9 of 23... -
Page 10: Front Panel View And Description Of The Leds
Overview 1.3 Front Panel View and Description of the LEDS Colour Status Meaning CPCI-DIO16/16 User-LED-bit = ‘1’ (User- green User-LED-bit = ‘0’ access to CPCI-DIO1616-board green (Active) no access to CPCI-DIO1616-board error of digital outputs (excess current, excess temperature or power supply too low) (Error) no error CPCI-DIO1616-board triggers an interrupt... -
Page 11: Hardware Installation
Hardware Installation 2. Hardware Installation NOTICE Read the safety instructions at the beginning of this document carefully, before you start with the hardware installation! Danger Hazardous Voltage - Risk of electric shock due to unintentional contact with uninsulated live parts with high voltages inside of the system into which the CPCI- DIO1616 is to be integrated. -
Page 12: Technical Data
Technical Data 3. Technical Data 3.1 General Technical Data Power supply via CompactPCI bus voltage nominal voltage: 5 V ± 5%, 3.3 V± 5% Current 5 V supply voltage: = ca. 90mA consumption 3.3 V supply voltage: I = ca. 350 mA 3.3V X100 (132-pole post connector) - CompactPCI-board connector... -
Page 13: Digital Inputs
Technical Data 3.3 Digital Inputs Number of digital inputs Input voltage -20 V ≤ U ≤ +33 V Switching threshold ‘0’: U < 9 V ‘1’: U > 16.5 V Permissible at pulse duty ratio 1:1 input frequency = 60 kHz Interrupts IRQ at rising or falling edge of an input, individually configurable Electrical isolation... -
Page 14: Description Of The Units
Description of the Units 4. Description of the Units 4.1 Input and Output Circuits 4.1.1 Input Circuit X800 50-pol. DSUB HCPL-0631 ZMM11 Ferrit Pin 18 220pF LL4148 Ferrit XIGND0 Pin 21+37 Figure 4: Input circuit (example IN0) 4.1.2 Output Circuit X800 L6376 50-pol. -
Page 15: Register
Description of the Units 4.2 Register 4.2.1 Addressing Vendor-ID: 0x10B5 Device-ID: 0x9030 Sub-Vendor-ID: 0x12FE Sub-System-ID: 0x108 (hardware version with PLDs) 0x118 (hardware version with PLDs) 0x109 (hardware version with FPGA) 0x119 (hardware version with FPGA) 4.2.2 Register Assignment The CPCI-DIO1616 assigns four PCI-address spaces: Address Assignment space... -
Page 16: Output Register
Description of the Units 4.2.2.1 Output Register Relative address: Access: read/write Default after RESET: 0x0000 Function: setting the digital outputs and the User-LED Assignment Level assignment not evaluated not evaluated ‘0’ -> LED off User-LED-Bit ‘1’ -> LED on OUT15 ‘0’... -
Page 17: Irq-Status Register
Description of the Units 4.2.2.3 IRQ-Status Register Relative address: Access: read only Function: reading the interrupt source after an interrupt has been triggered Assignment Level assignment not evaluated not evaluated IRQ_Error_12-15 IRQ_Error_8-11 ‘0’ -> no IRQ IRQ_Error_4-7 ‘1’ -> IRQ has been triggered IRQ_Error_0-3 IRQ15 ‘0’... -
Page 18: Irq-Enable-Register_Lh (Rising Edge)
Description of the Units 4.2.2.5 IRQ-Enable-Register_LH (rising edge) Relative address: Access: read/write Function: selecting the edge of an input signal at which an interrupt is to be triggered. An interrupt can only be triggered at rising edges. Assignment Level assignment not evaluated not evaluated Edge_Error_12-15... -
Page 19: Connector Assignment
Connector Assignment 5. Connector Assignment 5.1 Assignment of I/O-Connector X800 Signal Signal Signal XIGND0 XIGND0 IN10 IN11 IN12 IN13 IN14 IN15 XIGND1 XIGND1 VSSO0 VSSO0 OUT0 OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 GNDO0 GNDO0 VSSO2 VSSO2 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13... -
Page 20: Assignment Of A Phoenix-Transition Module
Connector Assignment 5.2 Assignment of a PHOENIX-Transition Module The pin assignment of the 50-pole DSUB-connector has been chosen in such a way that you have a clear terminal assignment when connecting a PHOENIX-transition module via flat-ribbon cable. Figure 6: PHOENIX-transition module UM45-FLK50/LA/PLC The following table shows the assignments of transition modules UM45-FLK50/PLC and UM45- FLK50/LA/PLC (like UM45-FLK50/PLC but with LEDs): Signal... -
Page 21: Signal Description Of I/O-Connector X800 And Transition Module
Connector Assignment 5.3 Signal Description of I/O-Connector X800 and Transition Module IN0...IN15 digital inputs XIGND0, XIGND1 reference potential of digital inputs OUT0...OUT15 digital outputs VSS0 power supply of drivers of digital outputs OUT0...OUT7 VSS2, VSS3 power supply of drivers of digital outputs OUT8...OUT15 and optocouplers of output circuits of all channels GNDO0, GNDO2 reference potential of digital outputs... -
Page 22: Declaration Of Conformity
Declaration of Conformity 6. Declaration of Conformity Page 22 of 23 Hardware Manual • Doc. No.: I.2309.21 / Rev. 1.6 CPCI-DIO1616... -
Page 23: Order Information
Table 14: Order information PDF Manuals Manuals are available in English and usually in German as well. For availability of English manuals see table below. Please download the manuals as PDF documents from our esd website www.esd.eu for free. Manuals Order No.
