- Page 1 Operating Manual Measuring System X-302/Wireless for Tie Bar Strain Measurement...
-
Page 2: Table Of Contents
Installation and Operation ......................4 Help! ............................9 Safety instructions ........................10 Disposal ............................ 12 Technical Data ......................... 12 Order information ........................13 X-Sensors AG Landenbergerstrasse 13 CH-8253 Diessenhofen info@x-sensors.com +41 (0) 52 543 19 60 www.x-sensors.com Version 4 (January 2021) EN... -
Page 3: Introduction And Description
Introduction and Description The X-102 Sensors measure the strain of tie bars in an injection- or pressure-molding ma- chine, such that the relationship between position and pressure can be captured. The strain, measured in units of microstrain, is directly proportional to the force and may easily be calculated: F = µε... -
Page 4: Installation And Operation
Installation and Operation In order to compensate properly for bending, the sensors are to be mounted at 180° on the tie bar, meaning that they are mounted precisely opposite each other. Preparation The Sensors must be spaced at least two tie bar diameters away from the tie bar •... - Page 5 The X-102 sensors are equipped with very strong magnets. Do not let the sensors get close to each other because they will immediately snap together and can only be separated using a great deal of force. Mounting a single sensor. Mounting two sensors and connect the The cable is secured to the T-piece.
- Page 6 During mounting the sensor must be Bad example – the sensor is sitting at an aligned to the tie bar angle to the tie bar. When measuring with two sensors on a sin- Bad example – the sensors are not at gle tie bar they must also be aligned with 180°...
- Page 7 When setting up the sensor, both little wheels To be sure the measuring blade is must be in contact with the surface of the tie straight before making a measurement, bar. you should raise the blade slightly and re- (Tip: If the hardened wheels become blunt, position it.
- Page 8 Connect USB power using the USB cable, for charge the device. View of Display unit X-318 On power-up the Display by pressing the button for min. 3 seconds. • Start the browser and connect to www.x-sensors.iot/ for measurement. • Version 4 (January 2021) EN...
-
Page 9: Help
Help! What do I do when the zero reading is unstable ? • Because the measurement is very sensitive to shock and vibration, you can improve it as follows: 1. Reduce the closing speed, making the closure softer. 2. Clean the tie bar surface better at the measuring location, using a wire brush if necessary. -
Page 10: Safety Instructions

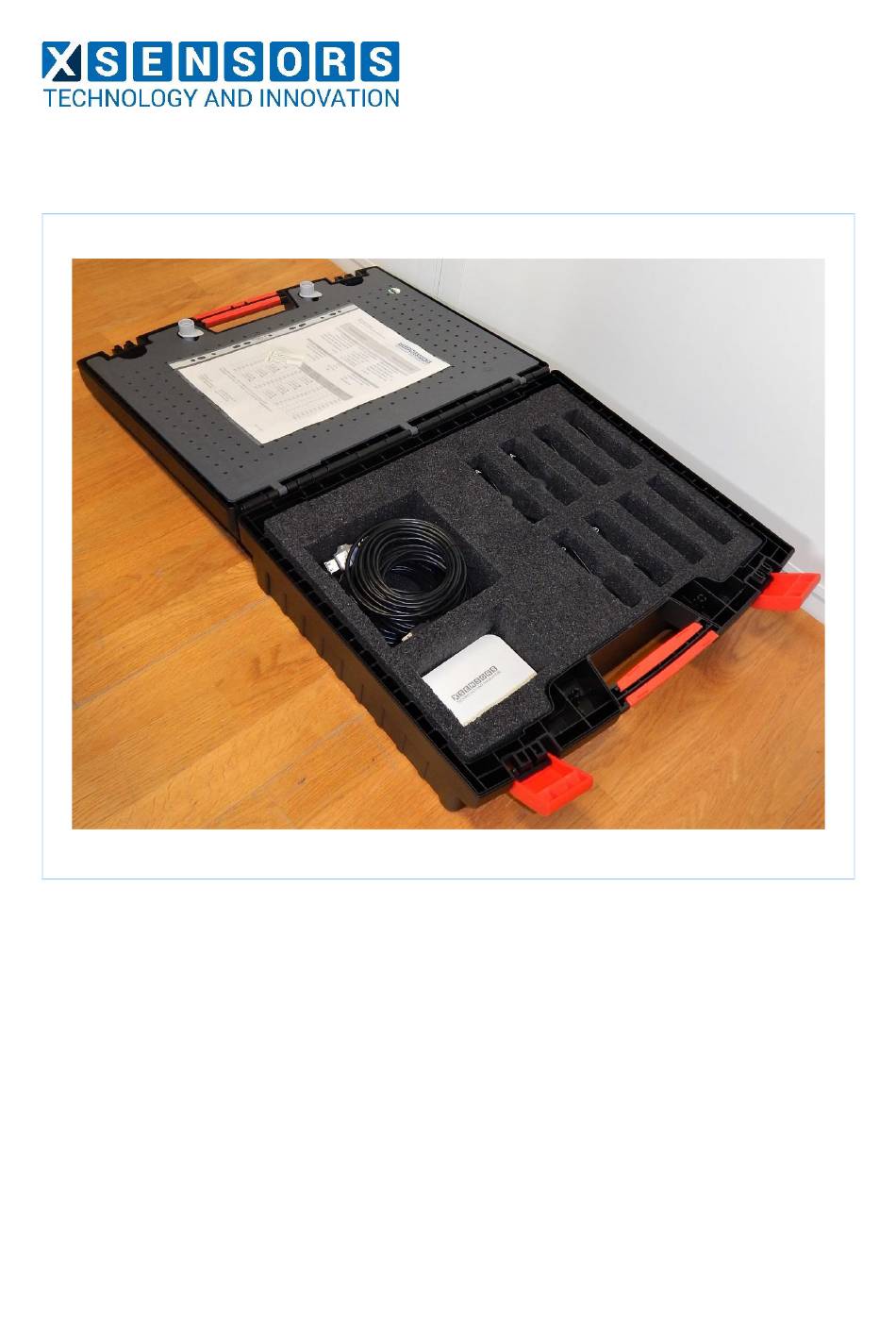

Safety instructions It is assumed that installation, calibration, and operation of the equipment will be performed by suitably qualified personnel. Read through this document carefully and make yourself familiar with the operation of the product before starting to use it. Keep this document on hand, so it can be referred to as needed. - Page 11 A transport case with a custom foam insert is provided for transport and storage. The sen- sors, junction boxes, cables and display unit should be stored and transported in this case to avoid possible damage or loss. View contents of measuring case X-302-04/Wireless View contents of measuring case X-302-08/Wireless Version 4 (January 2021) EN...
-
Page 12: Disposal
Operating temperature range +10 ... +40 °C Storage and transport temperature range -20 … +70 °C Dimensions of the transport case 430 x 310 x 130 mm³ (X-302-04/Wireless) 500 x 400 x 180 mm³ (X-302-08/Wireless) Material transport case Polypropylene Weight transport case approx. -
Page 13: Order Information
X-102/USB Extensometer with magnetic foot Display unit 4 Channel X-318/IoT Universal Display unit for Connection up to 4 Sensors Measuring System for Tie X-302-04/ Measuring case consisting of Bar Strain Measurement Wireless 4x Sensor X-102 with 4 Sensors 1x Display unit X-318 incl. USB charger/cable...
