TERMA Alex Installation Manual

Installation guide Alex 1140x500mm - SX
Please read the instructions in full before starting to fit your radiator.
• Please check that all parts listed are present before starting installa-
tion.
• Valves are not provided, please make sure that you have them
before you start. This product requires standard 1/2" radiator valves.
• Before drilling holes for the brackets please check that there are no
hidden wires or pipes.
• The plugs supplied are for hard walls masonry only. Please make
sure you are using the correct plug for your wall.
• Terma radiators are designed for closed heating systems.
• The radiator should be fitted at least 100 mm from the floor to
maximise heat efficiency.
• Noting the distances between bracket centres, mark out the
position of the brackets on the wall.
• Drill holes to approximately 80 mm depth using a 10 mm drill bit
and insert rawl plugs (1). Using connecting screw with a washer (2)
attach mounting bracket-1 (3).
• Using bracket to collector fixing screw (5) attach mounting
bracket-2 (6) to radiator.
• Guide all mounting brackets-2 (6) into mounting brackets-1 (3) and
fix with connecting screws (4)
• Connect the water flow using appropriate 1/2" BSP valves. Follow
valves manufacture guidelines for correct installatiion.
• Fill the radiator and purge any trapped air via the bleed valve at the
top of the radiator.
• Wipe your radiator down using a clean damp cloth.
Never use scourers or abrasives.
For all installation and warranty enquiries please
contact Crimson Bear Customer Support on
01535 636256
All manuals and user guides at all-guides.com
SX
470
500
132 ÷ 140 470
30

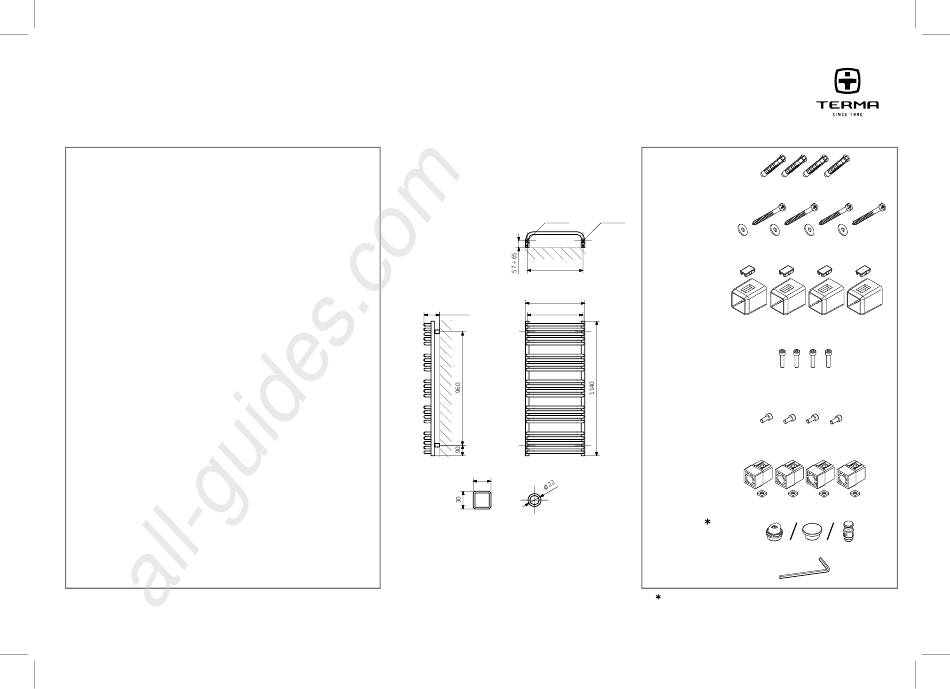

Fixing kit content
rawl plug (1)
wall fixing (2)
G1/2" G1/2"
screw +
washer
mounting (3)
bracket-1
bracket (4)
connecting
screw
bracket to (5)
collector
fixing screw
mounting (6)
bracket-2
air vent
allen key
Refers to water and dual fuel version
