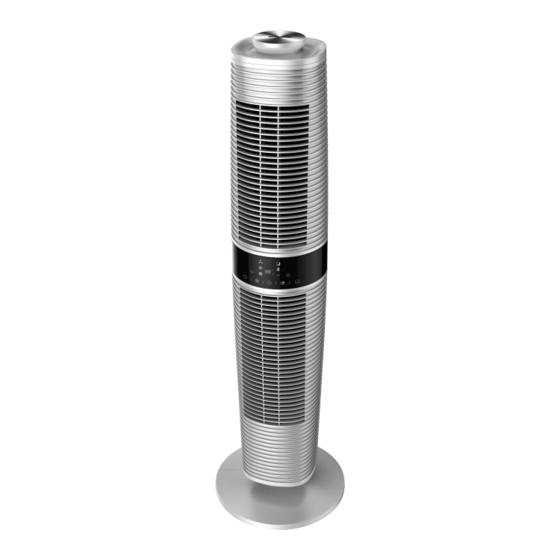

TOWER FAN 直立扇
使用說明書 OPERATION MANUAL
澳門慕拉士大馬路193-199號南嶺工業大廈5樓I座
Avenida de Venceslau de Morais, No. 193-199, 5 andar-I, Edf. Industrial Nam Leng, Macau
電話 Tel: (853) 2836 2928
傳真 Fax: (853) 2833 6405
RTF-38L
使用前請先詳細閱讀本說明書,並保存以便日後參考。
Please read this user manual before using the product and retain it for your future reference.
8
3

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTF-38L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rasonic RTF-38L

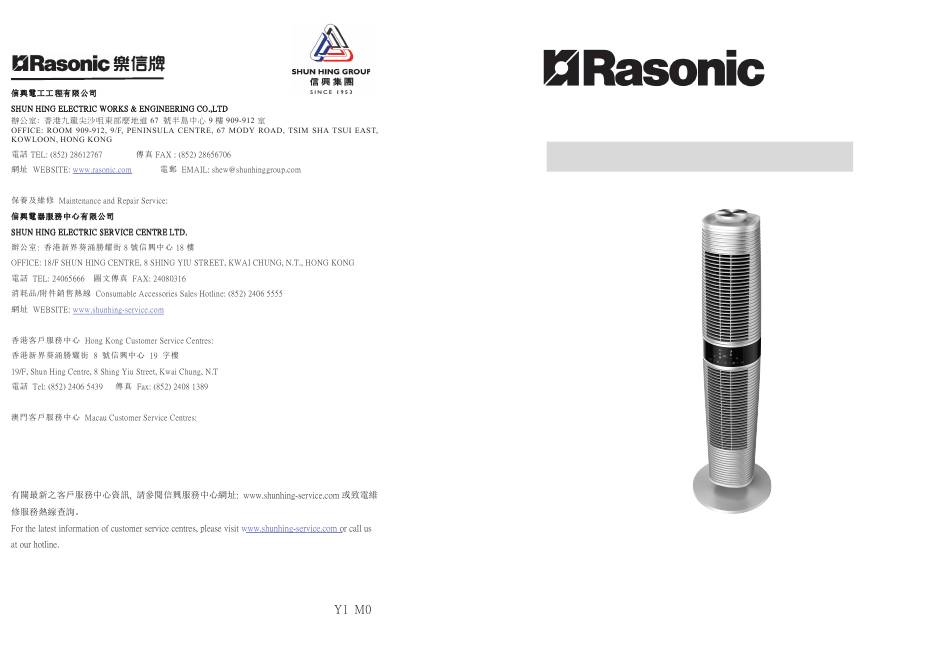

  • Page 1 Avenida de Venceslau de Morais, No. 193-199, 5 andar-I, Edf. Industrial Nam Leng, Macau 電話 Tel: (853) 2836 2928 傳真 Fax: (853) 2833 6405 RTF-38L 使用前請先詳細閱讀本說明書,並保存以便日後參考。 Please read this user manual before using the product and retain it for your future reference.
  • Page 2  為了安全起見,當人離開產品時,必須關機,以免發生意外事件。 安全注意事項 (請務必詳細閱讀及遵守安全指導)  避免將產品出風口長時間、直接向幼兒吹風,否則會導致幼兒生病或影 請務必嚴格遵守以下說明之注意事項以防止對使用者或其他人造成傷害或財 物損失。 響健康的可能。  用戶必須使用有安全認證的合格插座,否則,可能會引起火災的危險。  本設備是不打算供與(包括兒童)身體,感官或智力有障礙,或缺乏經驗  此設備可供 8 歲以上兒童使用,對於肢體、感官、心智殘缺或缺乏經驗 和知識人士使用,除非他們是在負責他們安全的人員監督或有關使用該 和知識的人,如果他們已獲得監督和安全使用該設備的指導,並且了解 設備的指示下使用。  兒童應當受到監督以確保他們不會玩耍器具, 請勿讓兒童爬上直立扇。 其中的危害,也可使用本設備。兒童不應將本產品用於玩耍。清潔和保  產品清洗或檢修前必須先切斷電源並拔掉電源線插頭。 養,不得讓兒童在沒有監督的情況下實施。  拔掉電源線插頭時,請勿拉扯電線。  產品外表清洗時,應用濕布(或加點洗潔精)抹擦,不要用有腐蝕性的洗  確保電源插頭完全插入插座,否則會引致觸電或插頭過熱而造成火災。 滌劑或溶劑之類清潔,嚴禁用水沖(淋)洗。  要定期清除電源插頭及插座上之灰塵,否則天氣潮濕時會容易引致絕緣  不可將本機進、 出風口貼近牆壁、 窗簾等物品,否則會阻塞氣流,影響使用 不良而導致火災。...
  • Page 3  遙控器 功能特點 1、 觸摸式按鍵; 2、 正常風、自然風、睡眠風及 ECO 節能模式; 3、 採用 AC 馬達,高、中、低三檔風速; 4、 整機自動擺頭,左右約 80º,上出風口 360°單獨手動調節擺頭角度; 電池蓋 5、 數碼管顯示 1H、2H、4H、8H 定時關機功能,及溫度顯示; 6、 LED 燈顯示開/關機、高中低檔、睡眠風、自然風、ECO 及擺頭;  操作面板 7、 遠距離紅外遙控功能。 各部件名稱 風速鍵 模式鍵  產品結構示意圖 開機/關機鍵 定時鍵 風向鍵  顯示面板 接收頭...
  • Page 4  遙控器操作面板 操作說明  各功能按鍵的使用方法 為輕觸式按鍵,輕觸操作面板按鍵位置,則可觸發相應的功能。初次通電蜂鳴器發 開機/關機鍵 出 Bi Bi 兩聲,進入待機狀態,除開/關機鍵外,按其他鍵均無效。 1)開/關機鍵 風速鍵 模式鍵 在待機狀態下按此鍵,風扇進入正常風模式,低速風啟動運行,此時為無定時、 無左右擺頭設定,而相應 LED 燈亮起。待機狀態下,第一次開機上電,在沒有斷 定時鍵 風向鍵 電,並且不是第一次開機的情況下,開機後保留關機前的工作狀態(定時和模式 風除外) 。工作狀態下,按此鍵發出長 Bi 音,整機關閉進入待機狀態。 2)風速鍵 開機後按此鍵會發出確認音 Bi 一聲,可對風速進行轉換設定,順序為低→中→高→ 低……,如此迴圈,風速指示燈隨風速變化亮起。 3)定時鍵 產品安裝 開機後,本機預設狀態為無定時,定時 LED 燈不顯示,按此鍵後可設置自動關機  安裝方法 定時設定,設定方式為 1h→2h→4h→8h→無定時→1h……,如此迴圈,此過程中 1、 打開包裝將產品取出,檢查說明書、遙控器、底座等配件是否齊全。 定時...
  • Page 5 睡眠風:風扇會按電腦預設的風速運作,分為低、中、高睡眠風三種模式。 規格 高睡眠風:30 分高自然風—30 分中自然風—低自然風運行(保持) 產品型號 RTF-38L 中睡眠風:30 分中自然風—低自然風運行(保持) 額定電壓 220-240V 伏特~ 低睡眠風:低自然風運行 50 赫茲 額定頻率 ECO模式:檢測到室溫低於25度,低檔運行,25-29度中檔運行,29度以上高檔運行。 45 瓦 額定功率 附帶關機記憶功能 (非斷電記憶) ,即重新開機後按關機前的功能工作 (不 280 x 280 x 968毫米 外型尺寸(長×寬×高) 包括定時功能和模式功能)。 淨重 4.5公斤 注 : 在任何指示燈點亮 1 分鐘內 , 如果此時無按鍵動作, 指示燈則變暗(原亮度 33%),...
  • Page 6 ● Do not cover the fan in order to avoid overheating. Safety precautions (Be sure to read and follow these safety directions) Be sure to observe the following safety precautions in order to ● Please do not put any object on the fan body. avoid possible injury to yourself or others and damage to your ●...
  • Page 7 capabilities, or lack of experience and knowledge, unless they Features have been given supervision or instruction concerning use of 1、 Touch control buttons. the appliance by a person responsible for their safety. 2、 Wind modes: NORMAL, NATURAL, SLEEPING, ECO. ● Children should be supervised to ensure that they do not play 3、...
  • Page 8 ● Remote control  Remote control operation panel ON/ OFF Battery Cover SPEED MODE Control panel  TIMER SWING SPEED MODE Assembly instruction ON/OFF TIMER SWING  Instruction  Display panel 1. Take out the fan from packing box and check if all accessories (operation manual, remote control and bases) are included.
  • Page 9 How to use be shown accordingly, except NORMAL mode. Four wind modes work as below:  Usage for control panel NORMAL mode: Operated in low, medium and high wind speed. Once connected to power and operated in standby mode, “BiBi” sound alerts will NATURAL mode: Operated in low, medium and high natural wind speed by come out.
  • Page 10 Free guarantee service will not be provided to the fan if: 1) it has been explicitly or Model RTF-38L implicitly modified, tampered with, altered or repaired in any way by persons other than technicians of the Company. Or 2) it has been damaged through misuse, Rated voltage 220-240V~...
