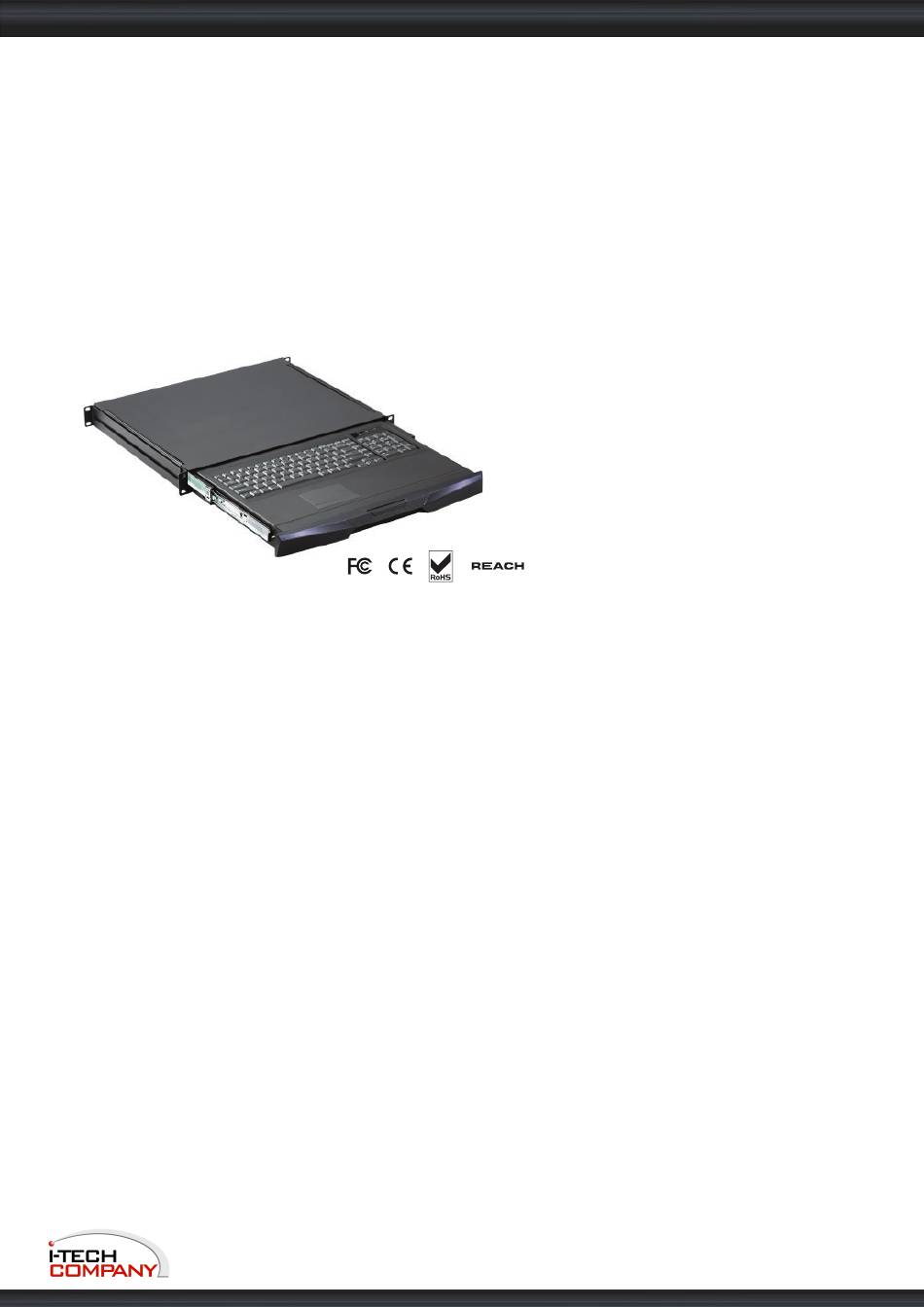

- Page 1 NK2e / NK2b 1U Short Depth Keyboard Drawer User Manual i-Tech Company LLC EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com Modified: 03-10-2022...
-
Page 2: Table Of Contents
Contents NK2e / NK2b < Part. 1 > Package Content Structure Diagram & Dimension Installation Connection < Part. 2 > Specifi cations Keyboard / Mouse Specifi cations Environmental Conditions... -
Page 3: Part 1 > Nk2E / Nk2B
If anything is missing, or damaged, contact the supplier immediately. NK2e / NK2b < Part 1 > < 1.1 > Package Content NK2e or NK2b unit X 1 - Pair of L-bracket with fastener screws X 1 < 1.2 > Structure Diagram Adjustable rear mounting L-bracket... - Page 4 NK2e / b < 1.2 > Dimension Front View Rear View Power KB / MS UNIT : mm Side View 1mm = 0.03937 inch Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 400 x 44 mm...
- Page 5 < 1.3 > Installation- How to install L-bracket Step ■ Install left & right rear L-brackets with two fasteners shown above. ■ Leave the fasteners slightly loose. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear L-bracket to a suitable length and tighten the fasteners.
-
Page 6: Connection
NK2e / b < 1.4 > Connection to USB Server Keyboard Drawer attached 2-in-1 K/B cable USB server < 1.4 > Connection to external KVM Keyboard Drawer attached 2-in-1 K/B cable USB console KVM Caution : The keyboard drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable. -
Page 7: Part. 2 > Specifi Cations
< Part 2 > Specifi cations < 2.1 > Standard Keyboard / Mouse Specifi cations G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time OS support Windows / Linux / Unix / Mac OS Supporting layouts... - Page 8 NK2e / b < 2.1 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboard Features Decrease display brightness Fast-forward Increase display brightness...
- Page 9 < 2.1 > SUN Keyboard / Mouse Options GS keyboard integrated with touchpad GS keyboard integrated with trackball Ca ps Scro ll Comp ose Ca ps Scro ll Comp ose GS keyboard integrated with touchpad / trackball ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■...
-
Page 10: Environmental Conditions
NK2e / b < 2.2 > Environmental Conditions Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration...
