XR4115
INSTALLATION/OWNER'S MANUAL
AM/FM/MP3/WMA Receiver with Detachable Face

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR4115 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dual Electronics Corporation XR4115

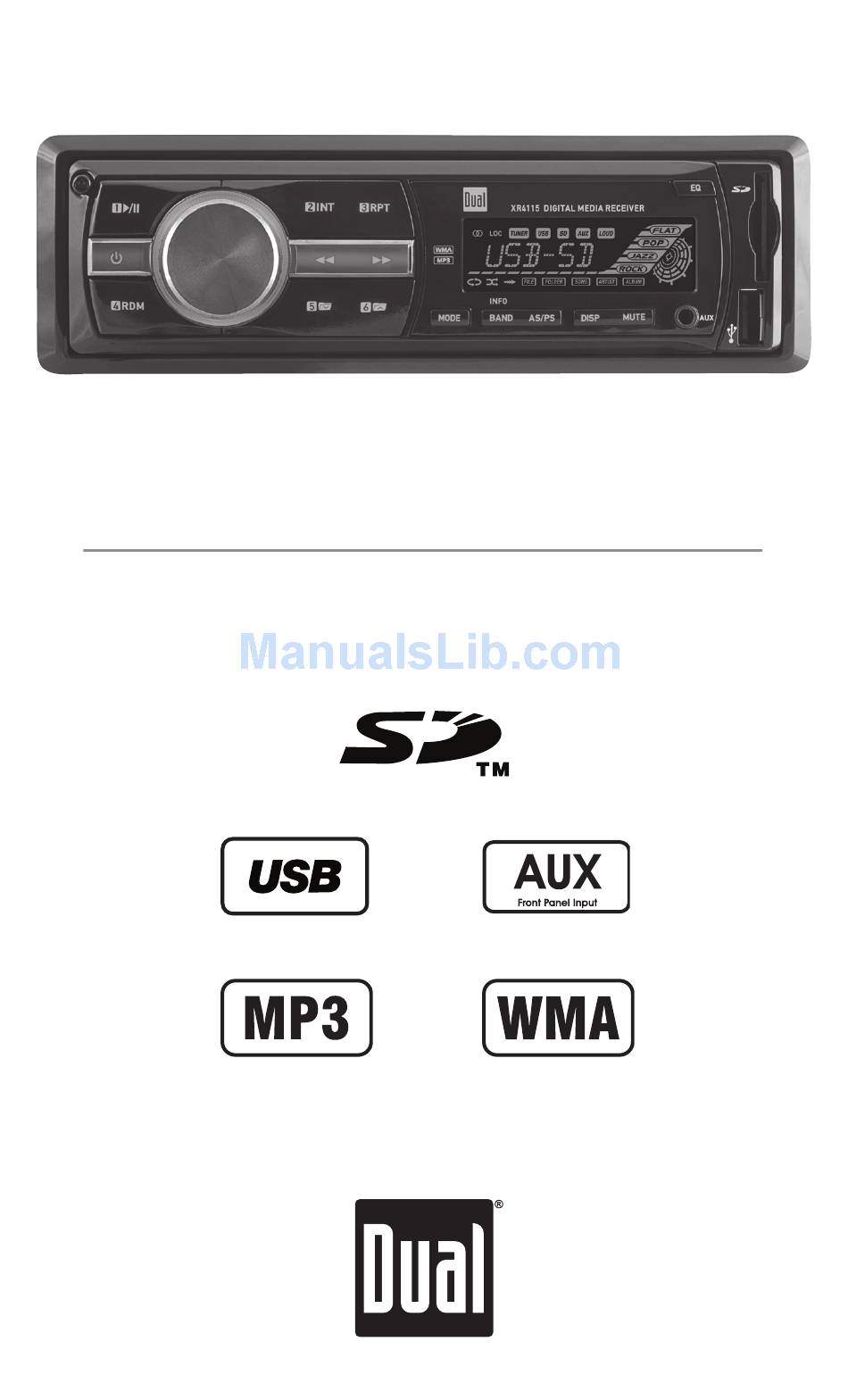

  • Page 1 XR4115 INSTALLATION/OWNER'S MANUAL AM/FM/MP3/WMA Receiver with Detachable Face...
  • Page 2 XR4115 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
  • Page 3: Wiring Diagram

    Left (White) Antenna Connector 10 AMP AGC Fuse FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XR4115 uses one 10 amp AGC fuse located in-line.
  • Page 4: Control Locations - Receiver

    XR4115 OPERATION Control Locations - Receiver Release Preset 1 / Play / Pause Power Volume Knob Preset 2 / Intro Tune / Track Down Preset 3 / Repeat Tune / Track Up SD Slot USB Port Auxiliary Input Mute Display AS / PS Band / Info...
  • Page 5: Control Locations - Remote

    Select Volume Down Tune / Track Up AS / PS Display Preset 3 / Repeat XR4115 OPERATION Preset 6 / Folder Up Mute Preset 4 / Random Preset 5 / Folder Down Preset 1 / Play / Pause Preset 2 / Intro...
  • Page 6: General Operation

    XR4115 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Power On/Off Press  or any other button to turn the unit on. Press again to turn the unit off.
  • Page 7 XR4115 OPERATION General Operation Press the volume knob to select between Bass, Treble, Audio / Menu Balance, Fader, Loudness, Distance and Stereo. BASS TREBLE BALANCE FADER LOUDNESS DISTANCE STEREO Press the volume knob until BAS appears. Bass Rotate the volume knob left/right to adjust. (-7 minimum / +7 maximum) Press the volume knob until TRE appears.
  • Page 8: Tuner Operation

    XR4115 OPERATION Tuner Operation Seek Tuning Manual Tuning Band Storing and Recalling    Station Presets Automatically Store    Stations Preset Scan Press TUNE or TUNE  seek the next strong station. Press TUNE or TUNE  radio frequency at a time. Press and hold to advance quickly. Press BAND to select between FM1, FM2, FM3 and AM1, AM2 bands.
  • Page 9 XR4115's USB port. To play MP3/WMA/WAV files from an SD card, insert an SD card into the XR4115's SD card slot with the label facing left. It will click into place when properly inserted. To remove the card, press in until it clicks, then pull to remove.
  • Page 10 XR4115 OPERATION SD Card / USB Operation Media Compatibility Playback Order Playback Capacity Device Compatibility Sampling Frequency Rates Transfer Bit Rates The following types of files are compatible: • MP3 audio • WMA audio • WAV audio The following types of files are not compatible: • WMA files that are protected by DRM (Digital Rights Management) •...
  • Page 11 Artist Icon  Album Icon  Folder Icon      Folder Access  Notes XR4115 OPERATION SD Card / USB Operation  When a file is accessed, the display will alternate between track number/elapsed time and available MP3/WMA information, including file name, song title, artist name, album name and folder number. This icon will illuminate when the file name is displayed.
  • Page 12: Limited One Year Warranty

    XR4115 OPERATION Limited One Year Warranty This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase.
  • Page 13: Troubleshooting

    One or more speaker wires touching each (but no sound) Yellow or red wire touching chassis ground Unit blows fuses Speaker wires touching chassis ground "SD ERR" or "USB ERR"  appears on display XR4115 WARRANTY Cause Black wire not connected Fuse blown Speaker wires not connected other or touching chassis ground Incorrect fuse rating...
  • Page 14: Specifications

    XR4115 OPERATION Specifications  FM Tuner Tuning range: Usable sensitivity: 50dB quieting sensitivity: Stereo separation @ 1kHz: Frequency response: AM Tuner Tuning range: Usable sensitivity: Frequency response: General Speaker output impedance: Line output voltage: Dimensions: Design and specifications subject to change without notice. Power Output: 18 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to noise ratio: 70dBA (reference: 1 watt into 4 ohms) 87.5MHz-107.9MHz...
  • Page 15: Fcc Compliance

    Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. XR4115 OPERATION FCC Compliance...
  • Page 16 Dual Electronics Corp. Toll Free: 1-866-382-5476 The SD logo is a trademark of the SD Card Association. Other trademarks and trade names are those of their respective owners. www.dualav.com ©2011 Dual Electronics Corp. All rights reserved. NSA0411-V01...
