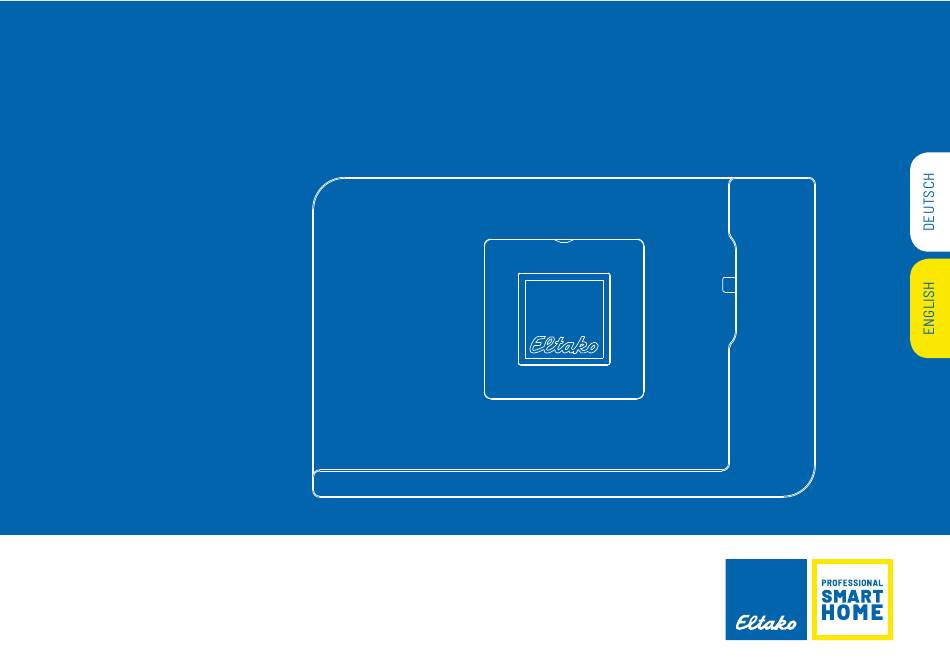

- Page 1 MANUAL OnWall...
-
Page 2: Package Content
Further information and the latest FAQs be found at: www.eltako.com Package content The scope of supply includes the Eltako OnWall, an 110-240 V AC to USB-A power supply unit, two WAGO® terminals and two 3x20 mm screws. A PoE to USB-A power supply unit is optionally available. -
Page 3: Installation
MANUAL OnWall Installation An electronics box must be used for installation. Page 13... - Page 4 MANUAL OnWall 1. Remove the mounting cover from the magnet bracket 2. Plug the OnWall‘ s USB ribbon cable into the USB-A socket on the power supply unit. Connecting 110-240 V AC Connect the connection cable to the power supply unit according to the color code using the WAGO terminals and lower it as far as possible into the electronics box.
- Page 5 MANUAL OnWall 3. Screw the OnWall onto the electronics box with two suitable screws. The supplied 3x20 mm screws can be used if necessary. Make sure that the USB ribbon cable is not kinked as far as possible. 4. Now put the mounting cover back on the OnWall.
-
Page 6: Inserting The Ipad
MANUAL OnWall Inserting the iPad: The OnWall has a sliding Lightning charging connector that can be moved by hand and thus adapted to the size of the iPad. The Lightning charging connector can also be replaced Click by an optionally available USB-C charging connector. - Page 7 MANUAL OnWall Technical Data OnWall Outside Dimensions 220 mm x 140 mm x 18 mm Power Supply 110-240 V AC, POE optional Function Description Store & charge iPad Operating Temperature 0 - 35°C or 32 - 95°F Operating Humidity 20% - 90%...
-
Page 8: Electrical Safety Information
MANUAL OnWall Electrical Safety Information Compliance is required with respect to voltage, frequency, and current requirements indicated on the manufacturer’ s label. Connection to a different power source than those specifi ed may result in improper operation, damage to the equipment or pose a fi re hazard if the limitations are not followed. -
Page 9: Rohs/Weee Compliance Statement
WEEE Directive. Declaration of Conformity Hereby the Eltako GmbH declares, that this Eltako GmbH device, is in compliance with the essential requirements and other relevant provisions of Directive 2014/35/EU & 2014/30/EU. - Page 10 OnWall Premium iPad OnWall Docking Station. Made out of high-quality aluminium. Eltako GmbH D-70736 Fellbach Technical Support English: +49 711 94350025 technical-support@eltako.de eltako.com Must be kept for later use! 02/2021 Subject to change without notice.
