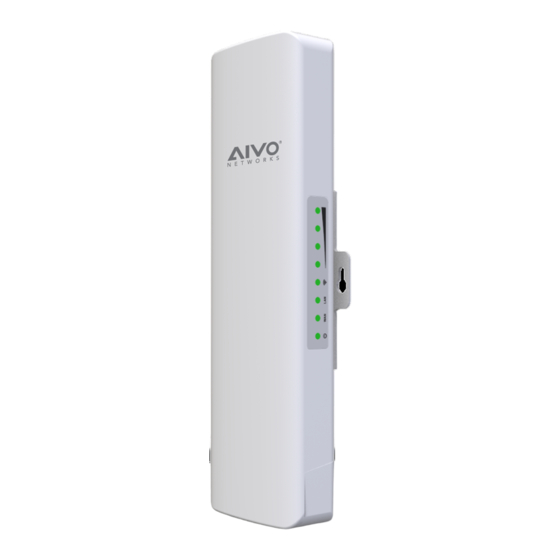

AIVO ANCP3005Q Bridge
Configuration Quick Guide
To configure a pair of ANCP3005Q
CPEs for a wireless bridge mode, you
will need to configure one of the
ANCP3005Q as a bridge AP and one
as a bridge Station->Client Site.
To begin this process, plug in one of
the PoE injector power supplies to an
electrical outlet and run a network
cable from the PoE port on it to the
WAN port on the CPE. After 2-3
minute of being powered, the
ANCP3005Q should now be ready for
configuration.
You can configure the device using
either a wireless or wired connection.
For wireless, you can use either a
mobile phone, tablet or laptop with
5.8GHz wireless and scan for an open

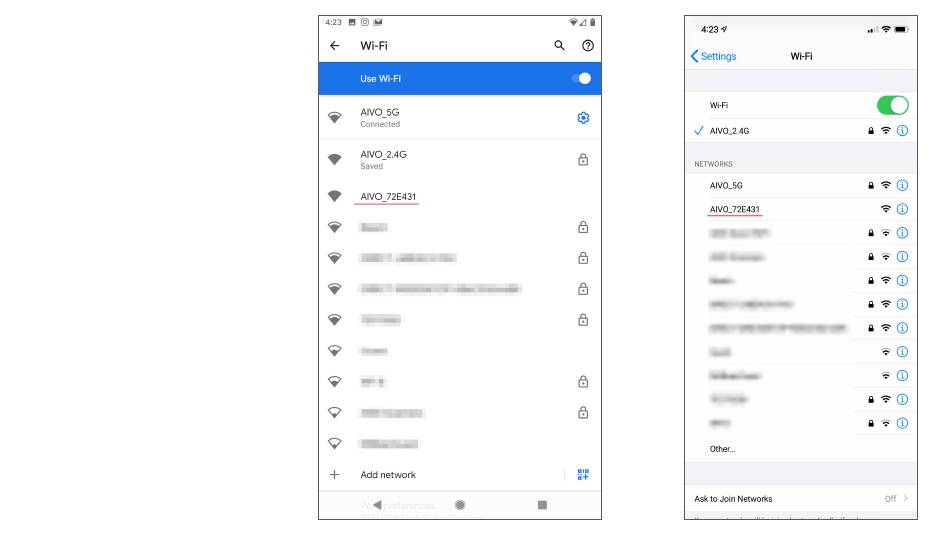

network named:
AIVO_XXXXX
Find this network and connect to it.
