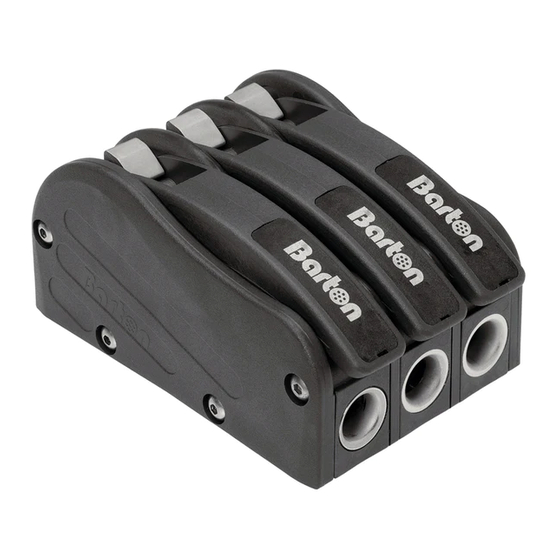

DO 550 Clutch Fitting Instructions and Maintenance manual

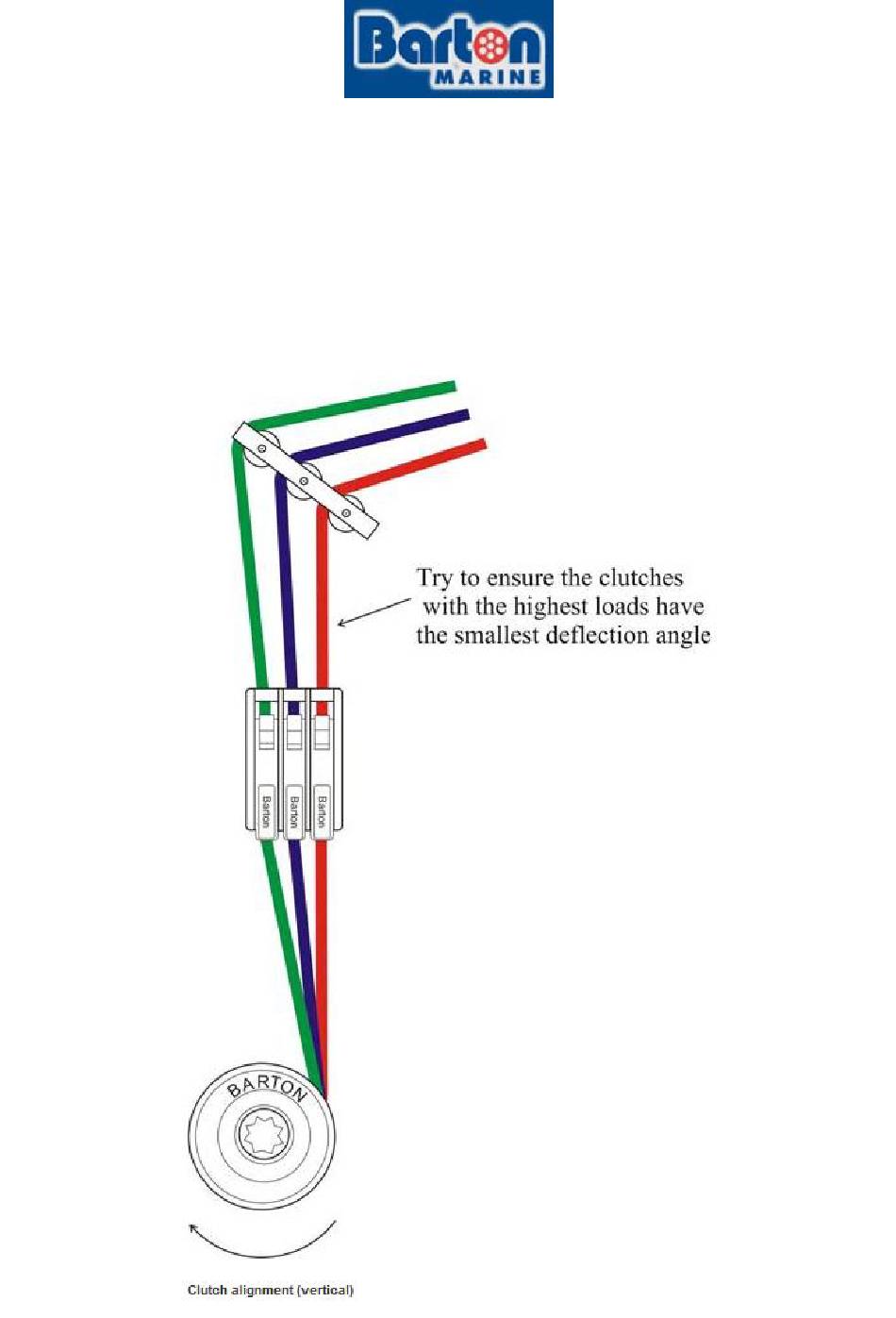

The clutch is designed to fit between the winch and the deck organiser. Keep the rope deflection angle as small as
possible. When installing multiple clutches try to ensure the clutches with the higher loads has the least deflection
angle.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DO 550 and is the answer not in the manual?

Questions and answers

Related Manuals for Barton DO 550

Summary of Contents for Barton DO 550

  • Page 1 DO 550 Clutch Fitting Instructions and Maintenance manual Clutch alignment (Vertical) The clutch is designed to fit between the winch and the deck organiser. Keep the rope deflection angle as small as possible. When installing multiple clutches try to ensure the clutches with the higher loads has the least deflection...
  • Page 2 Clutch alignment (vertical) The vertical angle of the line from the clutch to the winch should not exceed 10 degrees. To reduce the angle either increase the distance between the clutch and the winch or raise and angle the clutch using a pad made from teak or nylon.
  • Page 3 Use 6mm (1/4”) Counter sunk stainless steel fastening, full nuts and penny washers to secure An Anti corrosive jointing compound (Duralac or Tef-Gel) is required between the counter sunk screws and the aluminium base of the clutch. Apply silicon polysulphide sealant to the holes, the base of the clutch and between the deck and the base to ensure a watertight seal etc.
