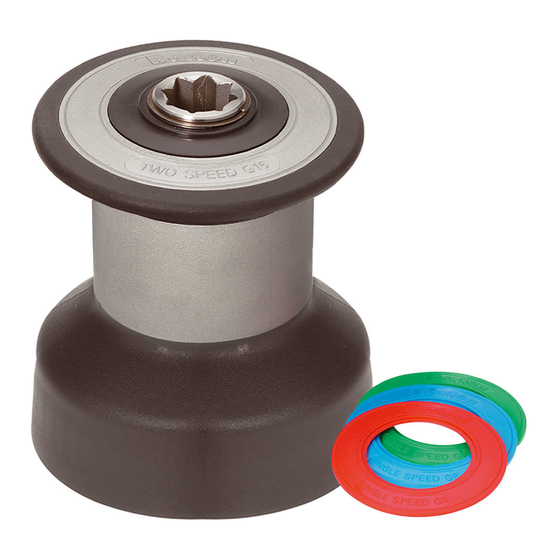

FITTING YOUR NAUTILUS WINCH – Models G8, G16 and G23

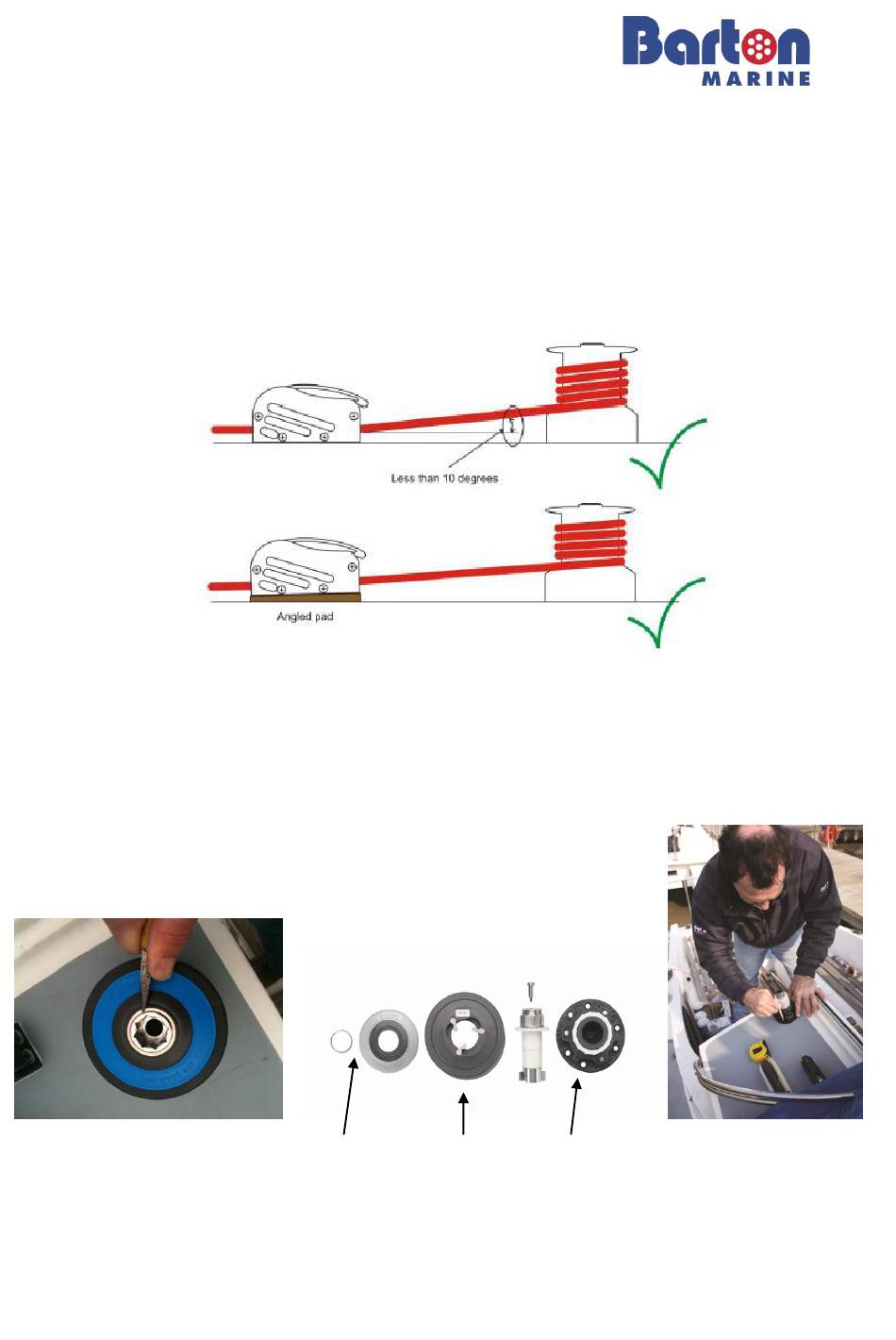

Take a few moments to determine the correct siting of the winch. To avoid riding turns, the
sheet should lead up on to the drum at an angle of 5 – 10 degrees. If using a rope clutch in
conjunction with the winch, be sure to site a minimum of 200mm apart. Use the support plate
as a template for drilling fixing positions and subsequently as a support plate beneath the
deck, coaming or coachroof.
To affix, undo the spiral circlip on top of the winch and slide off the drum with top washer, this
will expose the base plate through which six M6 countersunk bolts (not supplied) of the
required length are inserted.
Circlip removal
Spiral clip
Drum
Base plate
Marking bolt holes
Advertisement
Table of Contents
Related Manuals for Barton G8
Summary of Contents for Barton G8
- Page 1 FITTING YOUR NAUTILUS WINCH – Models G8, G16 and G23 Take a few moments to determine the correct siting of the winch. To avoid riding turns, the sheet should lead up on to the drum at an angle of 5 – 10 degrees. If using a rope clutch in conjunction with the winch, be sure to site a minimum of 200mm apart.
- Page 2 You can also purchase a service pack for each of the winches – part #21210 for the G8 winch, part #21211 for the G16 winch and part #21212 for the G23 winch, all available through your local Barton dealer.
