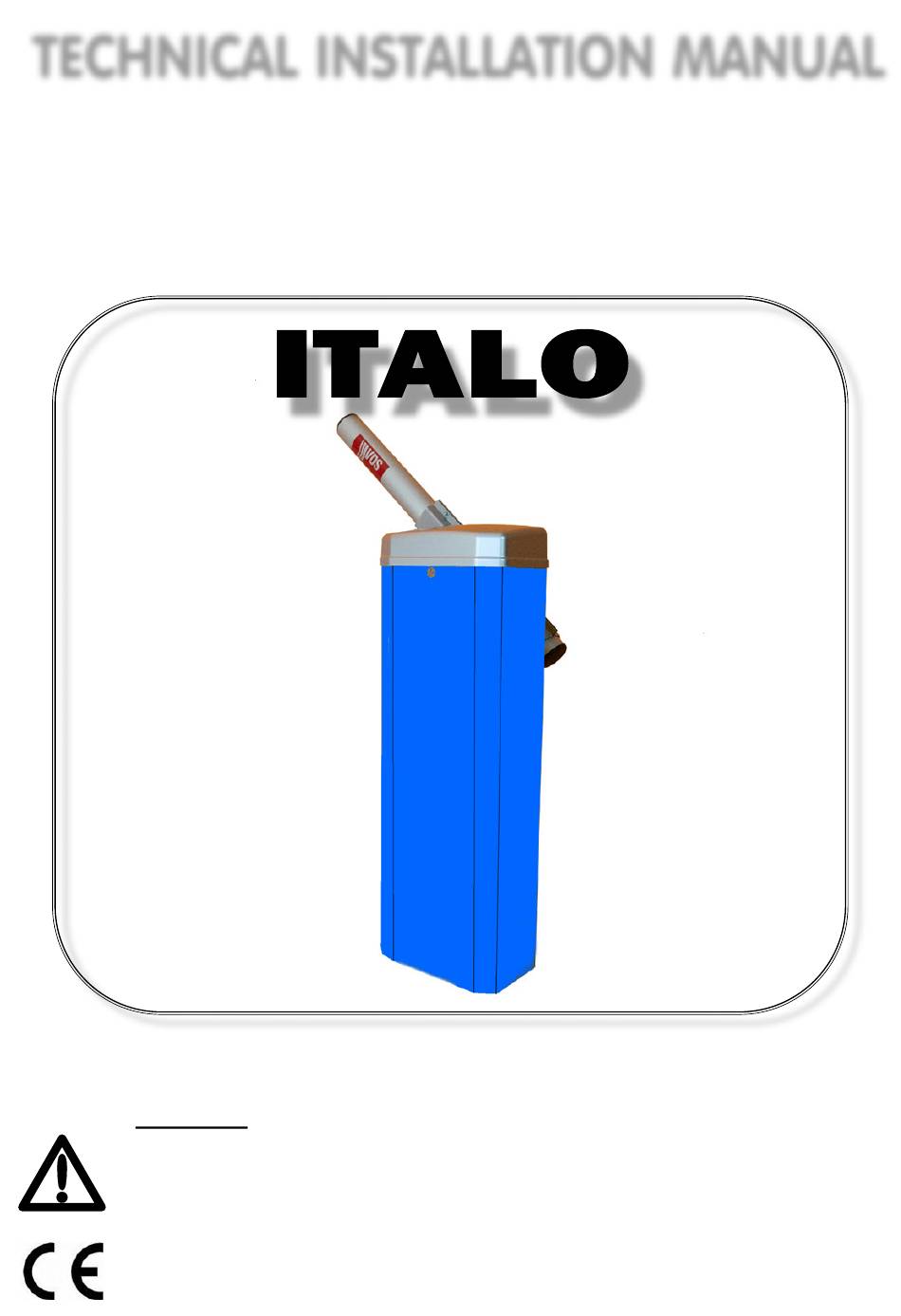

TECHNICAL INSTALLATION MANUAL
AUTOMATION
FOR BARRIERS
WARNING!! Before installing, thoroughly read this manual that is an integral
part of the pack
Our products if installed by qualified personnel capable to evaluate risks,
comply with norms UNI EN 12453, EN 12445
The CE mark conforms to European directive
EEC 89/336 + 92/31 + 93/68 D.L. 04/12/1992 N. 476.
Advertisement
Related Manuals for vds ITALO
Summary of Contents for vds ITALO
- Page 1 TECHNICAL INSTALLATION MANUAL AUTOMATION FOR BARRIERS WARNING!! Before installing, thoroughly read this manual that is an integral part of the pack Our products if installed by qualified personnel capable to evaluate risks, comply with norms UNI EN 12453, EN 12445 The CE mark conforms to European directive EEC 89/336 + 92/31 + 93/68 D.L.
-
Page 2: Table Of Contents
Pag. PACKING CONTENTS ..............TECHNICAL DATA................DIMENSIONS ..................CONSIDERATIONS FOR INSTALLATION......... INSTALLATION................... 4-5-6-7 TROUBLESHOOTING................ SAFETY PRECAUTIONS ..............PACKING CONTENTS 1- BARRIER 1- BAR SUPPORT TECHNICAL DATA 230V 3 mt Maximum length of bar 230Vac Motors power supply 250 W Motor power 1400 Motor RPM 16 µF... -
Page 3: Dimensions
DIMENSIONS CONSIDERATIONS FOR INSTALLATION Ÿ The installation and testing operations must be performed by qualified personnel in order to guarantee the proper and safe operation of the automatic gate. Ÿ The company declines any responsibility for damage caused by incorrect installations due to incompetence and/or negligence. -
Page 4: Installation
INSTALLATION Set up an electrical multi-duct conduit in the middle of the foundation of the barrier, corresponding to the central hole (corrugated - diameter 25 - 50mm). INSTALLATION WITH BASE PLATE (OPTIONAL) Take the floor plate and bend the brackets as needed. Dig a suitably sized hole in the ground. - Page 5 MANUAL OPENING Insert the key and open the cover. Rotate the monopole located under the motor until reaching the desired opening. Note: When you open the cover, the automation blocks. Monopole SHAFT SUPPORT Shaft Insert the bar support on the shaft and fasten it with screws Insert the bar in the support...
- Page 6 OPENING DIRECTION To change the opening direction of the automation from the left (standard) to the right proceed as follows: Sprin - Discharge the spring tension - Unhook the spring - Unhook the arm - Reverse the position of the spring with the arm - Hook again and tighten everything - Invert the position of the key from position A to B of the output shaft.
- Page 7 SPRING REGULATION Tightening nuts Ÿ Unhook the arm Spring Ÿ Put on tension the spring by acting on adjustment the adjusting nuts, until the rod remains balanced at about 45° Ÿ Hook again the arm Lower nuts Spring adjustment LIMIT SWITCHES REGULATIONS Microswitch It’s possible to adjust the limit switches electric limit...
-
Page 8: Troubleshooting
TROUBLESHOOTING SOLUTION PROBLEM PROBABLE CAUSE 230 volt mains voltage Check master switch absent Check for any STOP selectors or commands. Emergency STOP present If not used, check On giving a command with jumper on STOP contact the remote input on the control board control or with the key-switch, the barrier Replace with one of same... - Page 9 NOTE...
- Page 10 NOTE...
- Page 11 NOTE...
-
Page 12: Safety Precautions
Failure to adhere to the above indications may be dangerous. The data and images are for guidance only VDS reserves the right to change at any time characteristics of the products described in its sole discretion, without notice. Via Circolare p.i.p. N° 10 65010 Santa Teresa di Spoltore (PE) - ITALY Tel.
