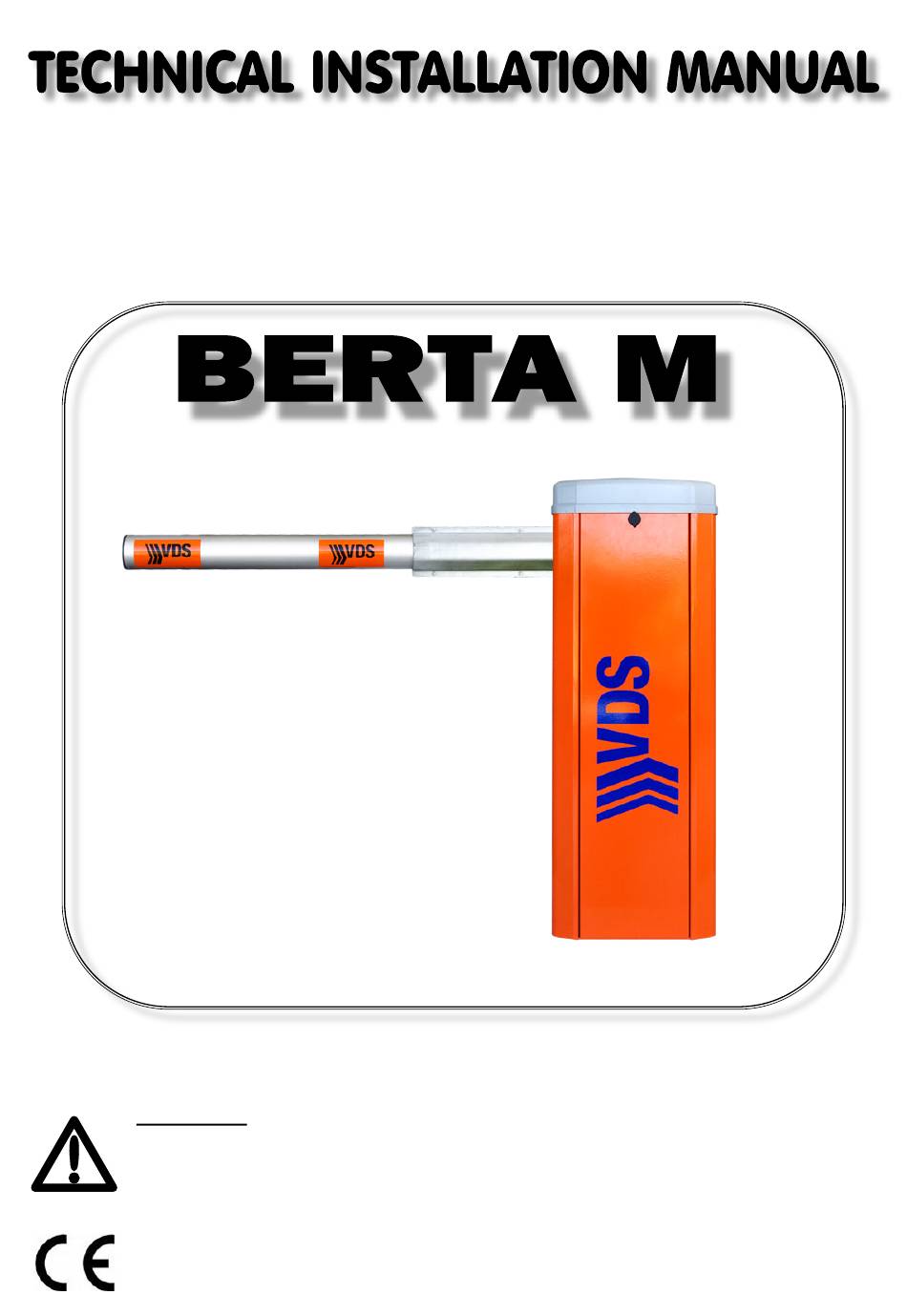

AUTOMATION
FOR BARRIERS
WARNING!! Before installing, thoroughly read this manual that is an integral
part of the pack
Our products if installed by qualified personnel capable to evaluate risks,
comply with norms UNI EN 12453, EN 12445
The CE mark conforms to European directive
EEC 89/336 + 92/31 + 93/68 D.L. 04/12/1992 N. 476.
Advertisement
Table of Contents
Related Manuals for vds BERTA M
Summary of Contents for vds BERTA M
- Page 1 AUTOMATION FOR BARRIERS WARNING!! Before installing, thoroughly read this manual that is an integral part of the pack Our products if installed by qualified personnel capable to evaluate risks, comply with norms UNI EN 12453, EN 12445 The CE mark conforms to European directive EEC 89/336 + 92/31 + 93/68 D.L.
- Page 2 PACKING CONTENTS ............... DIMENSIONS ..................CONSIDERATIONS FOR INSTALLATION.......... INSTALLATION..................4-5-6 SAFETY PRECAUTIONS ..............PACKING CONTENTS 1- BARRIER 1- BAR SUPPORT...
- Page 3 DIMENSIONS CONSIDERATIONS FOR INSTALLATION Ÿ The installation and testing operations must be performed by qualified personnel in order to guarantee the proper and safe operation of the automatic gate. Ÿ The company declines any responsibility for damage caused by incorrect installations due to incompetence and/or negligence.
- Page 4 INSTALLATION INSTALLATION WITH BASE PLATE (OPTIONAL) Take the floor plate and bend the brackets as needed. Dig a suitably sized hole in the ground. Insert the electrical conduit into the cable conduit hole of the floor plate. Level and cement the floor plate. Nuts Place the barrier on the floor plate and fasten it with the...
- Page 5 OPENING DIRECTION To change the direction of opening from the left (standard) to the right proceed as follows: Ÿ Unhook the spring. Ÿ Reverse the position of the spring from right to left. Ÿ Hang up and tighten everything. Ÿ Reverse the position of the key from place A to B of the output shaft. Ÿ...
- Page 6 SPRING REGULATION Trapezoidal bracket Ÿ Acting on the lower tie nut, put the spring in tension until the rod is balanced at 45° and the trapezoidal bracket will remain Spring adjustment horizontal to the ground. holes. Right side The trapezoidal bracket has four holes Ÿ...
- Page 7 SAFETY PRECAUTIONS These warnings are an essential, integral part of the product and must be given to the user. They provide important indications on the installation, use and maintenance and must be read carefully. This form must be preserved and passed on to subsequent users of the system. The incorrect installation or improper use of the product may be dangerous.
- Page 8 The data and images are for guidance only VDS reserves the right to change at any time characteristics of the products described in its sole discretion, without notice. Via Circolare p.i.p. N° 10 65010 Santa Teresa di Spoltore (PE) - ITALY Tel.
